Installation Procedure

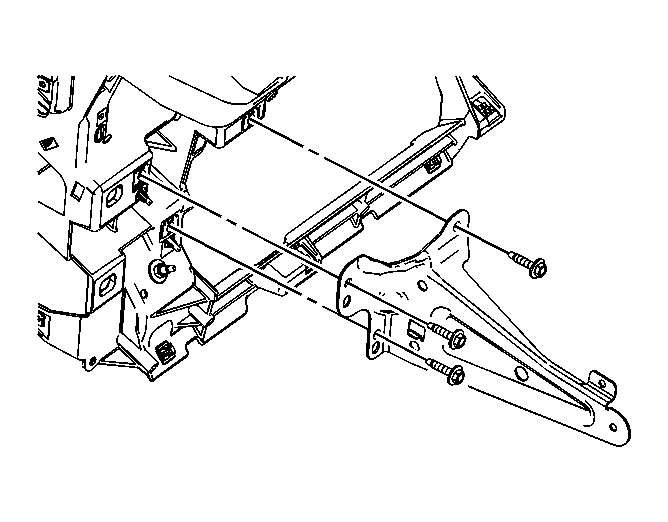

- Install the OnStar module bracket.
- Tighten the OnStar bracket bolts.
Tighten: Tighten the bolts to 10 N.m (89 lb in).
- Install the communication interface module. Refer to Communication Interface Module Replacement .
- Install the right closeout panel. Refer to Closeout/Insulator Panel Replacement - Right in Instrument Panel, Gages and Console.
