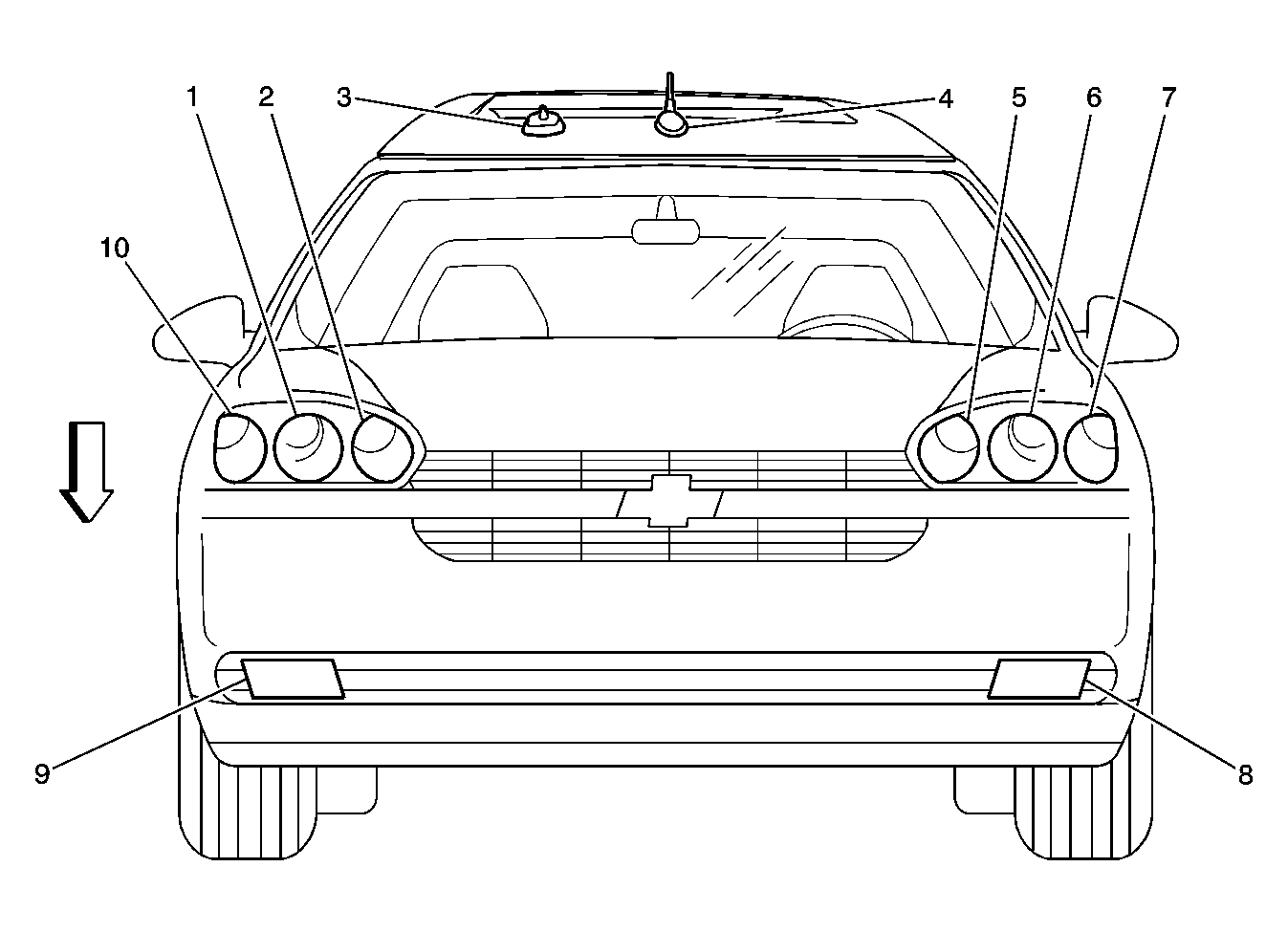

Fig 1: Front Of Vehicle Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Low Beam - Right
2	Headlamp - High Beam - Right
3	Digital Radio Antenna (U2K)
4	Cellular and Navigation Antenna (UE1)
5	Headlamp - High Beam - Left
6	Headlamp - Low Beam - Left
7	Park/Turn Signal/DRL Lamp - LF
8	Fog Lamp - LF (T96)
9	Fog Lamp - RF (T96)
10	Park/Turn Signal/DRL Lamp - RF

Fig 2: Forward Overhead View Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy/Reading Lamps - Front, Left Reading
2	Cellular Telephone Microphone (UE1)
3	Sunroof Switch (CF5)
4	Garage Door Opener Transmitter (UG1)
5	Courtesy/Reading Lamps - Front, Right Reading
6	Dome/Reading Lamp
7	Sunroof (CF5)
8	Vanity Mirror Lamp - Right
9	Inside Rearview Mirror
10	OnStar Keypad (UE1)
11	Vanity Mirror Lamp - Left

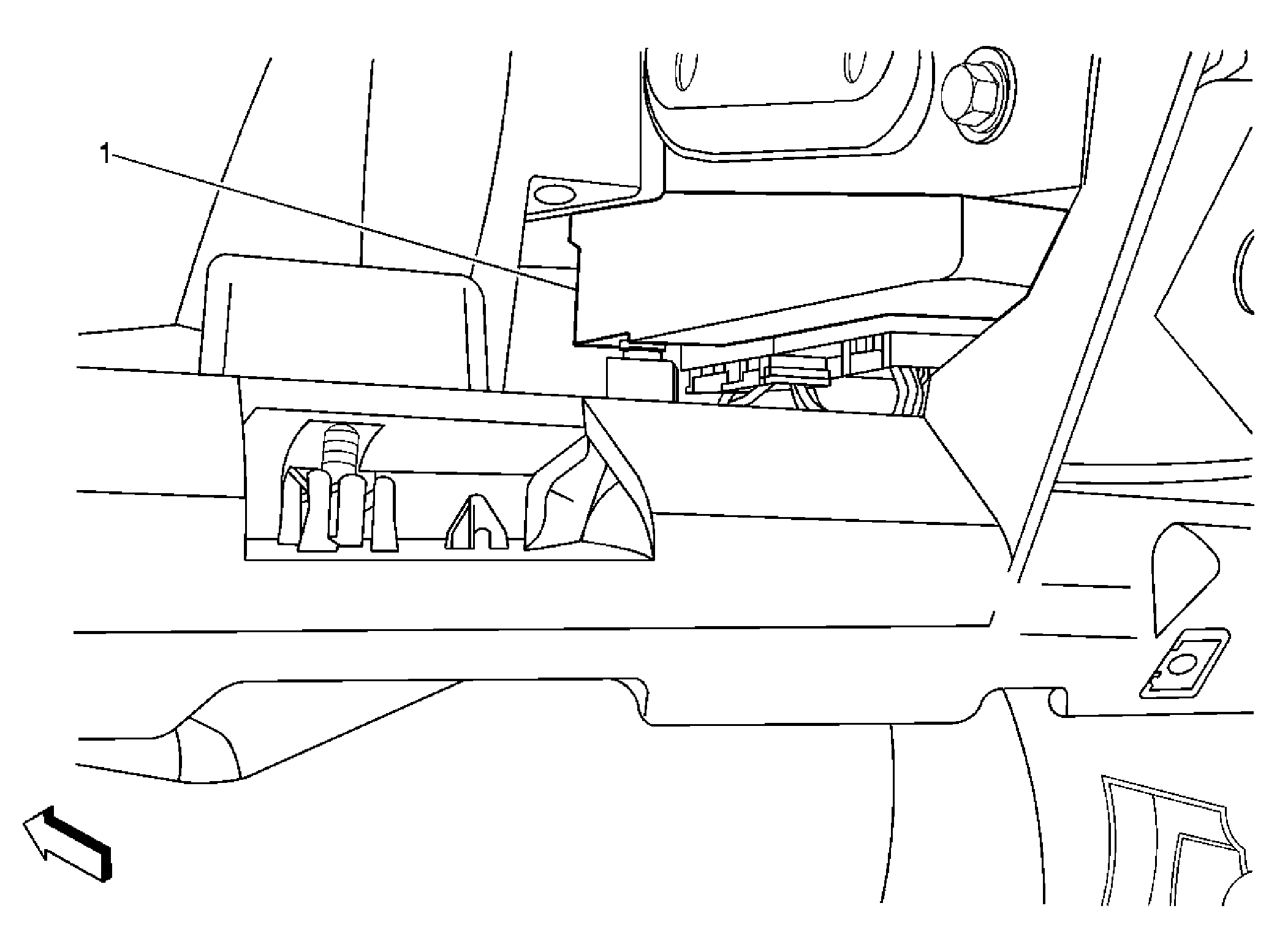

Fig 3: Behind Right Side of Instrument Panel Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vehicle Communication Interface Module (VCIM)(UE1)
