Installation Procedure
- Install a new gasket, if necessary.
- Install the throttle body assembly.
- Install the throttle body nuts and the bolts.
Tighten: Tighten the nuts and the bolts to 10 N.m (89 lb in).
- Install the heater inlet pipe. Refer to Heater Hose/Pipe Replacement - Inlet/Outlet in Heating, Ventilation and Air Conditioning.
- Install the heater pipe nut to the throttle body.
Tighten: Tighten the nut to 25 N.m (18 lb ft).

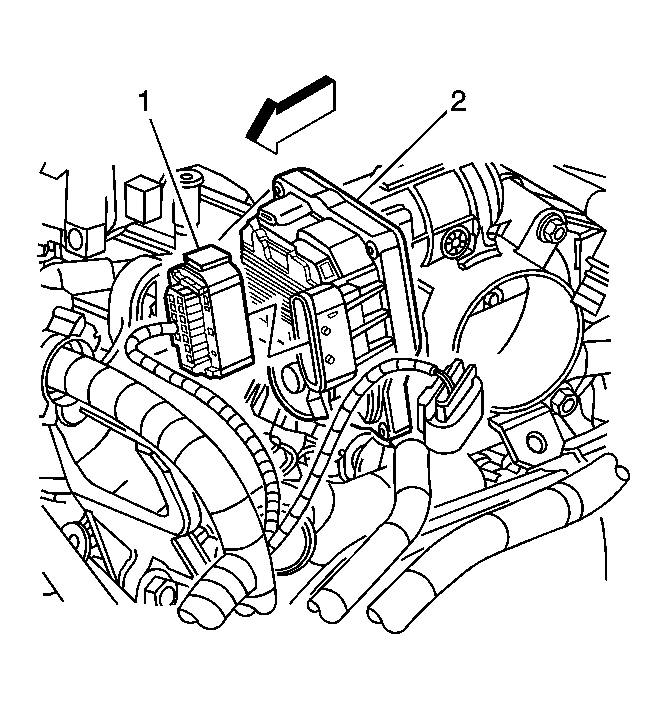

- Connect the ETC electrical connector (1) to the throttle body (2).
- Install the air cleaner intake duct. Refer to Air Cleaner Intake Duct Replacement .
