2005 Saturn Relay AWDFACTORY OEM SERVICE PROCEDURE

Accessory AC/DC Power Control Module C2 (KC7)

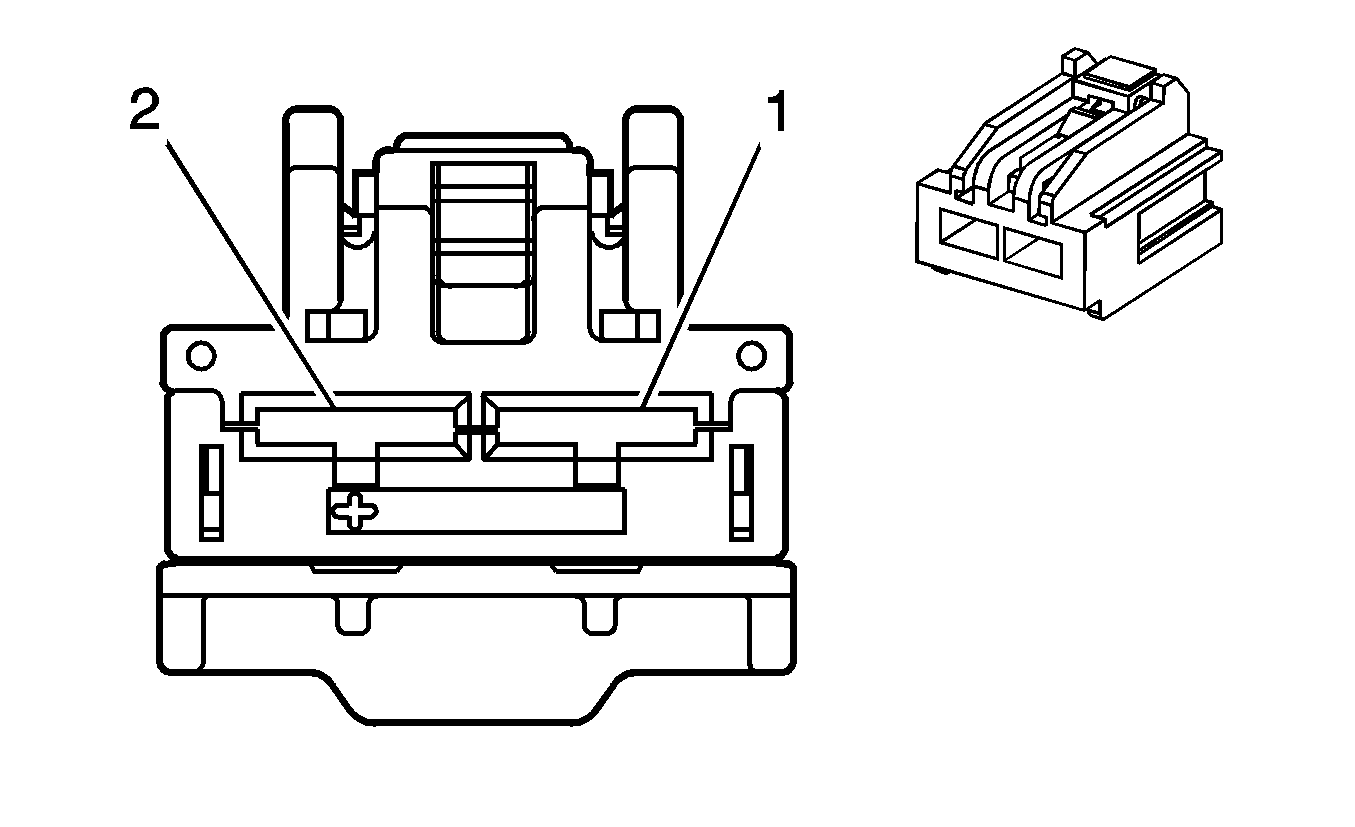

Fig 1: Accessory AC/DC Power Control Module C2 (KC7) Connector End View

Courtesy of GENERAL MOTORS CORP.

Power Outlet Connector End Views

Connector Part Information

OEM: 15473590
Service: 88987988
Description: 2-Way F Receptacle 6.3 (BK)

Terminal Part Information

Terminal: 7116-4122-02/Tray 10
Core/Insulation Crimp: D/G
Release Tool/Test Probe: 12094430/J-35616-42

Accessory AC/DC Power Control Module C2 (KC7)

Pin	Wire Color	Circuit No.	Function
1	BK	1750	Ground
2	BK/RD	1342	Battery Positive Voltage
