2005 Saturn Relay AWDFACTORY OEM SERVICE PROCEDURE
Installation Procedure

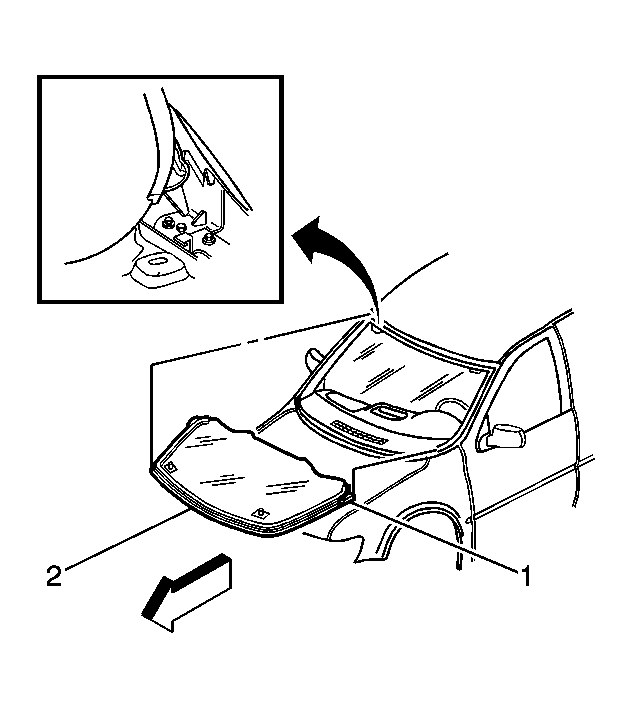

- Install a stationary window into the opening. Refer to Urethane Adhesive Installation of Stationary Windows .
- Install the windshield garnish moldings. Refer to Garnish Molding Replacement - Windshield Pillar in Interior Trim.
- Install the rearview mirror. Refer to Rearview Mirror Replacement .
- Install the air inlet grille. Refer to Air Inlet Grille Panel Replacement (Chevrolet) or Air Inlet Grille Panel Replacement (Pontiac) or Air Inlet Grille Panel Replacement (Buick) in Body Front End.
- Install the windshield wiper arms. Refer to Wiper Arm Replacement (Driver Side) or Wiper Arm Replacement (Passenger Side) in Wipers/Washer Systems.
- Remove the double layer of masking tape from around the perimeter of the painted surfaces and the interior trim.
- Close the hood.
