2005 Saturn Relay AWDFACTORY OEM SERVICE PROCEDURE

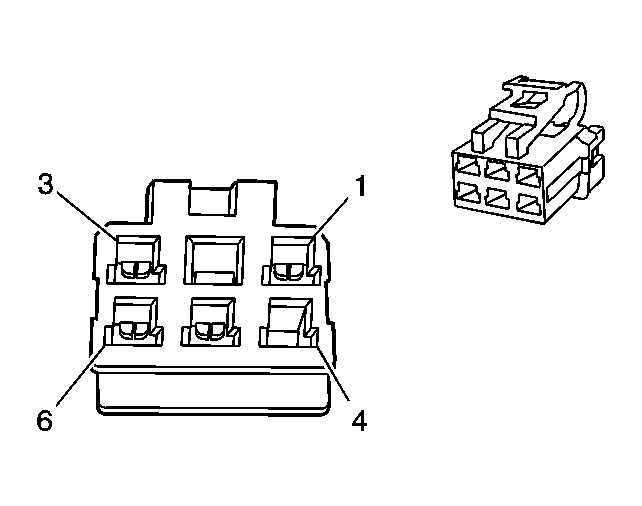

Sit-N-Lift Seat Remote Connector End View (AQW)
Power Seat Systems Connector End Views
Connector Part Information
|
Terminal Part Information
|
Sit-N-Lift Seat Remote (AQW)
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1 | GN | AR01 | Hand Held Remote Supply Voltage |
| 2 | - | - | Not Used |
| 3 | RD/YE | AS30 | Hand Held Remote Down Switch Signal |
| 4 | RD/BK | AS29 | Hand Held Remote Up Switch Signal |
| 5 | BK | AE11 | Ground |
| 6 | - | - | Not Used |
