2005 Saturn Relay AWDFACTORY OEM SERVICE PROCEDURE

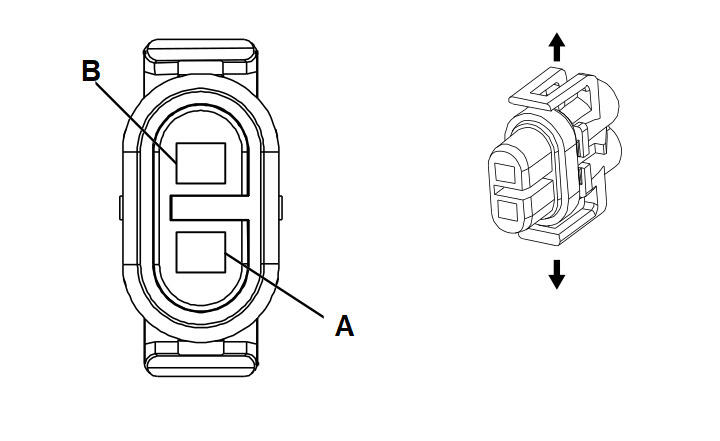

Headlamp Connector End View - Low Beam - Right
Lighting Systems Connector End Views
Connector Part Information
|
Terminal Part Information
|
Headlamp - Low Beam - Right
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| A | BK | - | Right Headlamp Low Beam Supply Voltage |
| B | BK | - | Ground |
