2005 Saturn Relay AWDFACTORY OEM SERVICE PROCEDURE

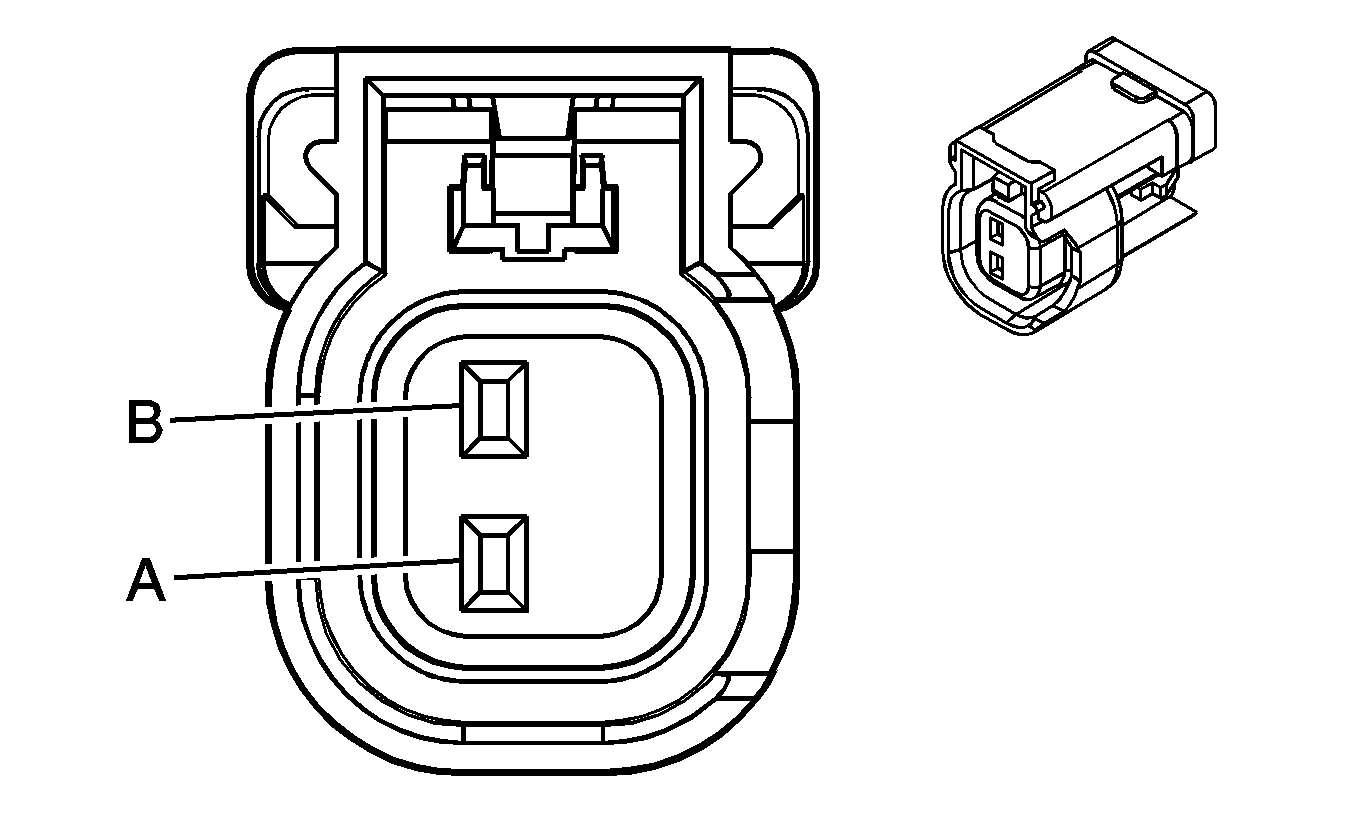

Fuel Injector 1 Connector End View
Engine Controls Connector End Views
Connector Part Information
|
Terminal Part Information
|
Fuel Injector 1
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| A | PK | 639 | Ignition 1 Voltage |
| B | BK | 1744 | Fuel Injector 1 Control |
