AC/DC Power Outlet Control Module Replacement

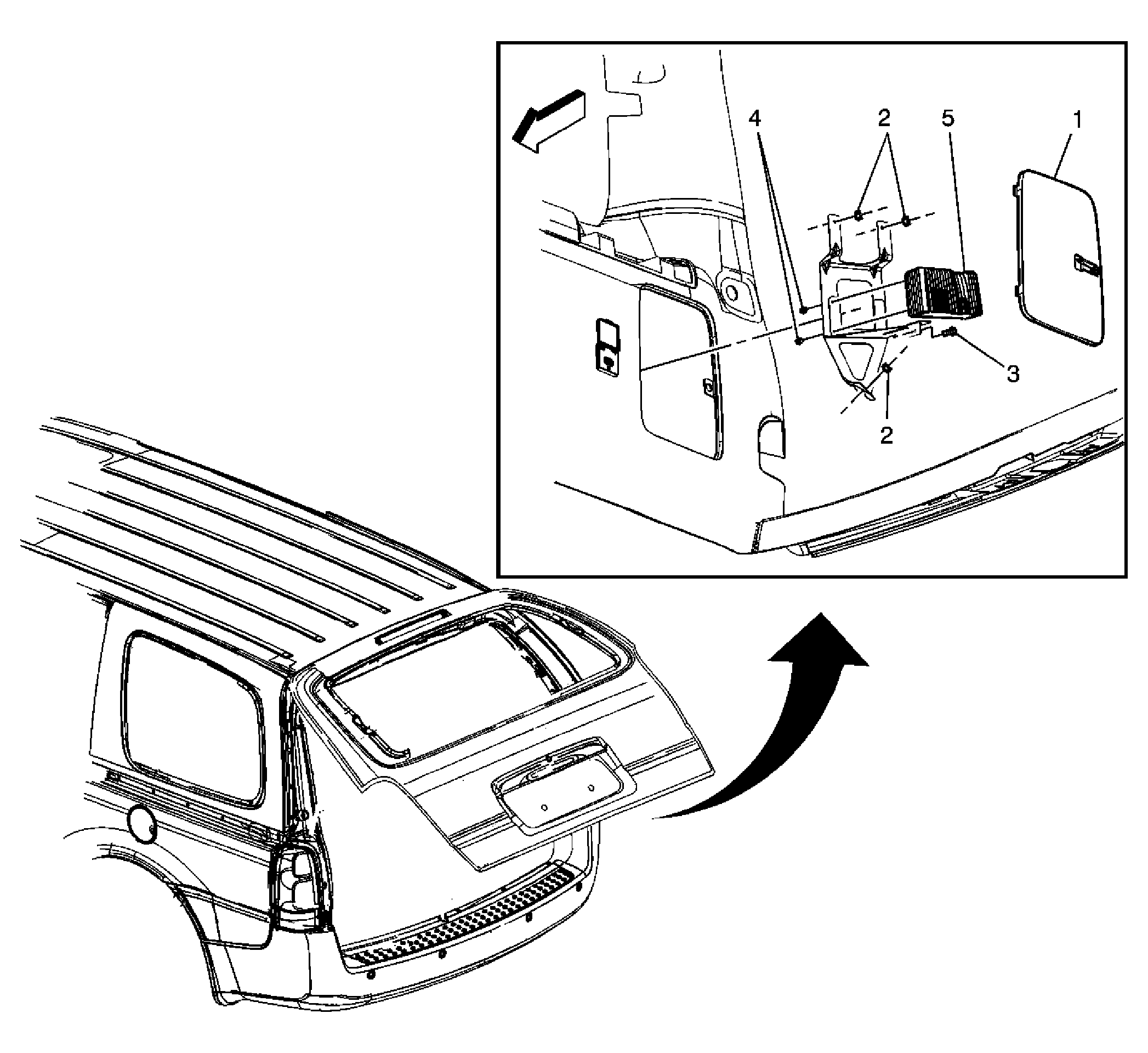

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Panel, Accessory Trim. Refer to Accessory Panel Replacement - Rear . |
| 2 | Nut, AC/DC Power Outlet Control Module Bracket (Qty: 3) Tighten: 10 N.m (89 lb in) |
| 3 | Bolt/Screw, AC/DC Power Outlet Control Module Bracket (Qty: 1) Tighten: 10 N.m (89 lb in) |
| 4 | Bolt/Screw, AC/DC Power Outlet Control Module (Qty: 1) Tighten: 2.5 N.m (23 lb in) |
| 5 | Module, AC/DC Power Outlet Control Tip: Disconnect the electrical connectors. |
