2005 Saturn Relay AWDFACTORY OEM SERVICE PROCEDURE

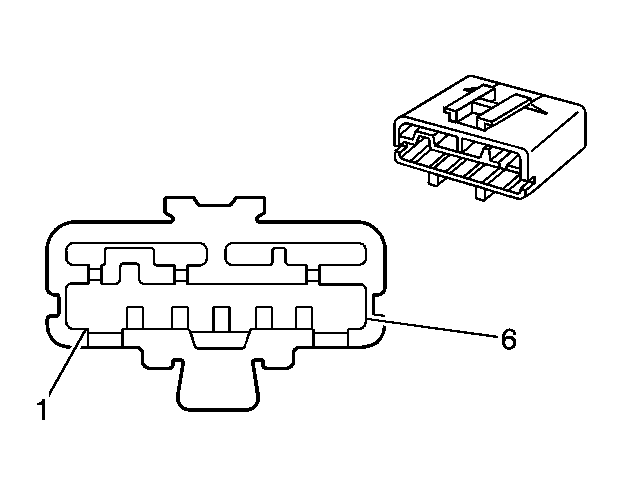

Splice Pack SP370 Connector End View (AQW)
Splice Pack Connector End Views
Connector Part Information
|
Terminal Part Information
|
Splice Pack SP370 (AQW)
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1 | BK | AE11 | Ground |
| 2 | BK | AE12 | Ground |
| 3 | BK | ASE4 | Ground |
| 4 | BK | AE13 | Ground |
| 5 | - | - | Not Used |
| 6 | BK | ASE0 | Ground |
