2005 Saturn Relay AWDFACTORY OEM SERVICE PROCEDURE

Seat Adjuster Switch Connector End View - Driver (AG1)

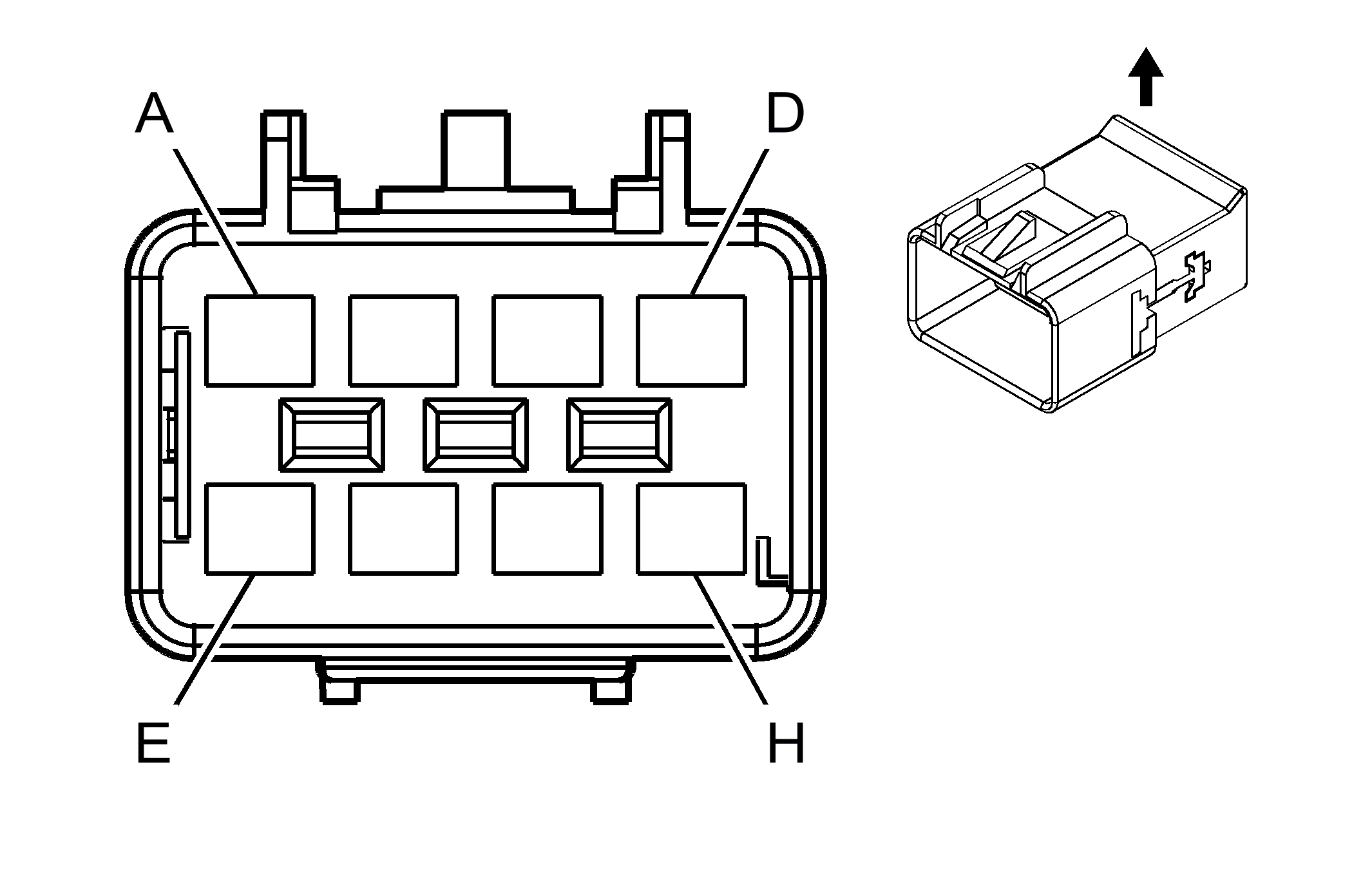

Fig 1: Seat Adjuster Switch Connector End View
GM542307Courtesy of GENERAL MOTORS CORP.
Power Seat Systems Connector End Views

Connector Part Information
  • OEM: 15326928
  • Service: 15306176
  • Description: 8-Way M GT 280 Series (BK)
Terminal Part Information
  • Terminal: 15304724/Tray 8
  • Core/Insulation Crimp: C/D
  • Release Tool/Test Probe: 15315247/J-35616-5
Seat Adjuster Switch - Driver (AG1)

Pin Wire Color Circuit No. Function
A RD/WH 1140 Battery Positive Voltage
B YE 282 Driver Power Seat Rear Vertical Motor Up Control
C L-BU 283 Driver Power Seat Rear Vertical Motor Down Control
D L-GN 284 Driver Power Seat Horizontal Motor Rearward Control
E TN 285 Driver Power Seat Horizontal Motor Forward Control
F D-GN 286 Driver Power Seat Front Vertical Motor Up Control
G D-BU 287 Driver Power Seat Front Vertical Motor Down Control
H BK 650 Ground
