2005 Saturn Relay AWDFACTORY OEM SERVICE PROCEDURE

Fuse Block Connector End View - Underhood C3

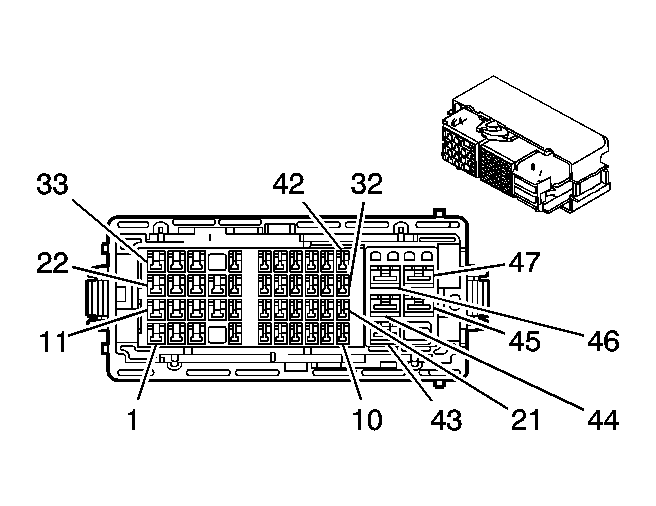

Fig 1: Identifying Fuse Block - Underhood C3
GM1538764Courtesy of GENERAL MOTORS CORP.
Electrical Center Identification Views

Connector Part Information
  • OEM: 15486516
  • Service: See Catalog
  • Description: 47-Way F Receptacle 1.5, 2.8, 6.3 (NA)
Terminal Part Information
  • Pins:
  • Terminal:
  • Core/Insulation Crimp:
  • Release Tool/Test Probe:
  • Pins:
  • Terminal:
  • Core/Insulation Crimp:
  • Release Tool/Test Probe:
  • Pins:
  • Terminal:
  • Core/Insulation Crimp:
  • Release Tool/Test Probe:
Fuse Block - Underhood C3

Pin Wire Color Circuit No. Function
1-12 - - Not Used
13 D-GN 29 Horn Control
14-19 - - Not Used
20 L-GN/BK 311 Right Headlamp High Beam Supply Voltage
21 - - Not Used
22 BN 9 Park Lamp Supply Voltage
BN 9 Park Lamp Supply Voltage
23-30 - - Not Used
31 D-GN/WH 711 Left Headlamp High Beam Supply Voltage
32 - - Not Used
33 BN 9 Park Lamp Supply Voltage
BN 9 Park Lamp Supply Voltage
34-35 - - Not Used
36 YE 712 Left Headlamp Low Beam Supply Voltage
37 TN/WH 312 Right Headlamp Low Beam Supply Voltage
38-39 - - Not Used
40 L-BU/WH 1314 Left Front Turn Signal Lamp Supply Voltage
41 D-BU/WH 1315 Right Front Turn Signal Lamp Supply Voltage
42 PK/BK 109 Hood Ajar Switch Signal (AP3)
43 - - Not Used
44 WH 504 Left Cooling Fan Motor Supply Voltage
45 L-BU 409 Right Cooling Fan Motor Supply Voltage
46 GY 532 Left Cooling Fan Motor Low Control
47 BK 1250 Ground
