2005 Saturn Relay AWDFACTORY OEM SERVICE PROCEDURE

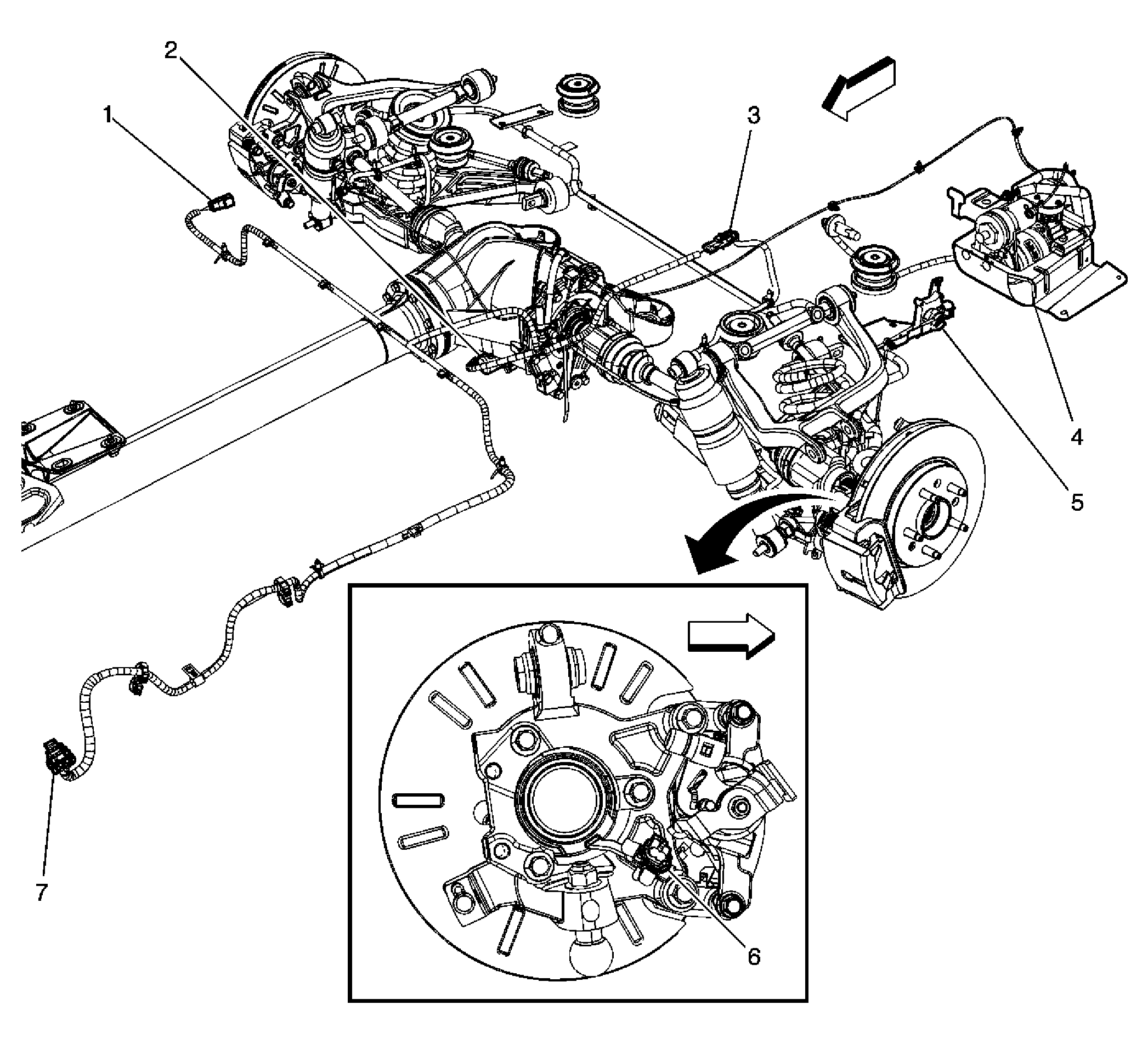

Rear Axle Component Views
| Callout | Component Name |
|---|---|
| 1 | C306 RR Wheel Speed Sensor Harness to Rear Cross-Car Jumper Harness |
| 2 | Differential Clutch Pump Actuator Check Valve (M76) |
| 3 | C309 LR Wheel Speed Sensor Harness to Rear Cross-Car Jumper Harness |
| 4 | Automatic Level Control (ALC) Compressor (G67) |
| 5 | Automatic Level Control (ALC) Sensor (G67) |
| 6 | Wheel Speed Sensor (WSS) - LR |
| 7 | C305 Rear Cross-Car Jumper Harness to Body Harness |
