2005 Saturn Relay AWDFACTORY OEM SERVICE PROCEDURE

Removal Procedure

Extend the seat from the vehicle.
Unlock the foot rest and extend the foot rest from the seat base.

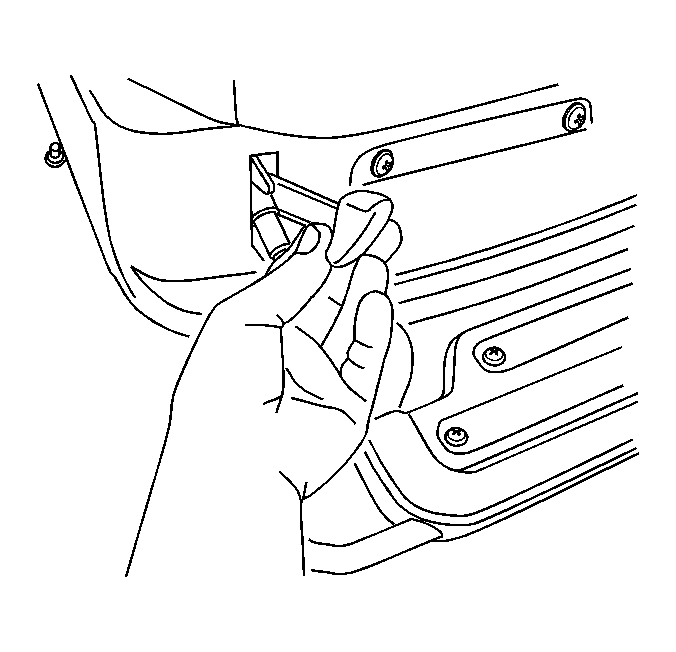

Fig 1: Locating Foot Rest Lock Handle

GM1368555

Courtesy of GENERAL MOTORS CORP.

Remove the foot rest lock handle.

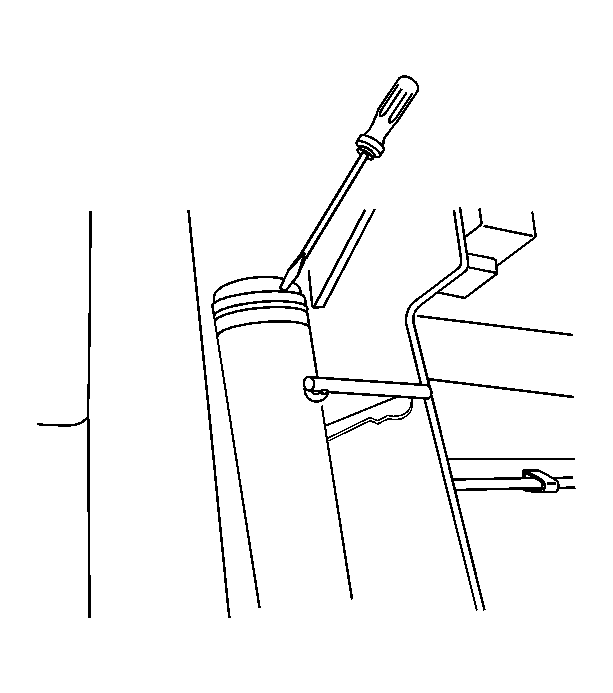

Fig 2: View Of Bolt Cover For Foot Rest Tube

GM1368224

Courtesy of GENERAL MOTORS CORP.

Use a flat-bladed tool to remove the bolt cover from the foot rest tube.

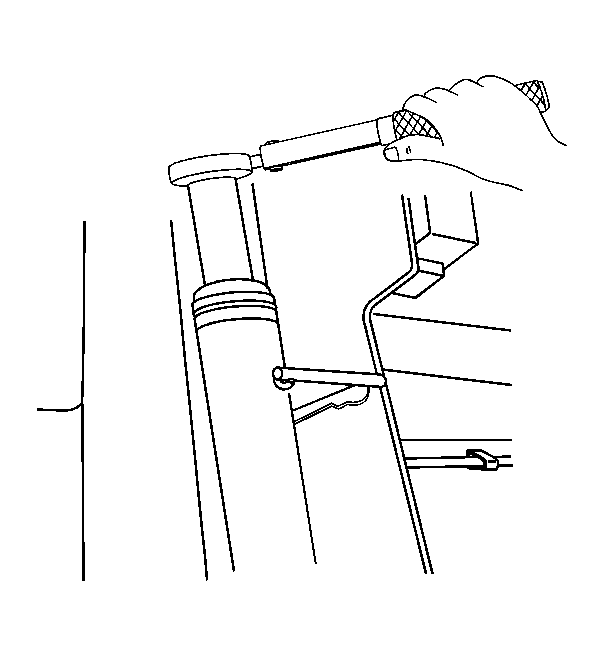

Fig 3: Removing & Installing Bolt For Foot Rest Tube

GM1368237

Courtesy of GENERAL MOTORS CORP.

Remove the bolt from the foot rest tube.

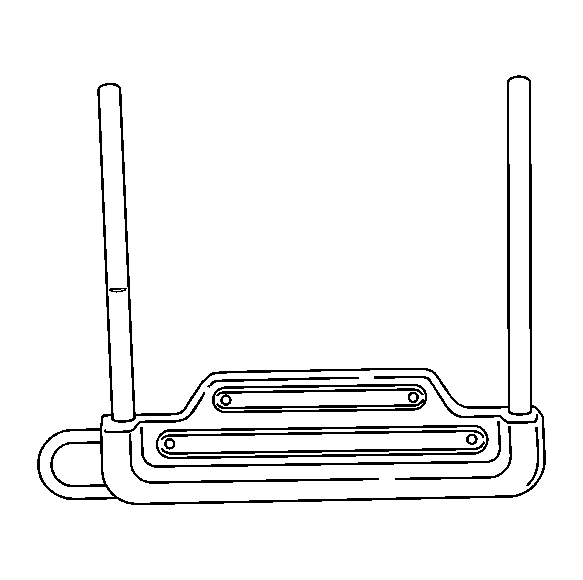

Fig 4: View Of Foot Rest

GM1368268

Courtesy of GENERAL MOTORS CORP.

Remove the foot rest from the seat base.
