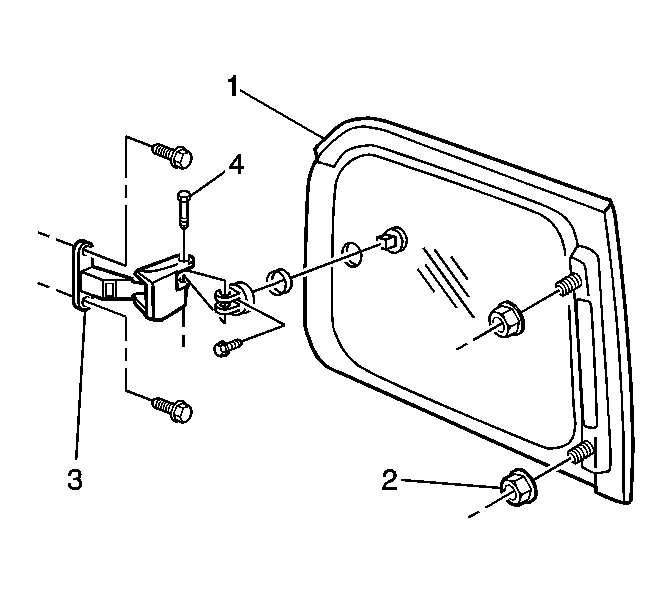

Installation Procedure
- Install the bushings.
- Install the retainers.NOTE: Refer to Fastener Notice in Cautions and Notices.
- Install the bodyside window latch hinge screw to the window.
Tighten: Tighten the screw (2) to 1.6 N.m (1.4 lb in).
- Install the bodyside window in the opening.
- Install the bodyside window hinge nuts (2) to the body.
Tighten: Tighten the nuts (2) to 3.5 N.m (1.6 lb in).
- Use J 34946
or equivalent in order to install the latch hinge pin. See Special Tools .
Install the bodyside window latch hinge pin (4) to the latch (3).
- Inspect the bodyside window for proper operation.
- Close the bodyside window.
- Install the body side rear upper garnish molding. Refer to Trim Panel Replacement - Body Lock Pillar Upper in Interior Trim.
- Install the bodyside window garnish molding. Refer to Finish Panel Replacement - Upper Rear Trim in Interior Trim.
- Remove the masking tape from around the perimeter of the painted surfaces and inner trim of the window.
