2005 Saturn Relay AWDFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Fully open the sliding rear door.

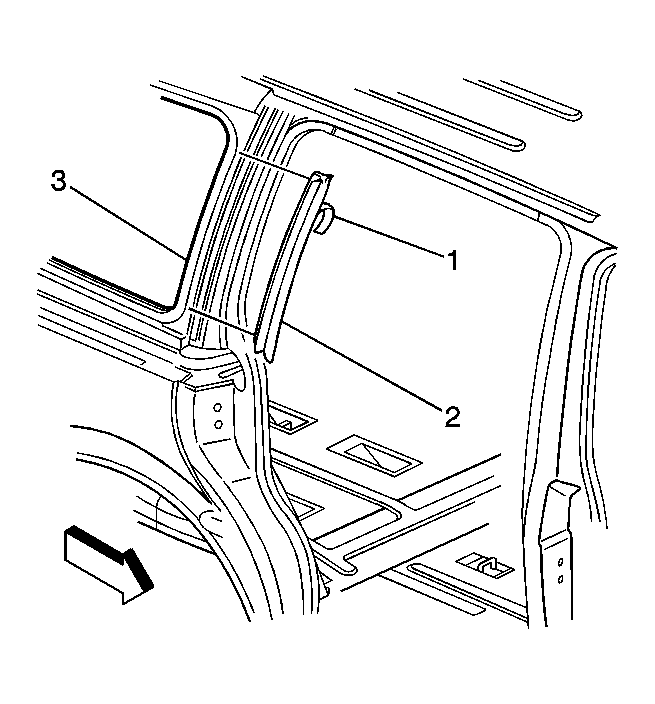

- Use a heat gun in order to heat the sliding door auxiliary weatherstrip (2). Keep the heat gun 150 mm (6 in) from the surface. Use a circular motion while applying heat for about 30 seconds.
- Use a flat-bladed tool in order to peel the sliding door auxiliary weatherstrip from the panel surface. DO NOT damage the paint.
- Use oil-free naphtha or alcohol in order to clean the body panel.
