2005 Saturn Relay AWDFACTORY OEM SERVICE PROCEDURE
Installation Procedure
- Route the antenna extension lead in the vehicle as noted in the removal.

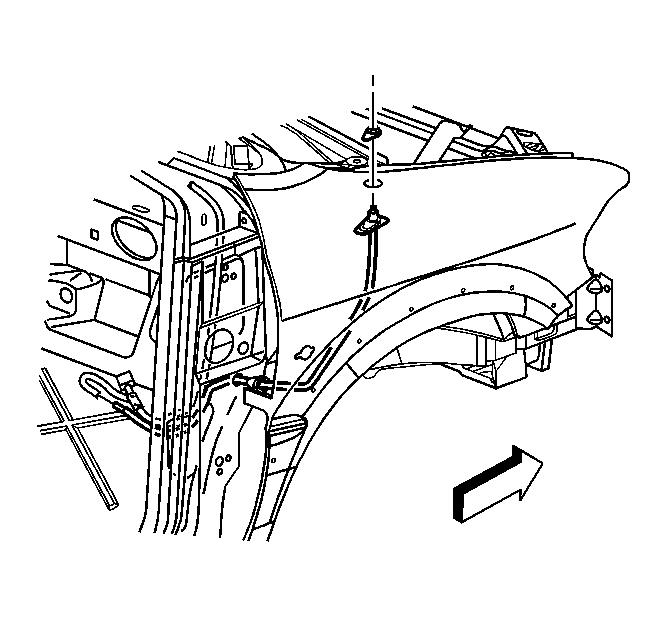

- Connect the antenna cable to the antenna extension lead.
- Install the cowl side trim panel. Refer to Trim Panel Replacement - Cowl Side in Interior Trim.

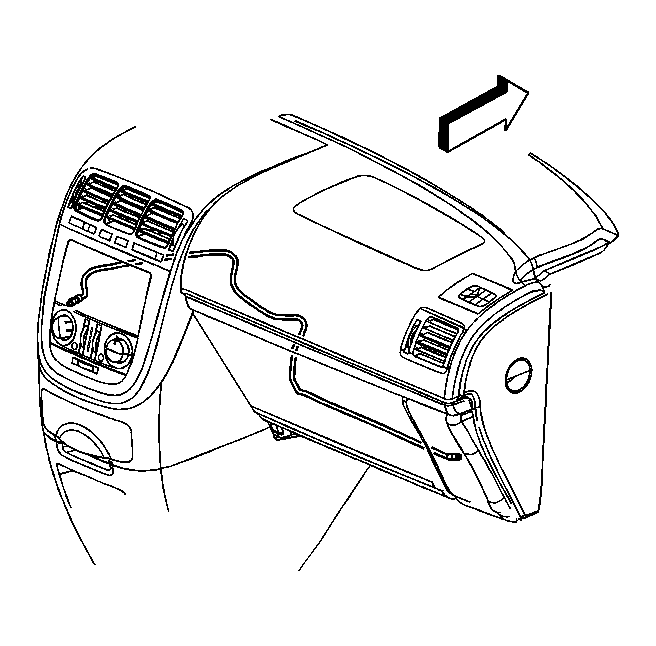

- Connect the antenna extension lead to the radio.
- Install the radio. Refer to Radio Replacement .
- Install the instrument panel insulator. Refer to Knee Bolster, Insulator, Molding Replacement - Instrument Panel in Instrument Panel, Gages, and Console.
