2005 Saturn Relay AWDFACTORY OEM SERVICE PROCEDURE
Installation Procedure

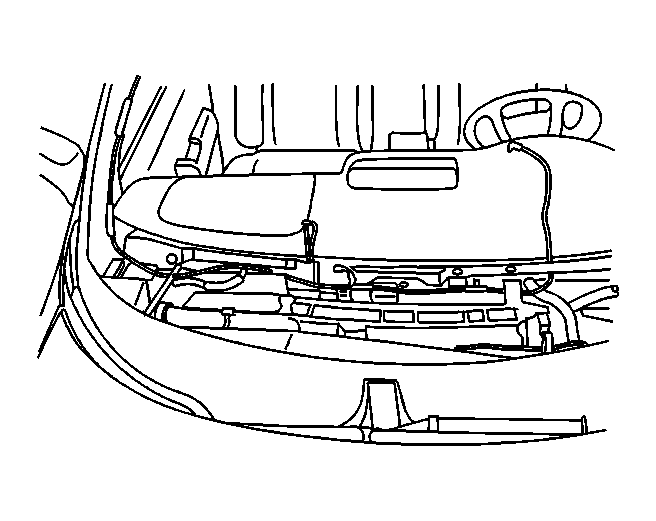

- Install the coaxial cable.

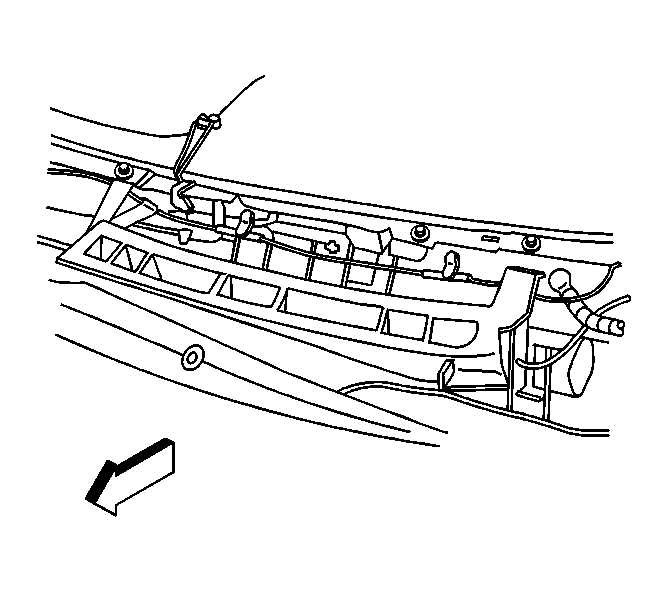

- Install the cable clips to the I/P frame.

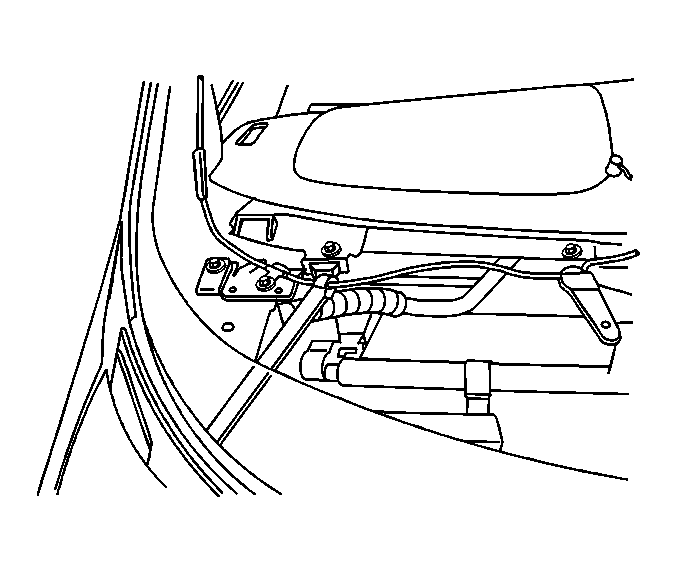

- Install the bolt to the ground tab on the right side on the I/P.
- Install and tighten the coaxial cable to the VIU/VCU module.

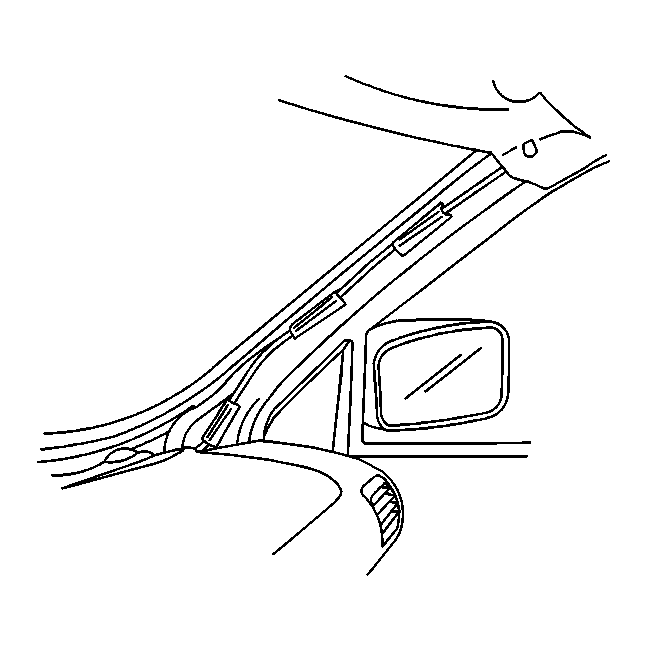

- Retape the cable to the A-pillar.
- Install and tighten the coaxial cable to the cellular antenna on the windshield.
- Install the garnish molding to the right side windshield pillar.
- Install the I/P trim pad. Refer to Upper Trim Pad, Outer Trim Cover, Fuse Block Access Cover Replacement - Instrument Panel in Instrument Panel, Gages, and Console.
