2005 Saturn Relay AWDFACTORY OEM SERVICE PROCEDURE

Computer/Integrating Systems Component Views

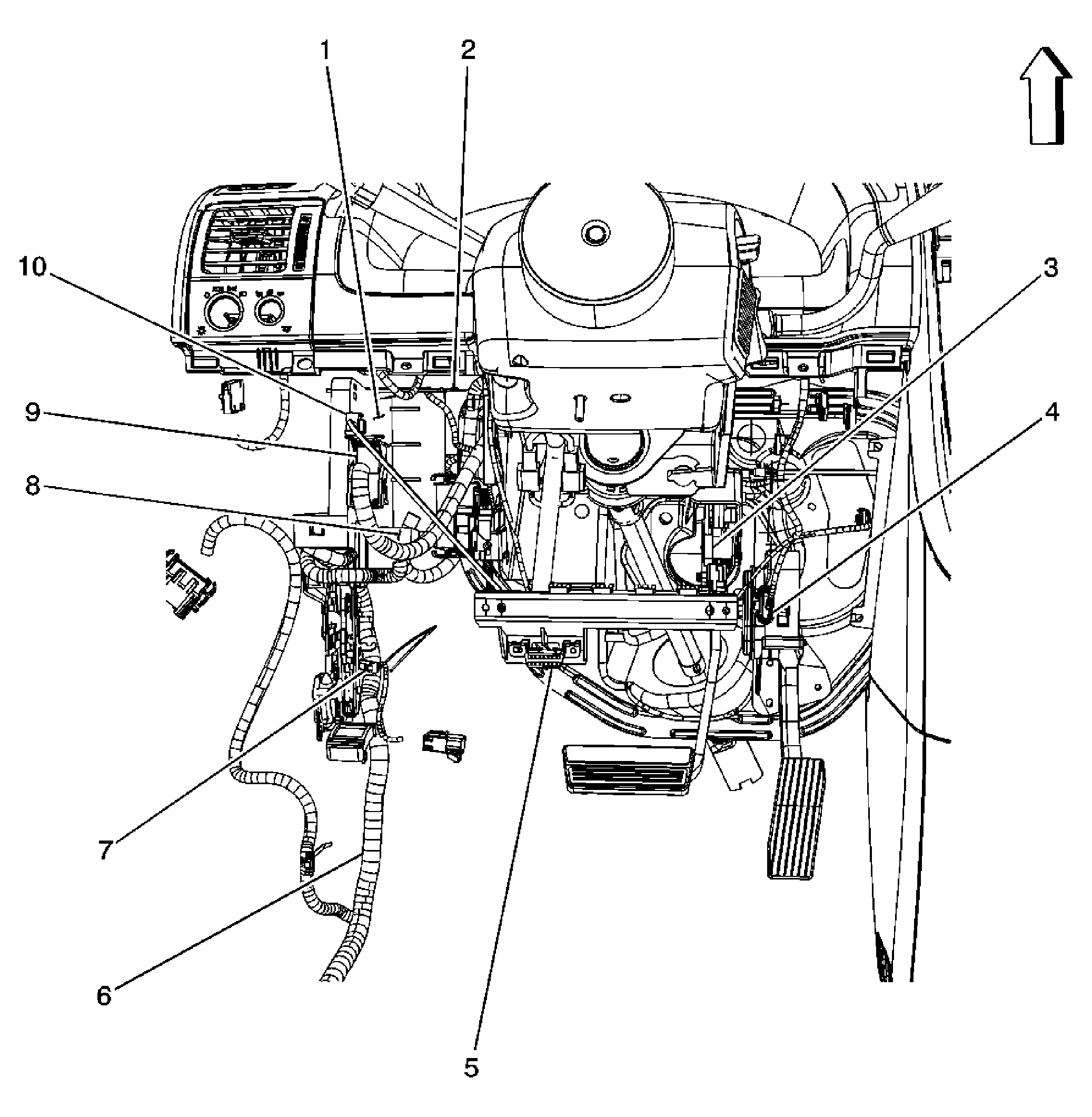

Fig 1: Identifying Left Side Of I/P Components
GM1536063Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Control Module (BCM)
2 G201
3 Brake Pedal Position Sensor
4 Accelerator Pedal Position (APP) Sensor
5 Data Link Connector (DLC)
6 Body Harness
7 Park Brake Switch
8 BCM - C2
9 BCM - C1
10 BCM - C3 (Steering Column Harness)
