2005 Saturn Relay AWDFACTORY OEM SERVICE PROCEDURE

Mirror Face Replacement

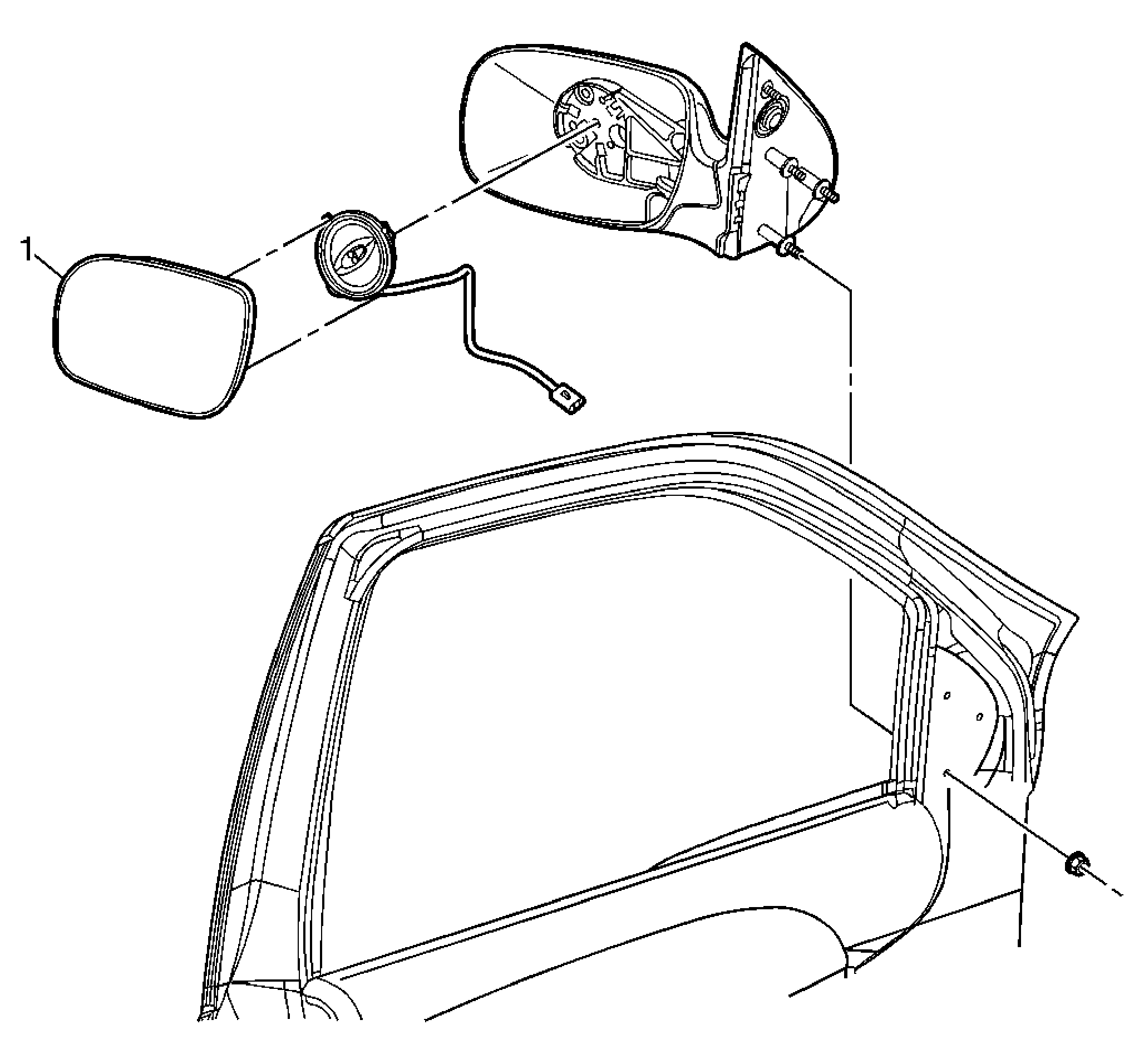

Fig 1: Replacing Mirror Face
GM1582094Courtesy of GENERAL MOTORS CORP.
Mirror Face Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Mirror Glass, Outside Rearview
CAUTION: Refer to Glass and Sheet Metal Handling Caution in Cautions and Notices.

Tip:
  1. Apply masking tape to the top of the outside of the mirror housing to prevent damage.
  2. Push the mirror face inward at the bottom until full travel is reached.
  3. Insert a J 38778  Door Trim Pad Clip Remover or equivalent behind the glass and the first rib support and pry outward until the mirror face is released.
  4. When installing the mirror glass align the mirror face to the backing plate and apply pressure, using a rubber sanding block or equivalent, until an audible click is heard.
