2004 Saturn Vue Red Line, FWDFACTORY OEM SERVICE PROCEDURE
Engine Controls Component Views

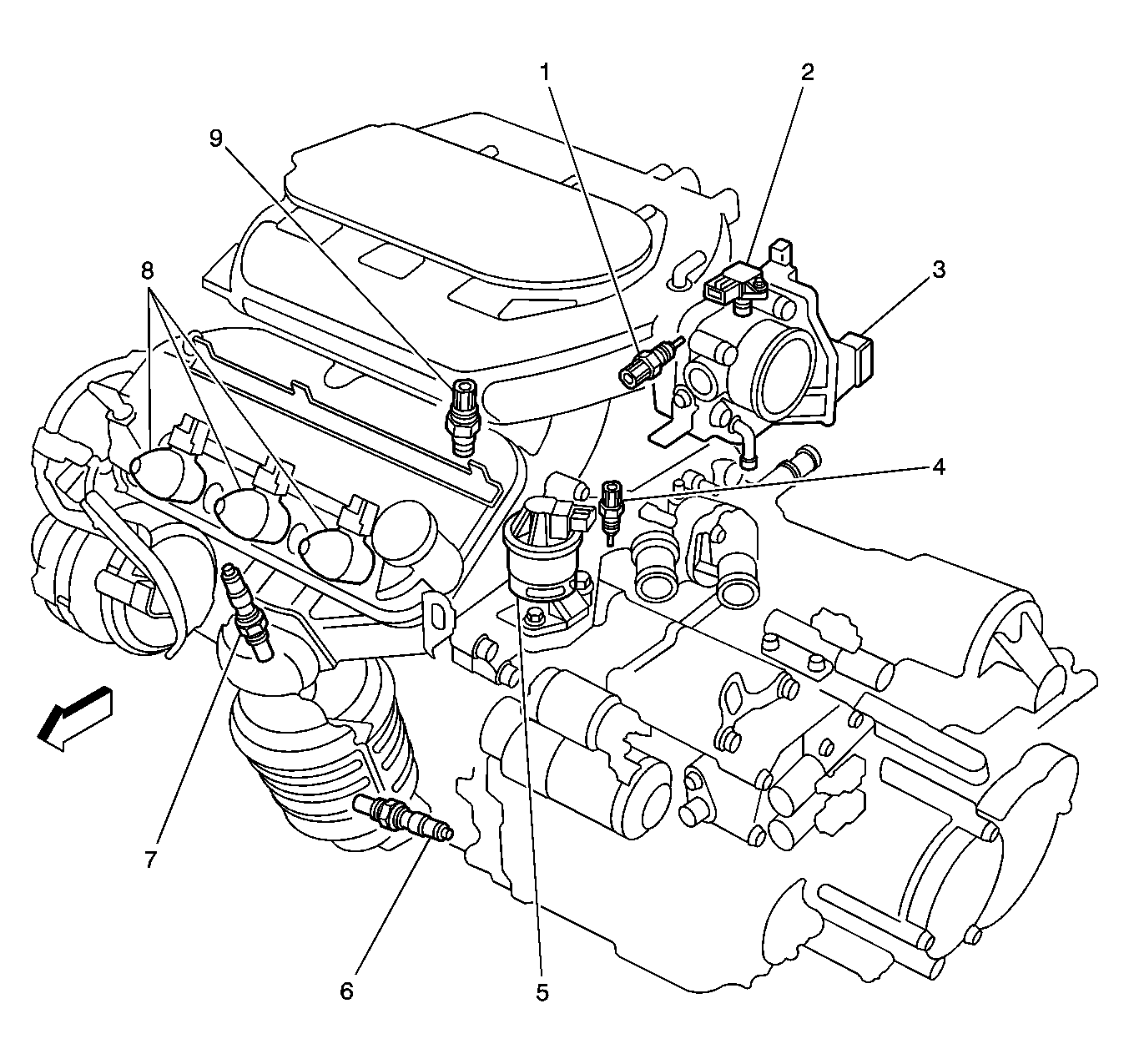

| Callout | Component Name |
|---|---|
| 1 | Intake Air Temperature (IAT) Sensor 2 (Sensor 1 in the Air Cleaner Housing) |
| 2 | Manifold Absolute Pressure (MAP) Sensor |
| 3 | Throttle Actuator Control (TAC) Module |
| 4 | Engine Coolant Temperature (ECT) Sensor |
| 5 | Exhaust Gas Recirculation (EGR) Valve |
| 6 | Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 |
| 7 | Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 |
| 8 | Ignition Control Modules (ICM) 4, 5, and 6 |
| 9 | Knock Sensor (KS) |

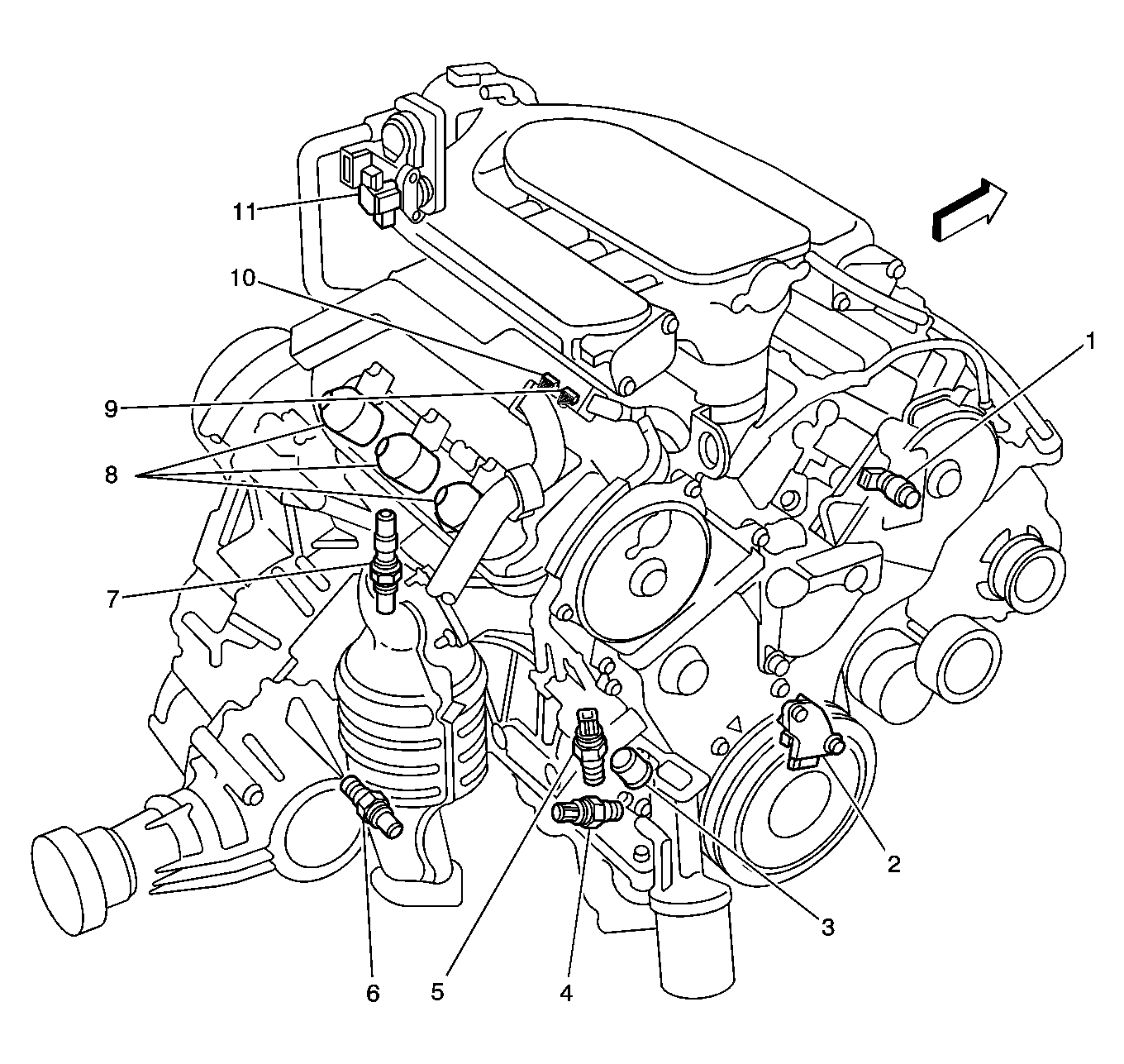

| Callout | Component Name |
|---|---|
| 1 | Camshaft Position (CMP) Sensor |
| 2 | Crankshaft Position (CKP) Sensor |
| 3 | Rocker Arm Oil Control Solenoid |
| 4 | Rocker Arm Oil Pressure Switch |
| 5 | Engine Oil Pressure (EOP) Switch |
| 6 | Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 |
| 7 | Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 |
| 8 | Ignition Control Modules (ICM) 1, 2, and 3 |
| 9 | Splice Pack SP113 |
| 10 | Splice Pack SP114 |
| 11 | Evaporative (EVAP) Emissions Purge Control Solenoid Valve |
