2004 Saturn Vue Red Line, AWDFACTORY OEM SERVICE PROCEDURE
Installation Procedure
- Install new O-rings to the injectors.

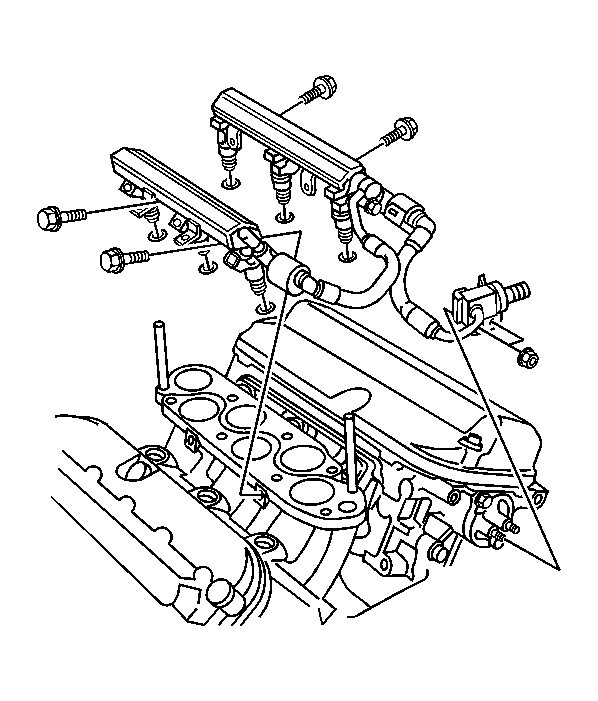

- Install the fuel rail and injectors as an assembly to the manifold.
- Install the bolts.
Tighten: Tighten the bolts to 9.8 N.m (87 lb in).
- Connect the fuel injector electrical connectors.
- Install the intake manifold. Refer to Intake Manifold Replacement in Engine Mechanical.
- Inspect for fuel leaks using the following procedure:
- With the engine OFF, turn ON the ignition for 2 seconds.
- Inspect for fuel leaks.
- Turn the ignition OFF for at least 10 seconds.
- With the engine OFF, turn ON the ignition for 2 seconds.
- Inspect for fuel leaks.
- Turn the ignition OFF.
NOTE:
Refer to Fastener Notice
in Cautions and Notices.
