2004 Saturn Vue Red Line, AWDFACTORY OEM SERVICE PROCEDURE

Installation Procedure

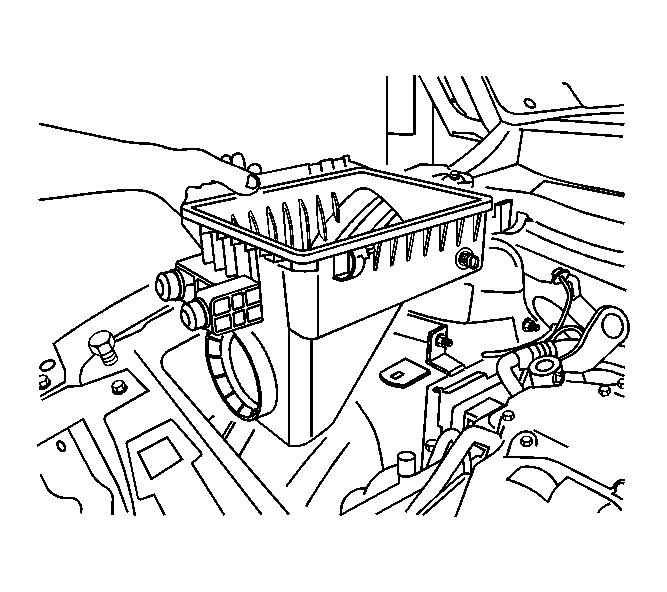

Fig 1: View Of Air Cleaner Assembly & Aligning Locking Pins Into The Front Panel

Courtesy of GENERAL MOTORS CORP.

Install the air cleaner assembly into position, aligning locking pins into the front panel.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the air cleaner attachment bolt.
Tighten: Tighten the bolt to 10 N.m (89 lb in).

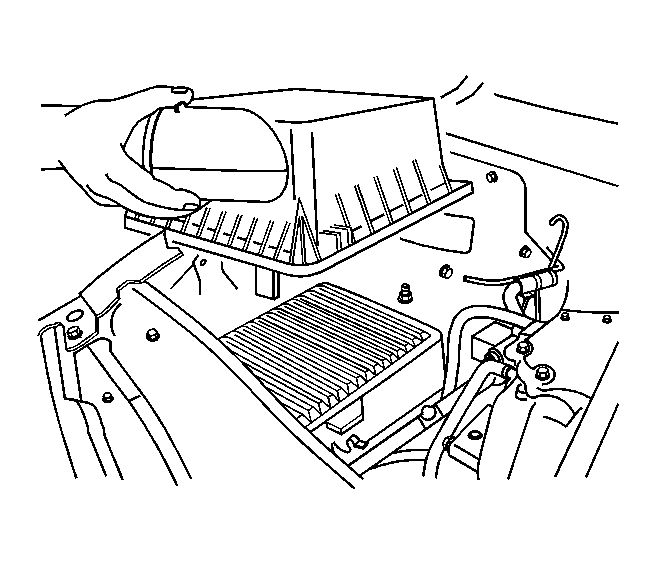

Fig 2: View Of Filter Element & Air Cleaner Assembly

Courtesy of GENERAL MOTORS CORP.

Install the filter element and air cleaner assembly top cover.

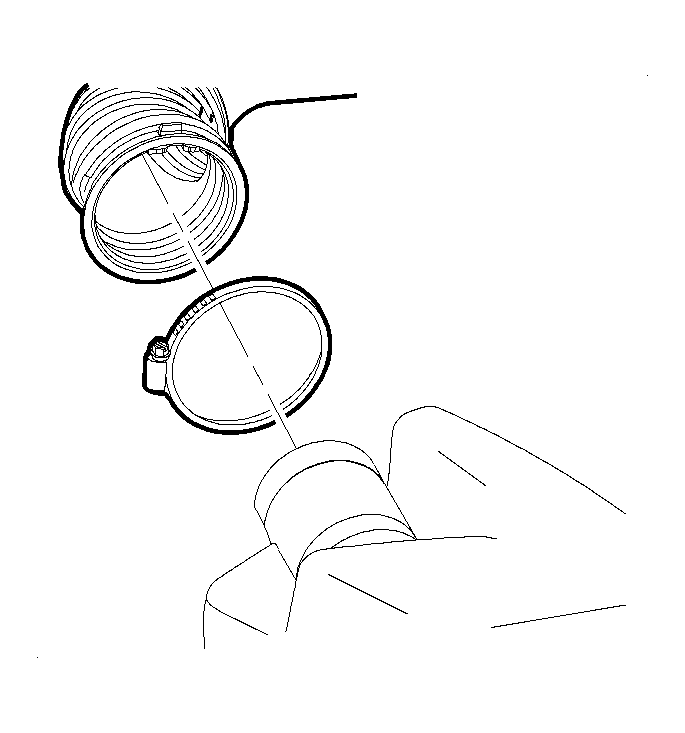

Fig 3: View Of Air Cleaner Assembly

Courtesy of GENERAL MOTORS CORP.

Tighten the clamp at the air cleaner assembly.
Tighten: Tighten the clamp to 4 N.m (35 lb in).
Connect the IAT 1sensor connector.
