2004 Saturn Ion Red LineFACTORY OEM SERVICE PROCEDURE
Special Tools
Special Tools
| Illustration | Tool Number/ Description |
|---|---|

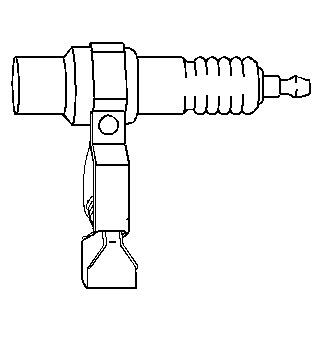

| J 26792 (SA9199Z) Spark Tester |
|

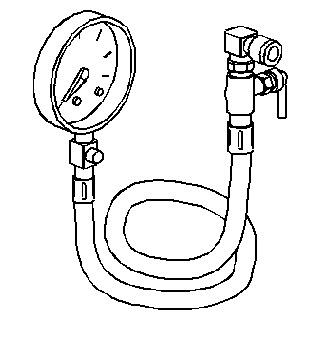

| J 34730-1A Fuel Pressure Gage |
|
| J 34730-405 Injector Test Lamp (Noid Light) |
|

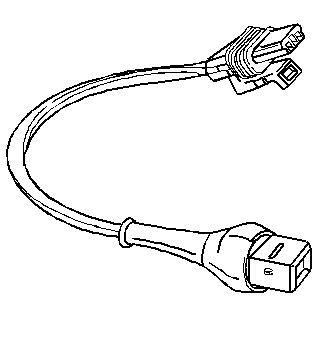

| J 36012-A (J 4883) Ignition System Diagnostic Harness |
|

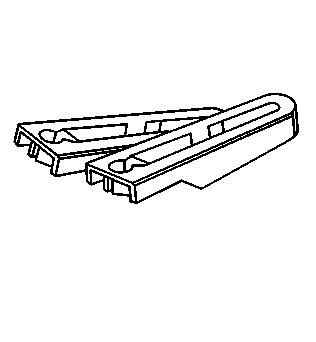

| J 37088-A (SA9157E) Fuel Line Disconnect Tool Set |
|

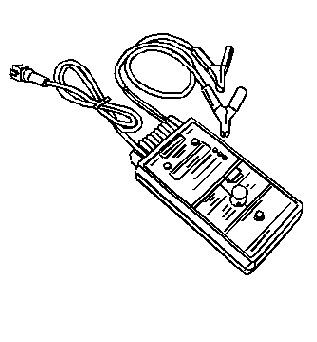

| J 39021 Fuel Injector Coil and Balance Tester |
|

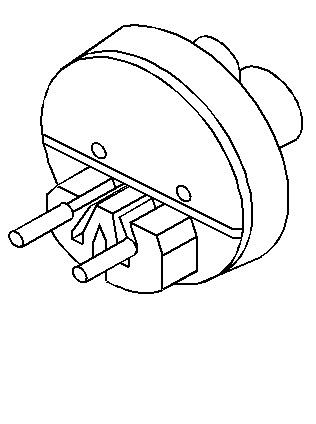

| J 39021-380 Injector Test Adapter |
|

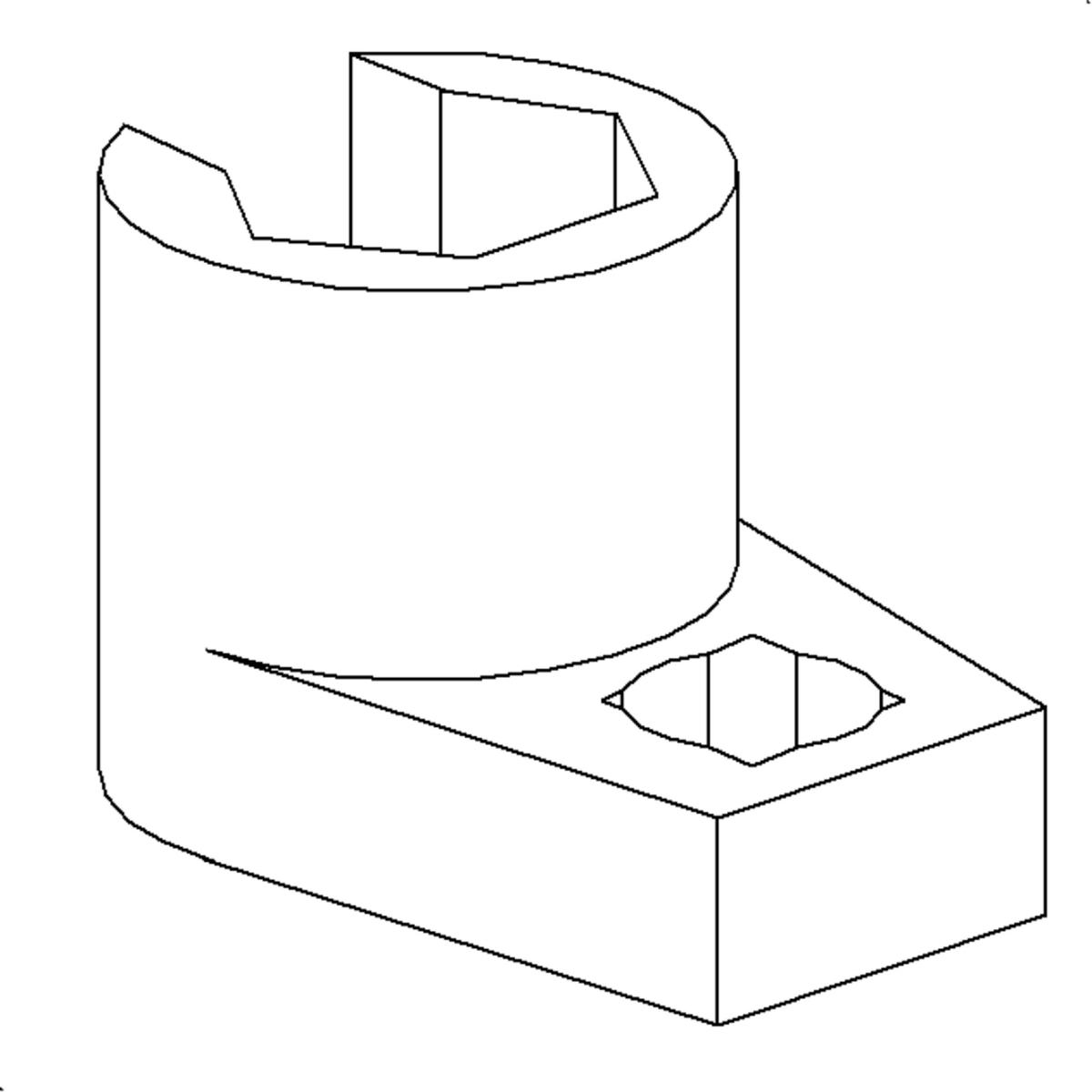

| J 39194-C Oxygen Sensor Wrench |
|

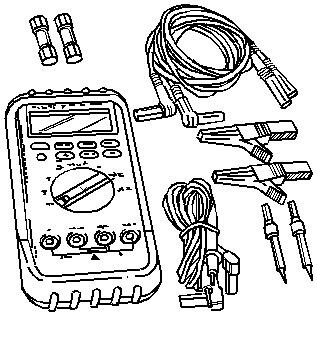

| J 39200 (SA91114NE) High Impedance Multimeter (Digital Multimeter) |
|

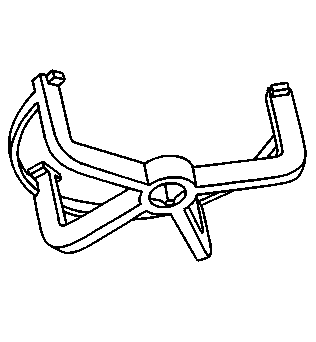

| J 39765 Fuel Sender Lock Nut Wrench |
|

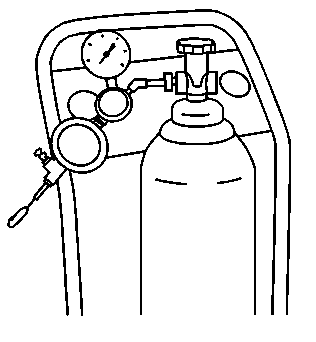

| J 41413 Pressure and Purge Station |
|

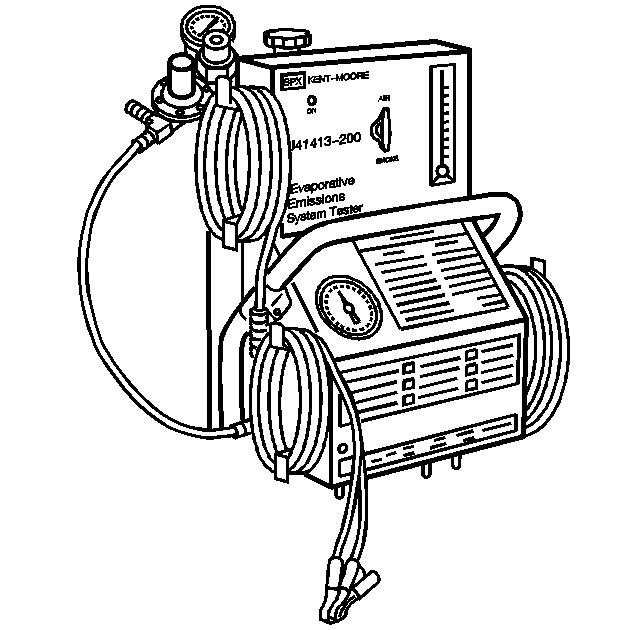

| J 41413-200 (J 41413-100) Evaporative Emissions System Tester (EEST) |
|
| J 41413-VLV EVAP Service Port Vent Fitting |
|
| J 41415-40 Fuel Tank Cap Adapter |
|

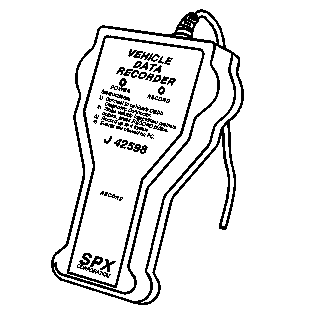

| J 42598 Vehicle Data Recorder |
|
| J 42960 (SA9804E) Fuel Flapper Door Holder (Fuel Tank Drain Hose) |
|

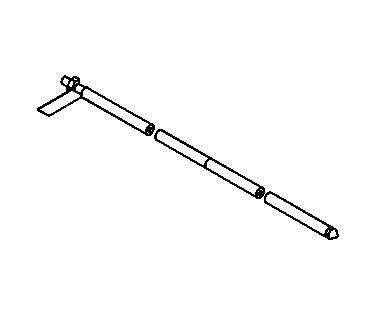

| J 43290 Fuel Tank Siphoning Hose |
|

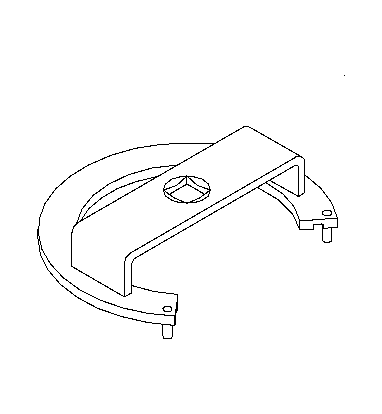

| J 43827 Fuel Sending Unit Wrench |
|

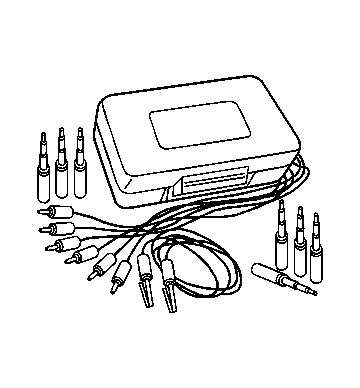

| J 43907 Connector Test Adapter Kit |
|

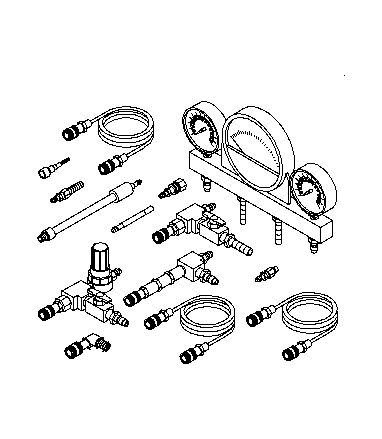

| SA9127E Gage Bar Set |
|

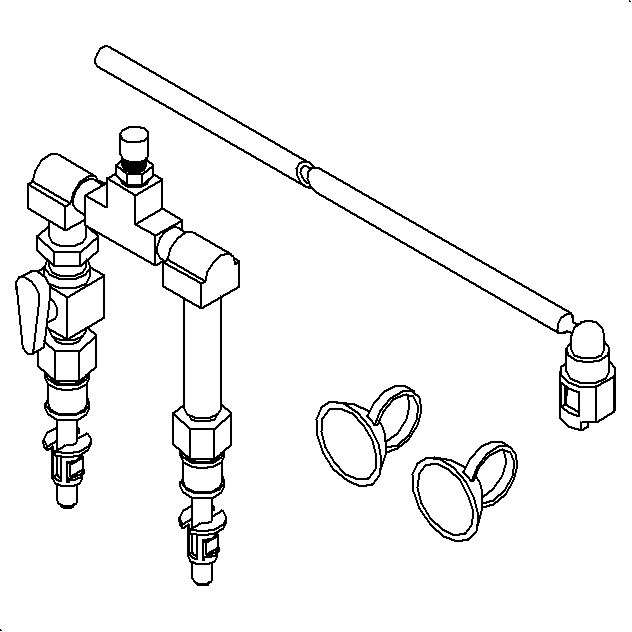

| SA9127E-7 Fuel Pressure/Flow Adapter |
|

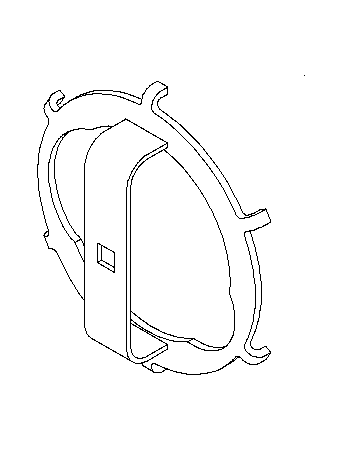

| SA 9156E Fuel Tank Lock Ring Remover |
|

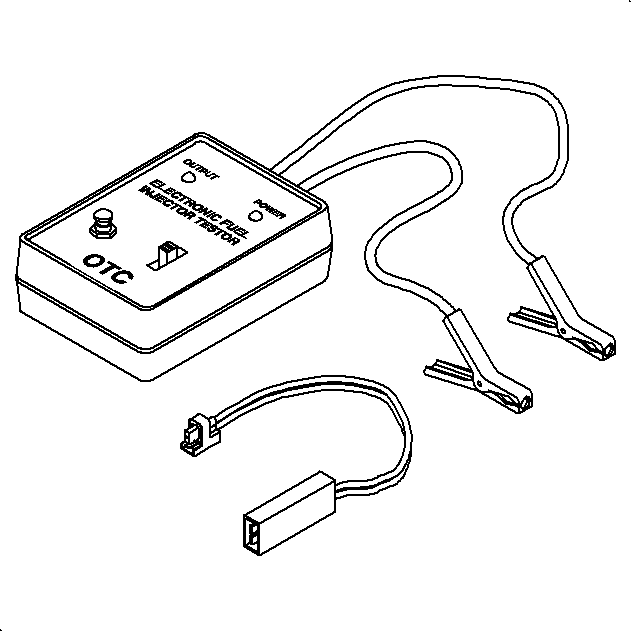

| SA9182E Electronic Fuel Injector Tester |
|

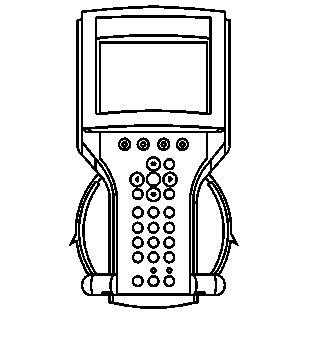

| 7000061 (7000081-SAT4-32MG) Tech II Diagnostic Scan Tool |
