Installation Procedure

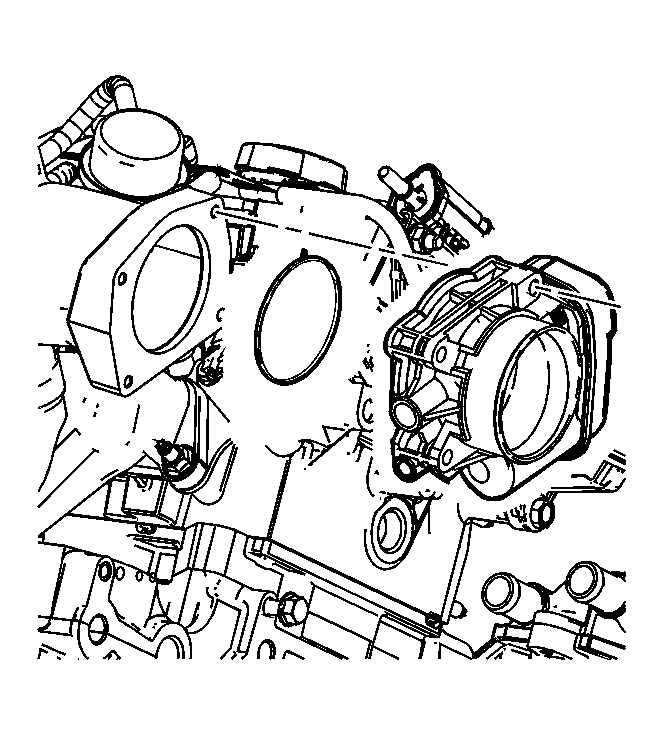

- Inspect the throttle body gasket and replace if necessary.
- Install the throttle body to the supercharger.
- Install the throttle body attaching bolts.
Tighten: Tighten the throttle body attaching bolts to 10 N.m (89 lb in).
- Connect the throttle body control harness connector.
- Connect the EVAP purge line.
- Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Resonator Replacement .
