2004 Saturn Ion Red LineFACTORY OEM SERVICE PROCEDURE

Removal Procedure

CAUTION: Wear safety glasses when using compressed air, as flying dirt particles may cause eye injury.

Blow dirt out of the fitting using compressed air.

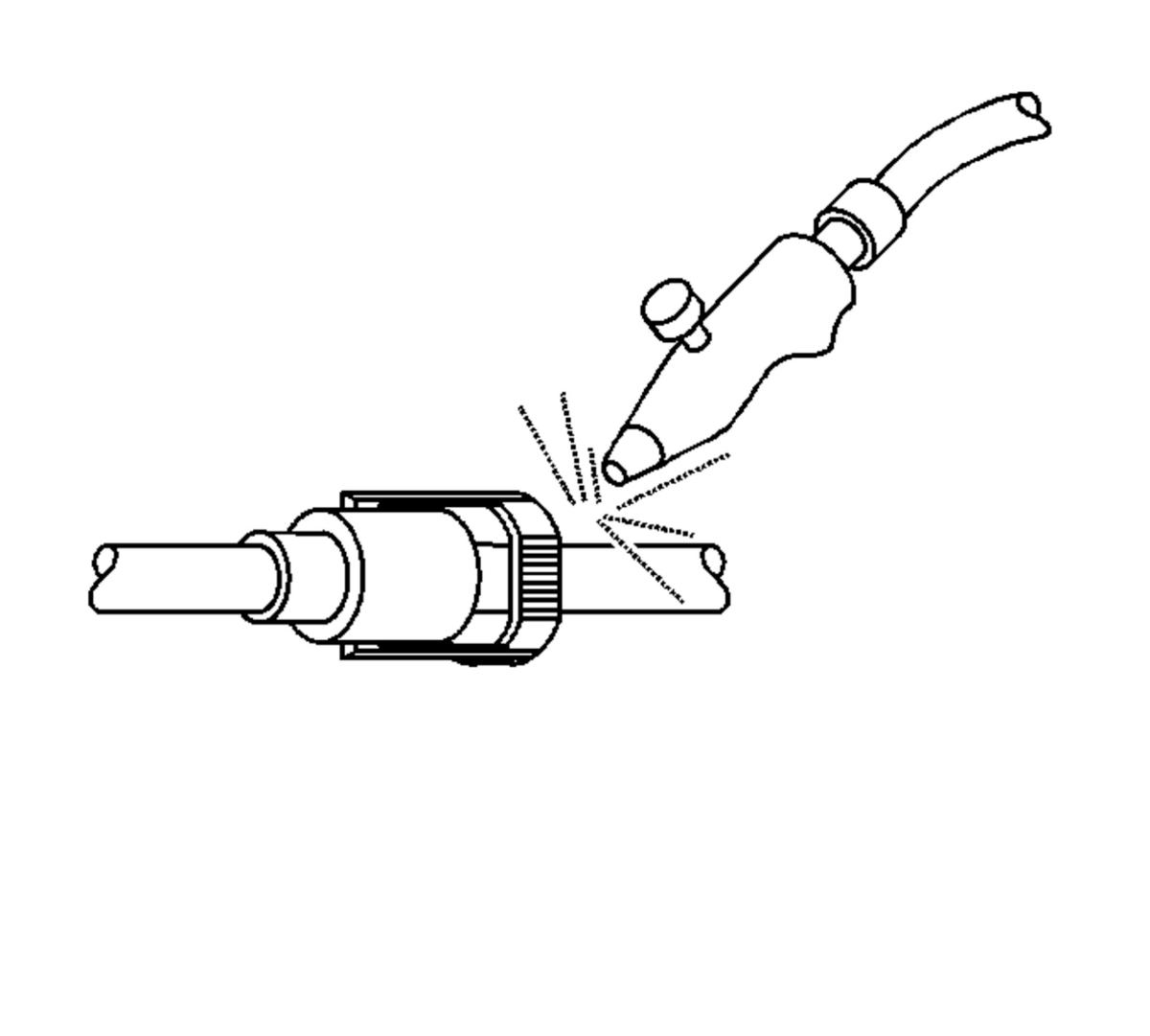

Fig 1: Blowing Dirt Out Of Fitting (Plastic Collar)

Courtesy of GENERAL MOTORS CORP.

Depress the tabs on the connector housing in order to release the connector.

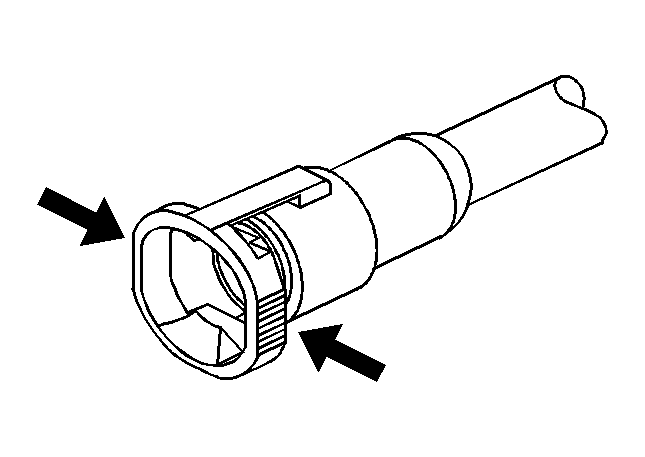

Fig 2: Releasing Connector (Plastic Collar)

Courtesy of GENERAL MOTORS CORP.

Continue to depress the tabs while pulling the connector apart.

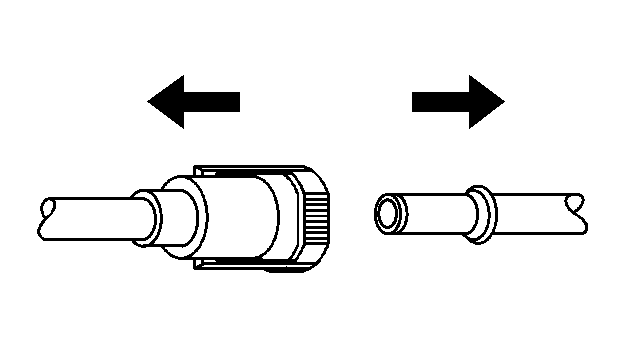

Fig 3: Pulling Connection Apart (Plastic Collar)

Courtesy of GENERAL MOTORS CORP.
