2004 Saturn Ion Red LineFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Relieve the fuel system pressure. Refer to Fuel Pressure Relief Procedure .
- Remove the retainer from the quick-connect fitting, if applicable.

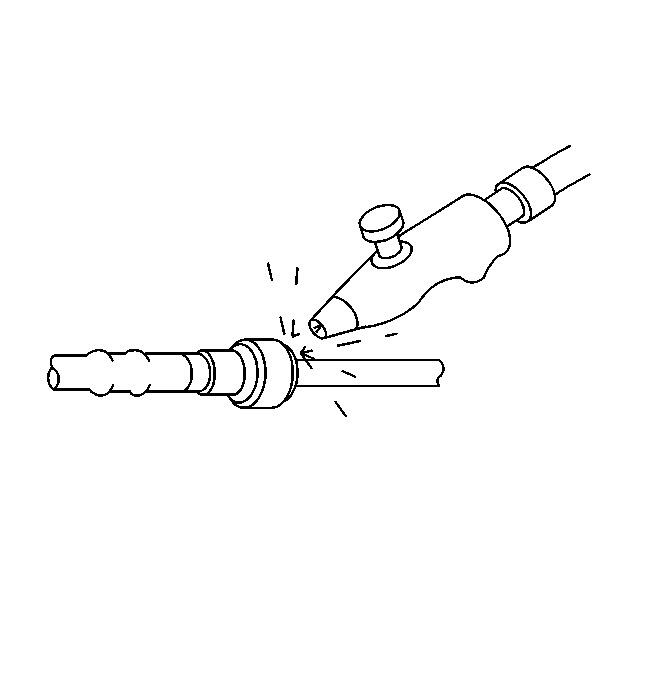

- Blow dirt out of the fitting using compressed air.

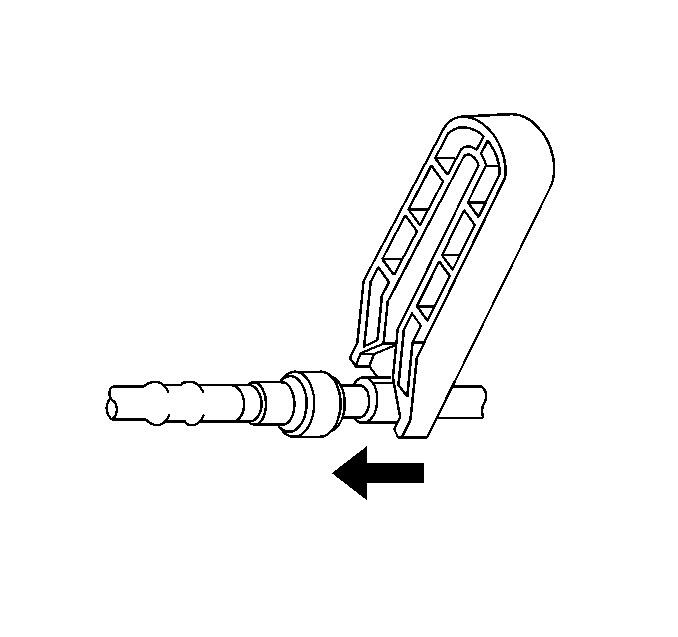

- Choose the correct tool from J 37088-A tool set for the size of the fitting. See Special Tools and Equipment . Insert the tool into the female connector, then push inward to release the locking tabs.

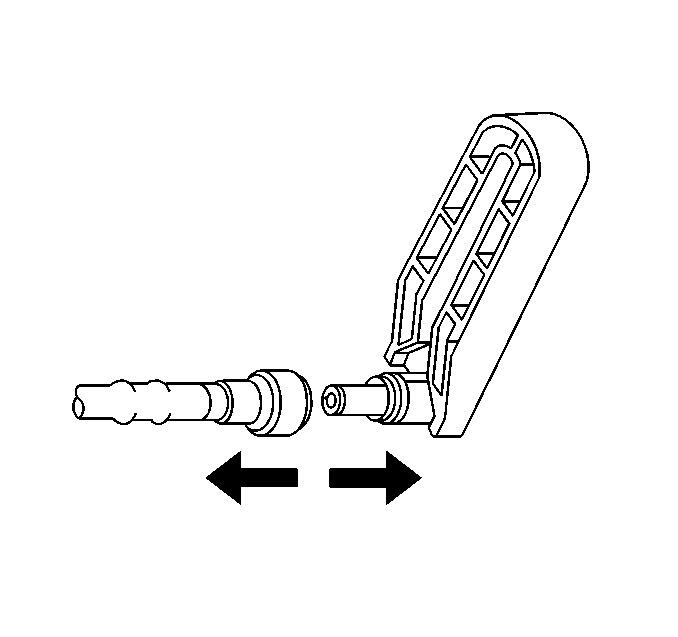

- Pull the connection apart.
CAUTION:
Wear safety glasses when using compressed air, as flying dirt particles may cause eye injury.
