2004 Saturn Ion Red LineFACTORY OEM SERVICE PROCEDURE
Installation Procedure
- Apply a few drops of clean engine oil to the male pipe end.

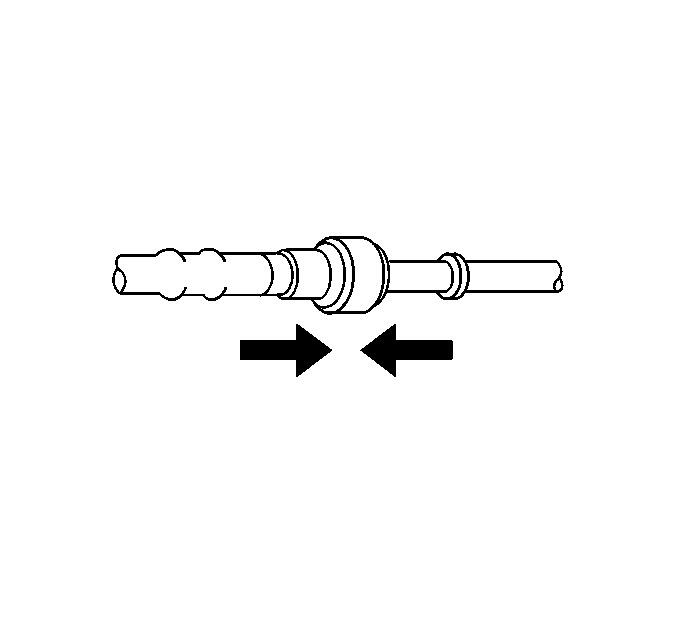

- Push both sides of the fitting together to cause the retaining tabs to snap into place.

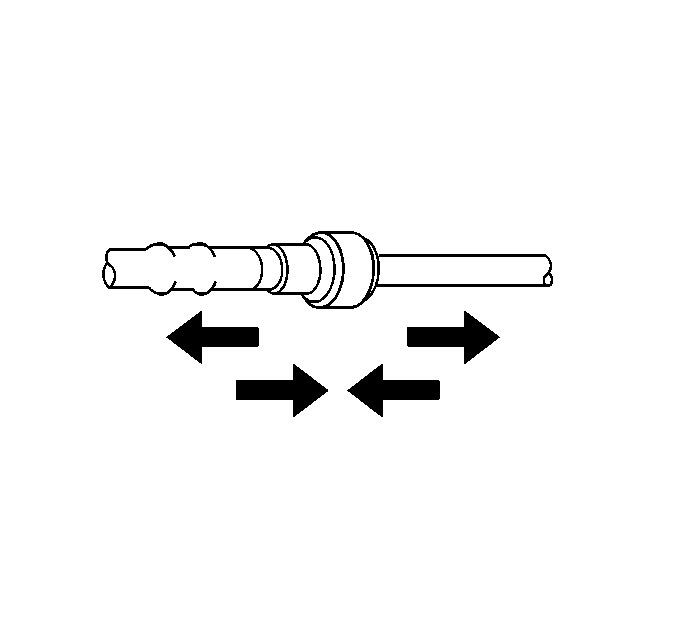

- Once installed, pull on both sides of the fitting to make sure the connection is secure.
- Install the retainer to the quick-connect fitting, if applicable.
CAUTION:
In order to reduce the risk of fire and personal injury, before connecting fuel pipe fittings, always apply a few drops of clean engine oil to the male pipe ends.
This will ensure proper reconnection and prevent a possible fuel leak.
During normal operation, the O-rings located in the female connector will swell and may prevent proper reconnection if not lubricated.
This will ensure proper reconnection and prevent a possible fuel leak.
During normal operation, the O-rings located in the female connector will swell and may prevent proper reconnection if not lubricated.
