2004 Saturn Ion Red LineFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Using a scan tool, retrieve the percentage of remaining engine oil. Record the remaining engine oil life.
- Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.

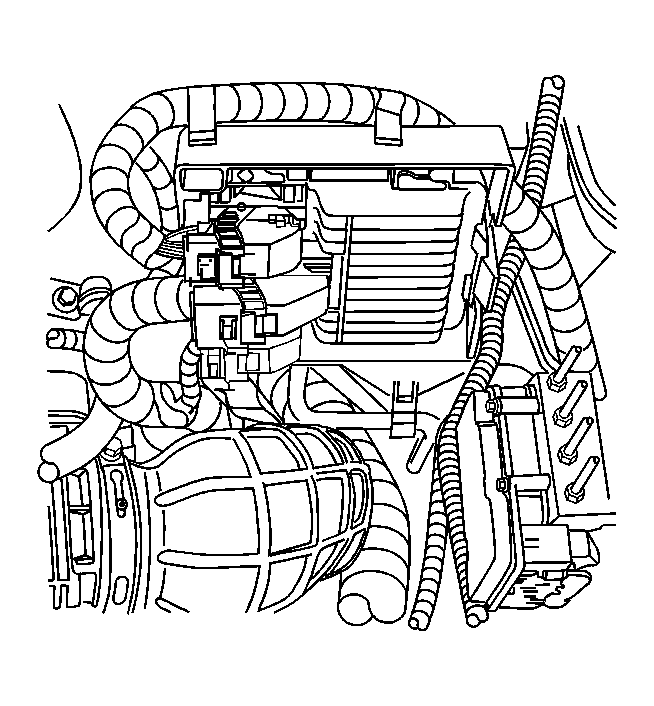

- Disconnect the 3 powertrain control module (PCM) harness connectors from the PCM, noting proper orientation.
- Use the retaining tab to release the PCM from the underhood junction block bracket.
