2004 Saturn Ion Red LineFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Raise and support the vehicle. Refer toLifting and Jacking the Vehicle in General Information.
- Note the routing of the heated oxygen sensor (HO2S) electrical harness.

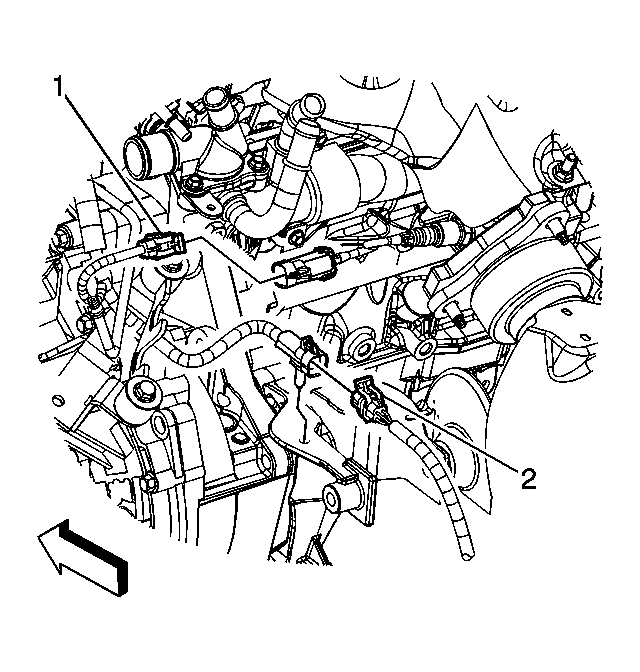

- Disconnect the HO2S electrical connector (2), in the engine compartment.

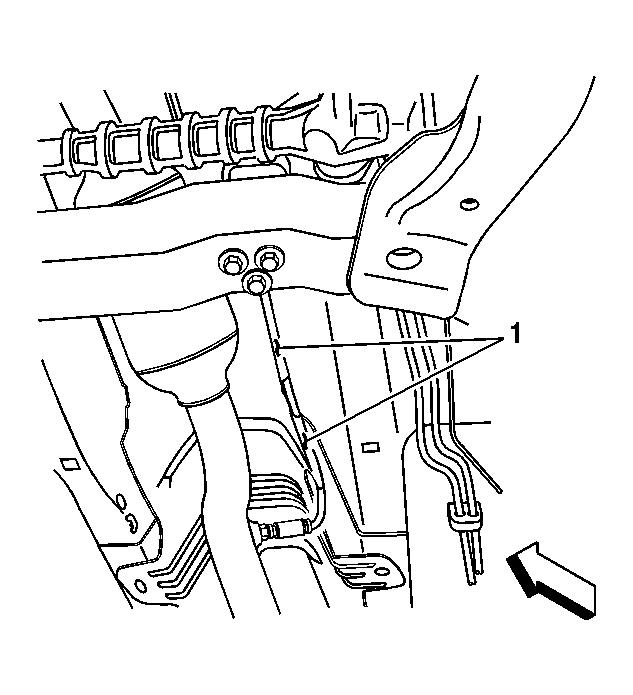

- Carefully bend the edge of the channel on the LH side of the exhaust heat shield outboard, just enough to release the HO2S electrical harness (1).
