2004 Saturn Ion Red LineFACTORY OEM SERVICE PROCEDURE

Removal Procedure

  1. Remove the engine cover.
  2. Relieve the fuel system pressure. Refer to Fuel Pressure Relief Procedure .
  3. Disconnect the engine fuel feed pipe from the chassis fuel flex hose. Refer to Quick Connect Fitting(s) Service (Metal Collar) .
  4. Use a back up wrench on the fuel rail and disconnect the fuel feed pipe.
    5. Fig 1: View Of Fuel Feed Pipe (RPO Code LSJ)
    GM1387192Courtesy of GENERAL MOTORS CORP.
  5. Remove the fuel feed pipe fastener located on the engine.

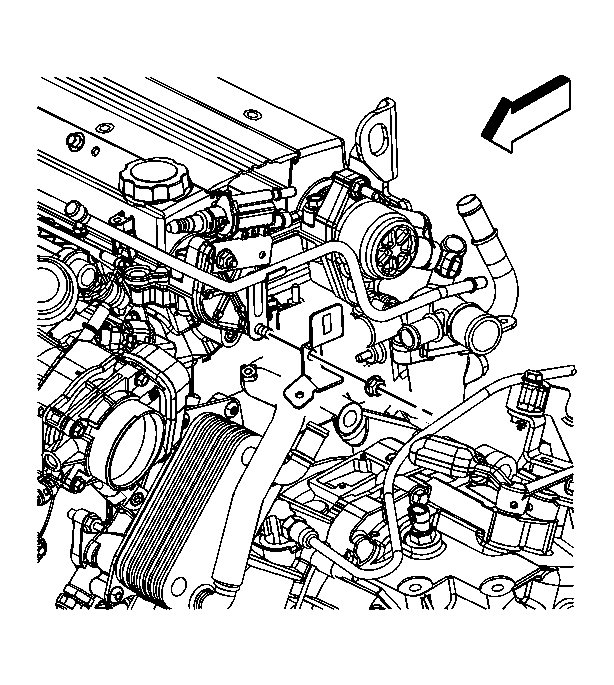

    6. Fig 2: Locating Fuel Feed Pipe Fastener (RPO Code LSJ)
    GM1389385Courtesy of GENERAL MOTORS CORP.
  6. Remove the engine fuel feed pipe.
