2004 Saturn Ion Red LineFACTORY OEM SERVICE PROCEDURE

Boost Control System Operation

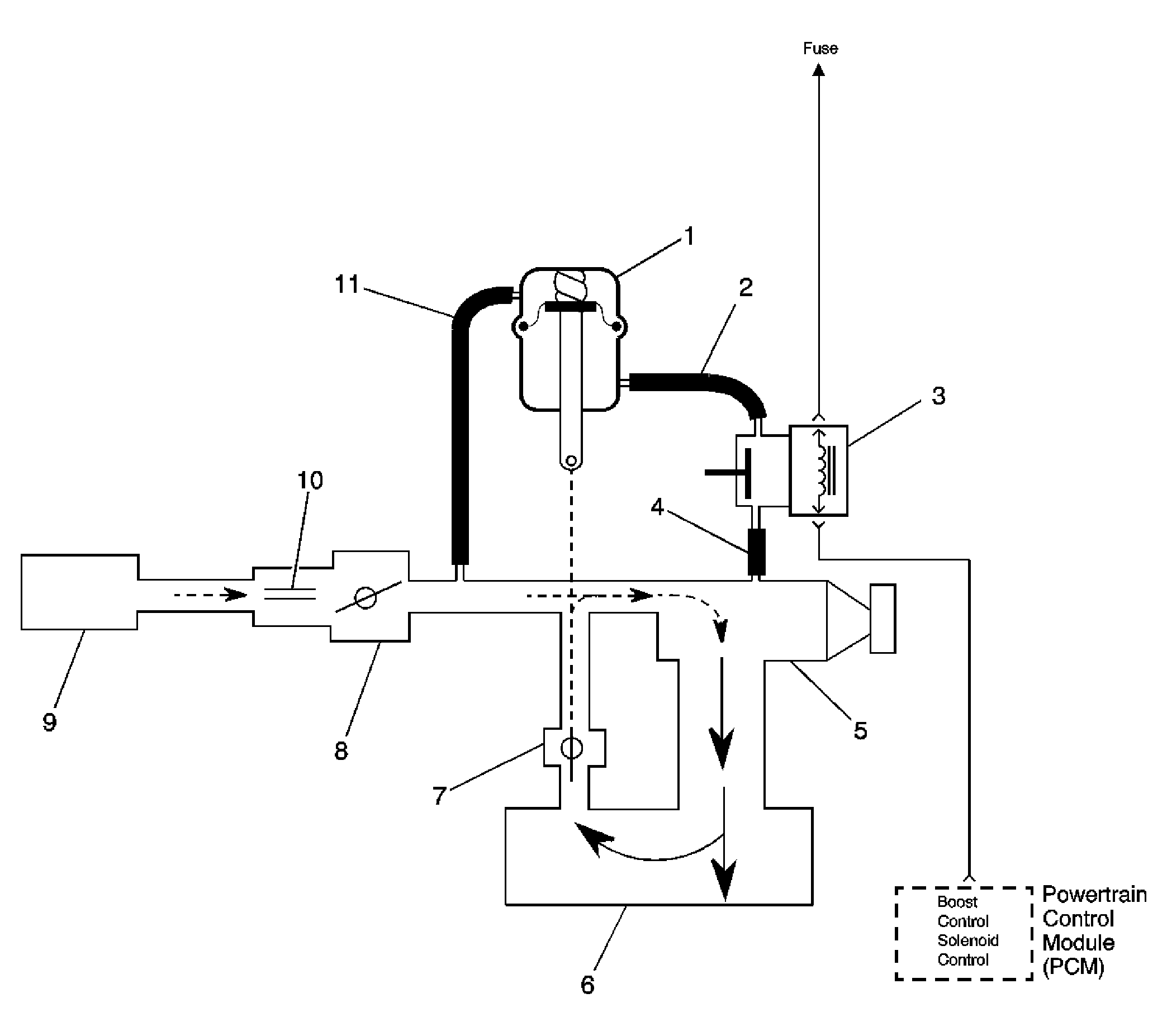

Fig 1: Boost Control Bypass Valve Open
GM858882Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 By-Pass Valve Actuator
2 Boost Signal
3 Boost Control Solenoid
4 Boost Source
5 Supercharger
6 Intake Plenum
7 By-Pass Valve
8 Throttle
9 Air Cleaner
10 MAF Sensor
11 Inlet Vacuum Signal

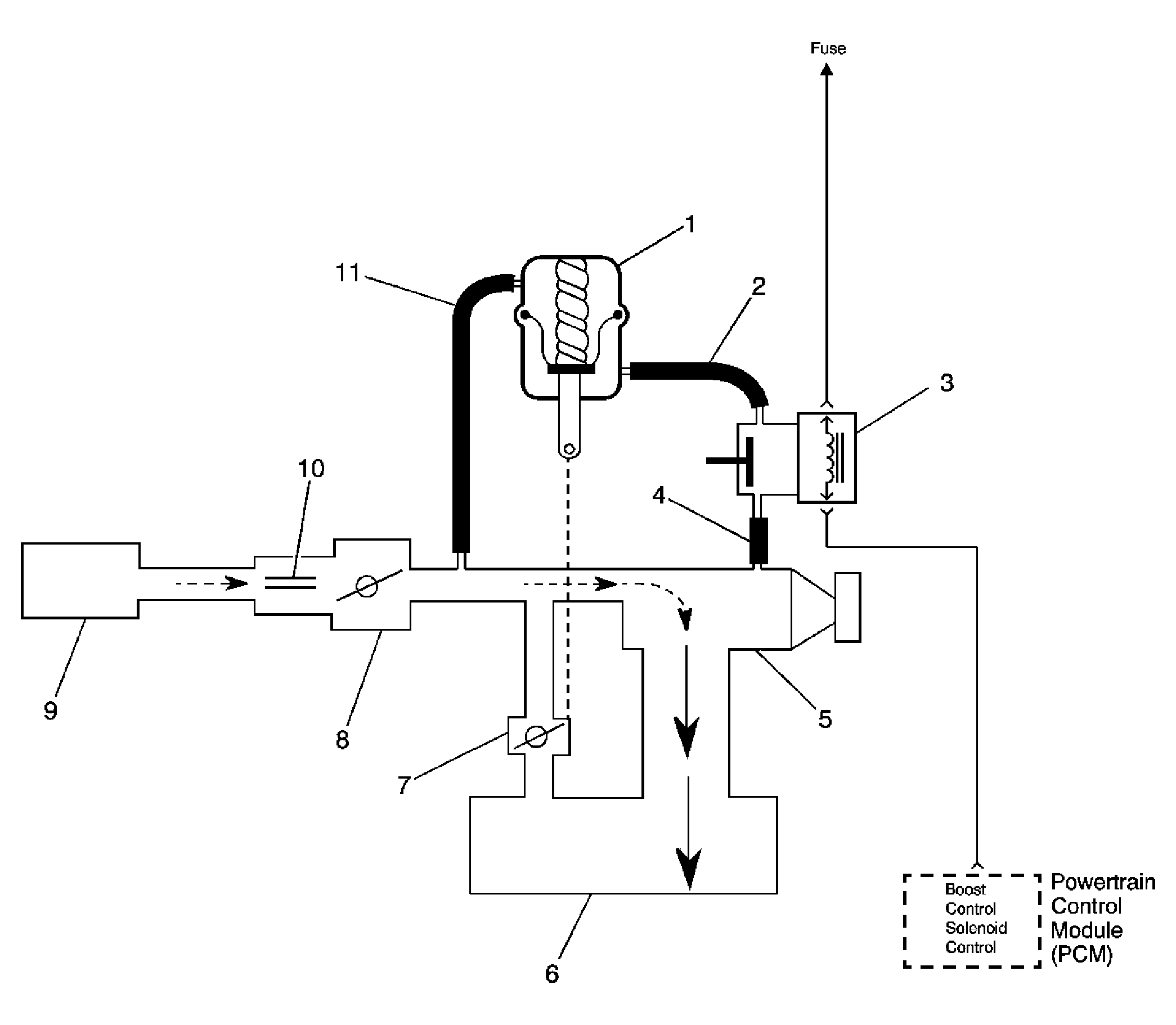

Fig 1: Bypass Valve Closed
GM858889Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 By-Pass Valve Actuator
2 Boost Signal
3 Boost Control Solenoid
4 Boost Source
5 Supercharger
6 Intake Plenum
7 By-Pass Valve
8 Throttle
9 Air Cleaner
10 MAF Sensor
11 Inlet Vacuum Signal
