Installation Procedure

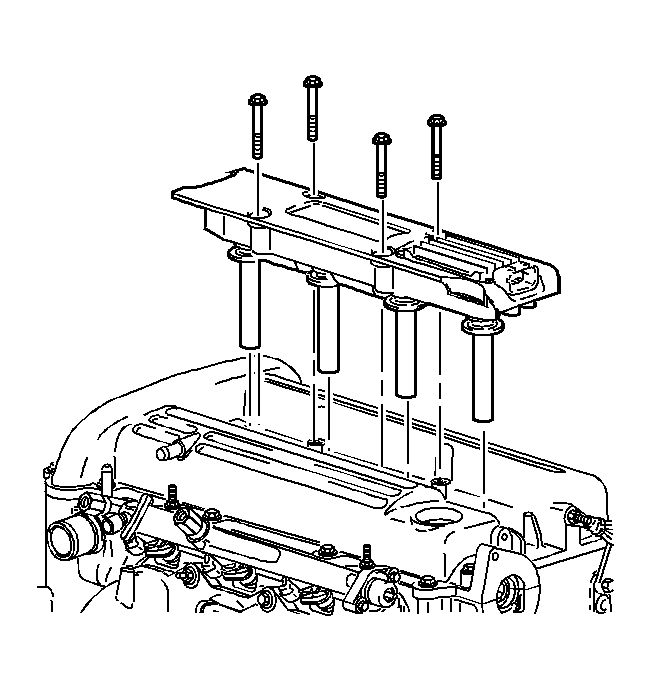

- Install the ignition coil housing to the camshaft cover.
- Install the ignition coil housing retaining bolts.
Tighten: Tighten the retaining bolts to 10 N.m (89 lb in).
- Install the ICM. Refer to Ignition Control Module Replacement .
- Install the accelerator and cruise control cables bracket.
- Install the accelerator and cruise control cables bracket bolts.
Tighten: Tighten the retaining bolts to 10 N.m (89 lb in).
- Install the accelerator and cruise control cables to the bracket.
