2004 Saturn Ion 1 StandardFACTORY OEM SERVICE PROCEDURE
Removal Procedure

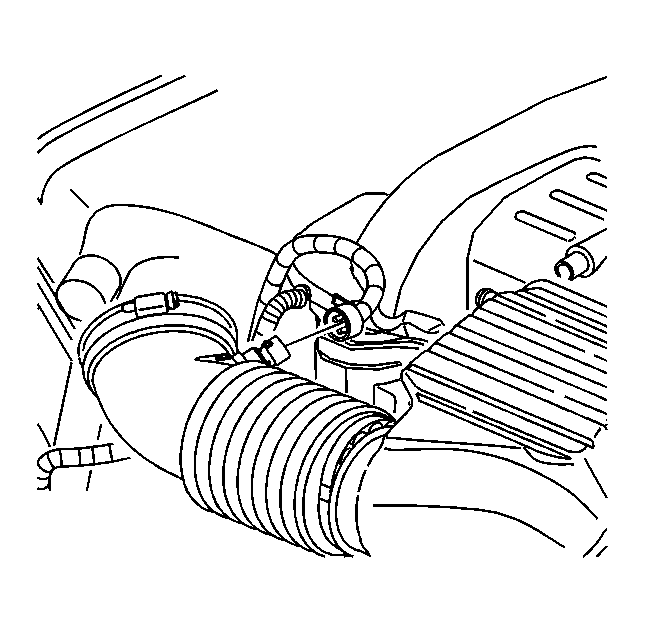

- Disconnect the IAT sensor harness connector.
- Loosen the air cleaner assembly clamp.
- Disconnect the air cleaner assembly clips.
- Remove the upper air cleaner cover.
- Remove the air cleaner filter from the lower air cleaner housing.
- Inspect the air cleaner filter for dust, dirt and water contamination.
- Replace as necessary. Refer toScheduled Maintenance in Maintenance and Lubrication.
