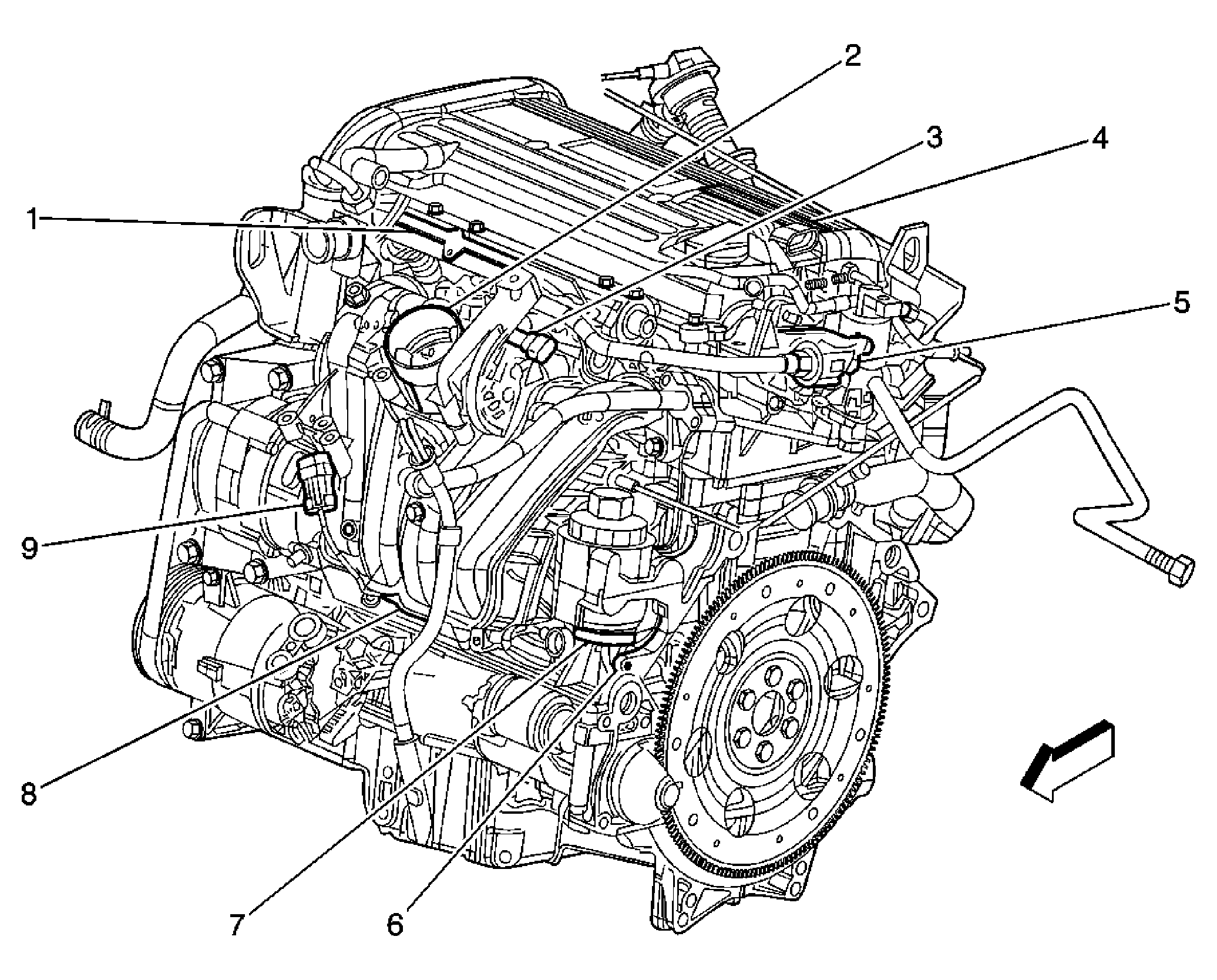

Fig 1: Front Left Side Of Engine Component View (2.2L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Injectors Rail
2	Throttle Body
3	Manifold Absolute Pressure (MAP) Sensor
4	Ignition Control (IC) Module
5	Evaporative Emissions (EVAP) Canister Purge Solenoid Valve
6	G105 (2.0L Similar)
7	Crankshaft Position (CKP) Sensor
8	Knock Sensor (KS)
9	C150

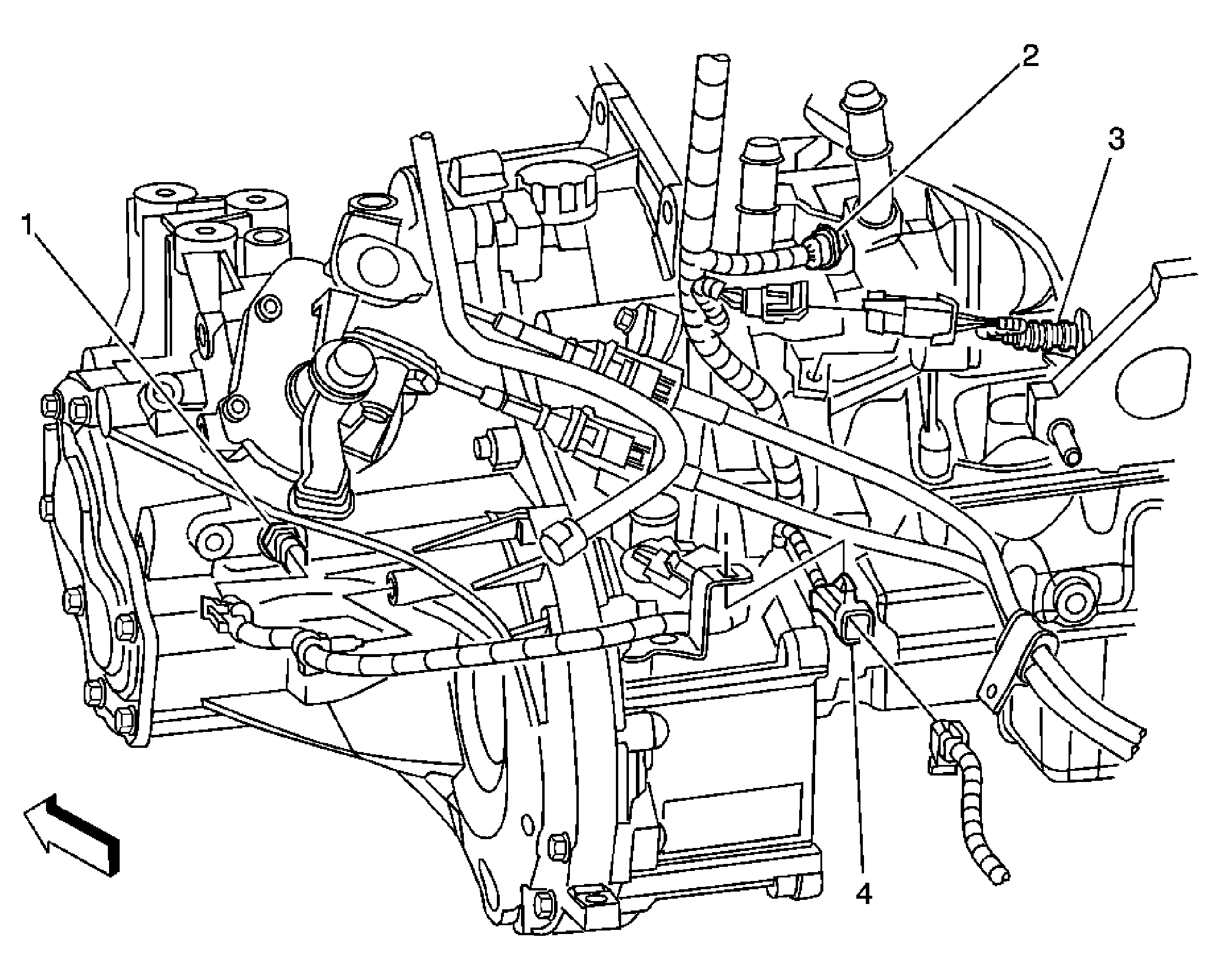

Fig 2: Rear Side Of Engine Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Backup Lamp Switch (M86)
2	Engine Coolant Temperature Sensor (ECT)
3	Heated Oxygen Sensor (HO2S)1
4	Heated Oxygen Sensor (HO2S)2 Connector

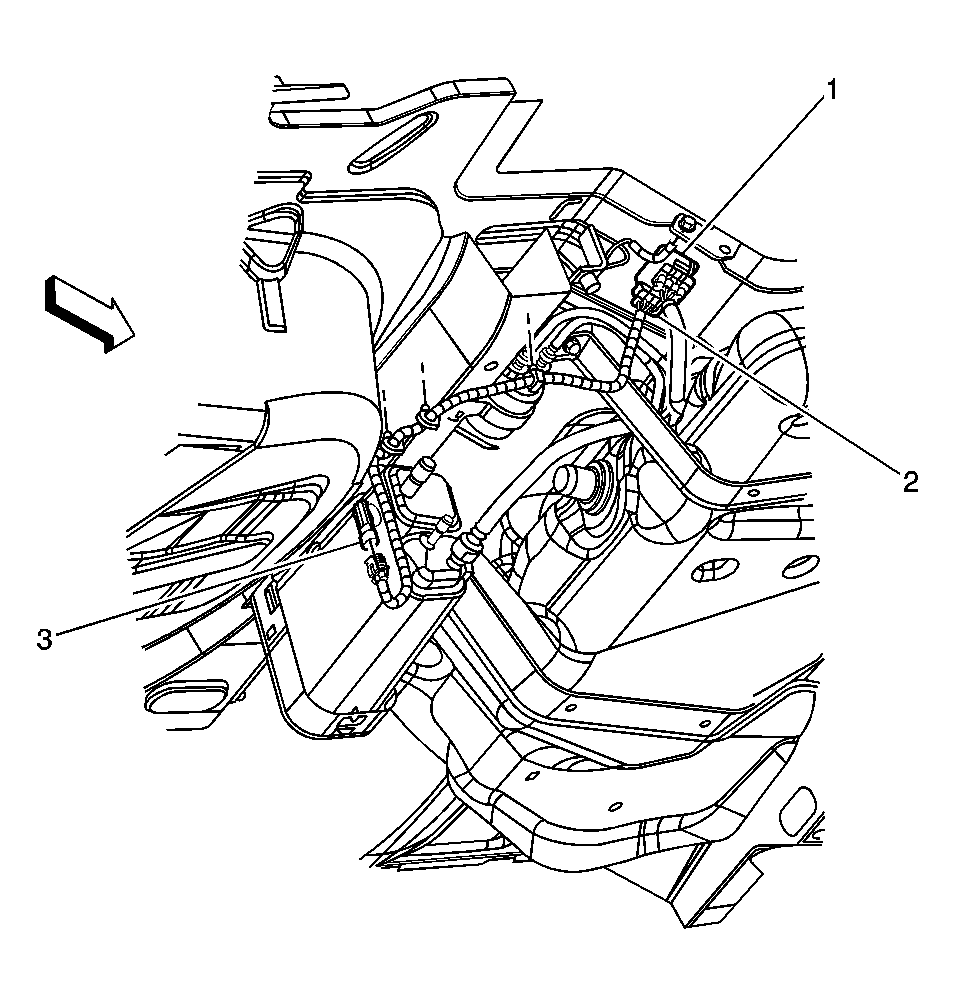

Fig 3: Right Rear Side Under Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C406 (Fuel Controls)
2	C406 (EVAP Controls)
3	Evaporative Emission (EVAP) Canister Vent Solenoid

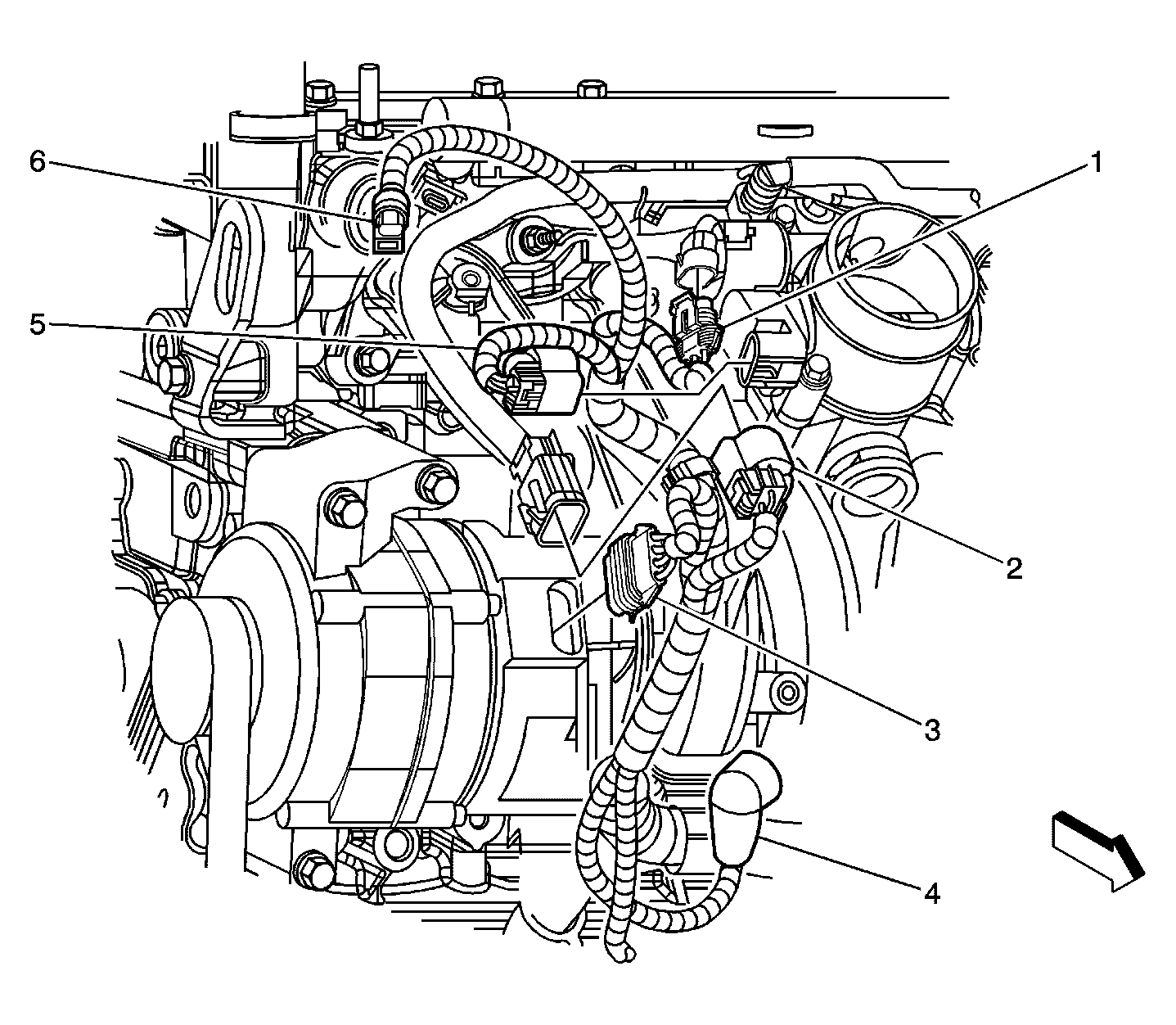

Fig 4: Right Front Side Of Engine Component View (2.2L)

Courtesy of GENERAL MOTORS CORP.

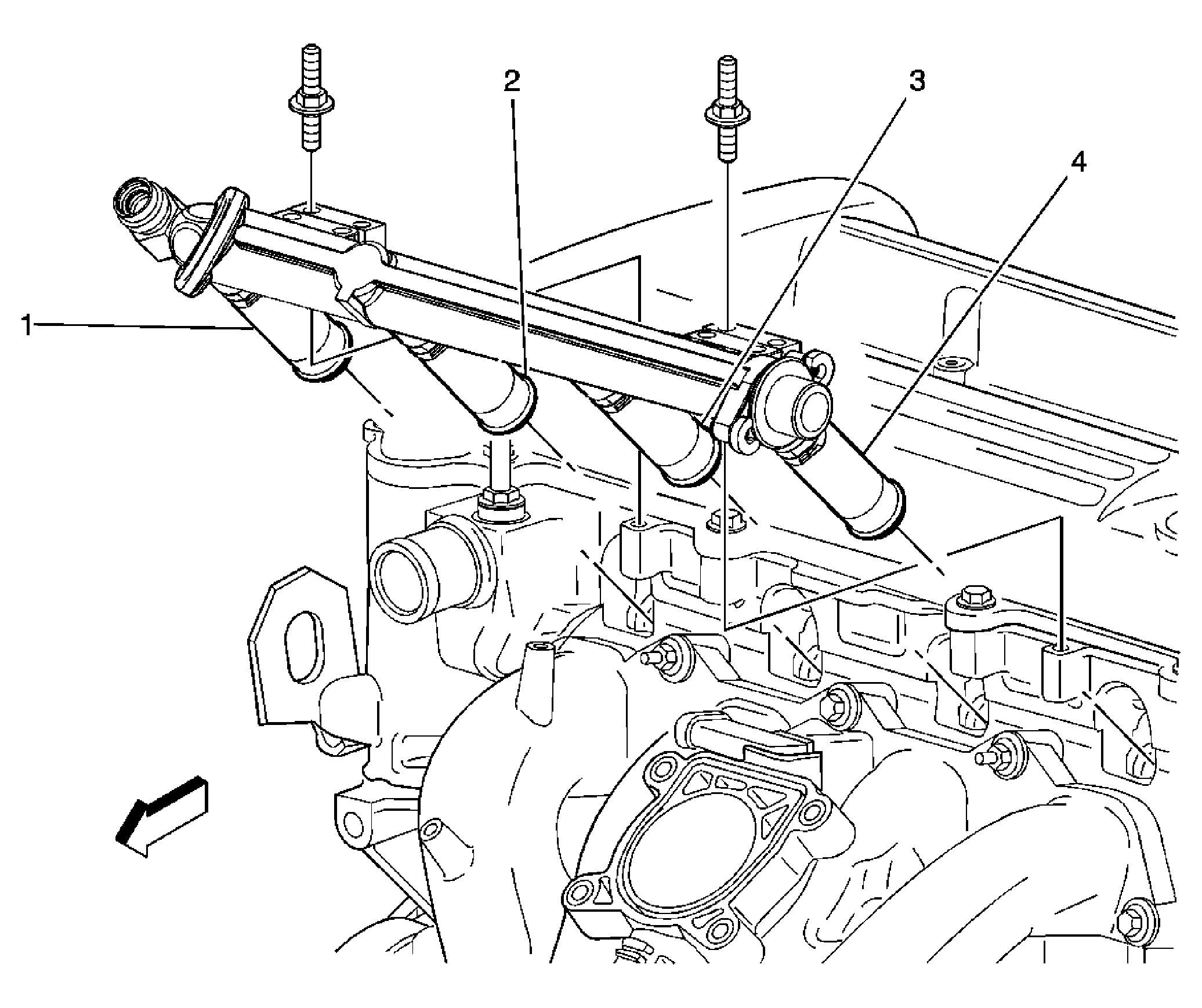

Fig 5: Top Front Of Engine Component View

Courtesy of GENERAL MOTORS CORP.

Fig 6: Fuel Pump & Sender Assembly Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Tank Pressure (FTP) Sensor
2	Fuel Pump and Sender Assembly
3	Fuel Pump Strainer
4	Fuel Level Sensor
