2004 Saturn Ion 1 AutomaticFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Remove the air cleaner resonator. Refer to Air Cleaner Outlet Resonator Replacement .
- Disconnect the idle air control (IAC) valve harness connector (1).
- Disconnect the throttle position (TP) sensor harness connector (2).
- Disconnect the vacuum hoses at the throttle body.
- Remove the accelerator control bracket and cable from the throttle body. Refer to Accelerator Controls Cable Bracket Replacement .

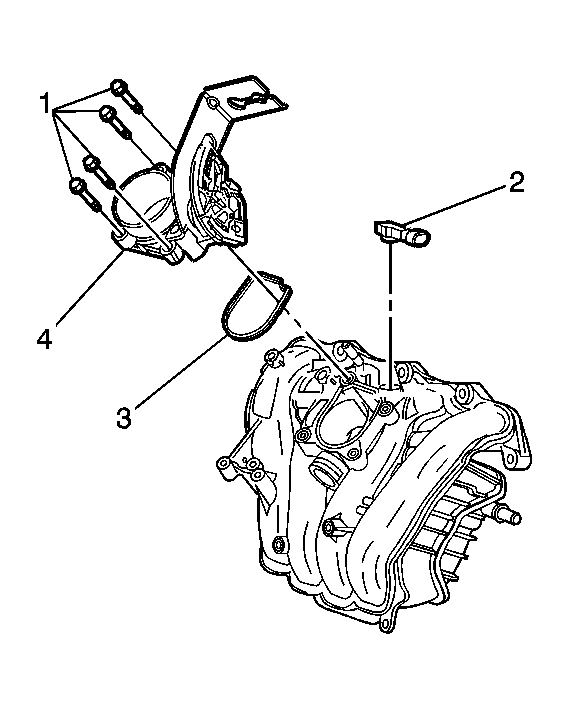

- Remove the throttle body attaching bolts (1).
- Remove the throttle body (4) from the intake manifold.
