2004 Saturn Ion 1 AutomaticFACTORY OEM SERVICE PROCEDURE

Removal Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
Remove the wheel drive shaft heat shield. Refer to Wheel Drive Shaft Heat Shield Replacement in Engine Exhaust.
Note the routing of the HO2S electrical harness.
Disconnect the heated oxygen sensor (HO2S) electrical connector (2), in the engine compartment.

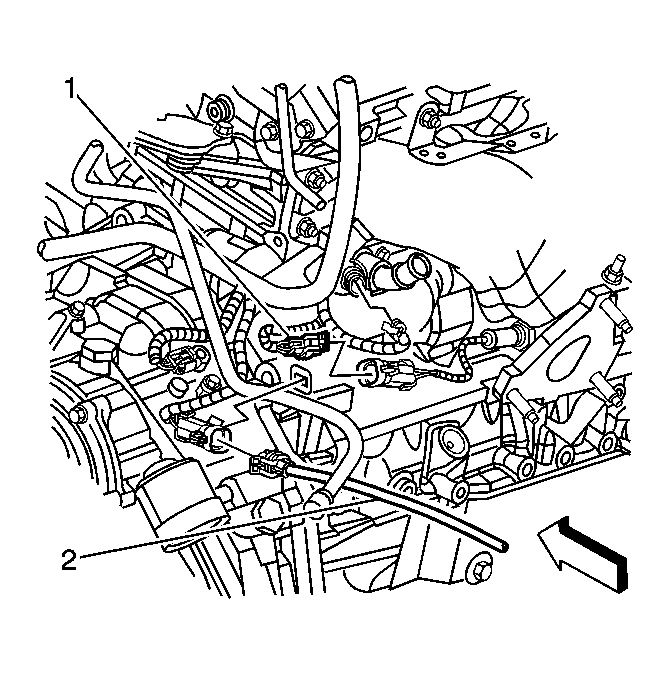

Fig 1: Locating HO2S (Position 2)

Courtesy of GENERAL MOTORS CORP.

Carefully bend the edge of the channel on the LH side of the exhaust heat shield outboard, just enough to release the HO2S electrical harness (1).

Fig 2: View Of HO2S Electrical Harness

Courtesy of GENERAL MOTORS CORP.
