2003 Saturn LW200FACTORY OEM SERVICE PROCEDURE
Installation Procedure (Using Old Switch)
- Make sure the transaxle manual shaft is in the Neutral position.

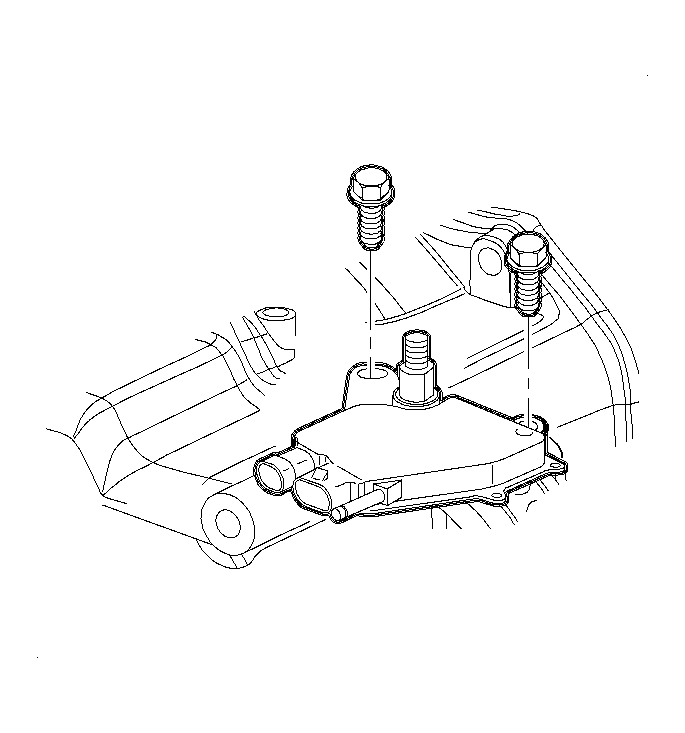

- Align the flats on the transaxle shift shaft with the flats on the transaxle range switch and install the switch.
- Loosely install the transaxle range switch bolts.

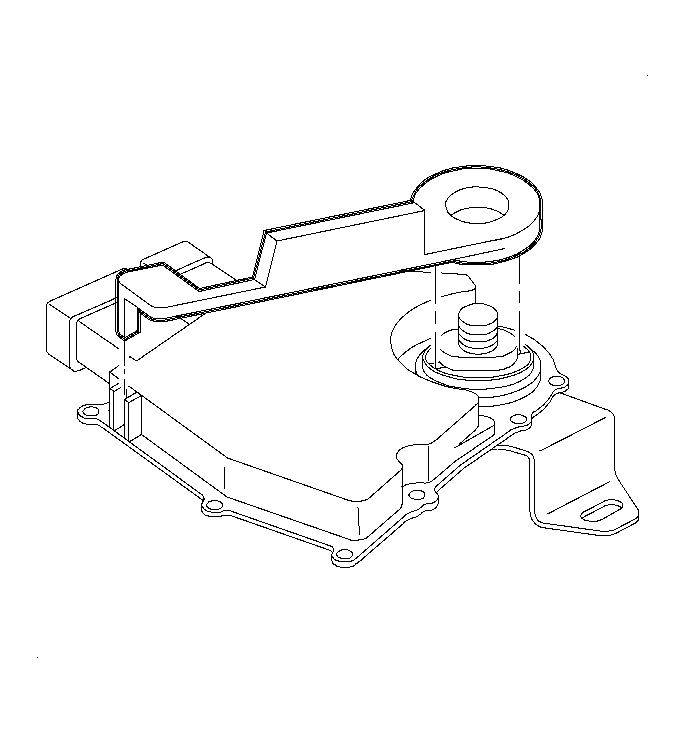

- Insert the J 41545 as shown and rotate the switch until the tool drops onto position.
