2003 Saturn LW200FACTORY OEM SERVICE PROCEDURE

Engine Block - Top View

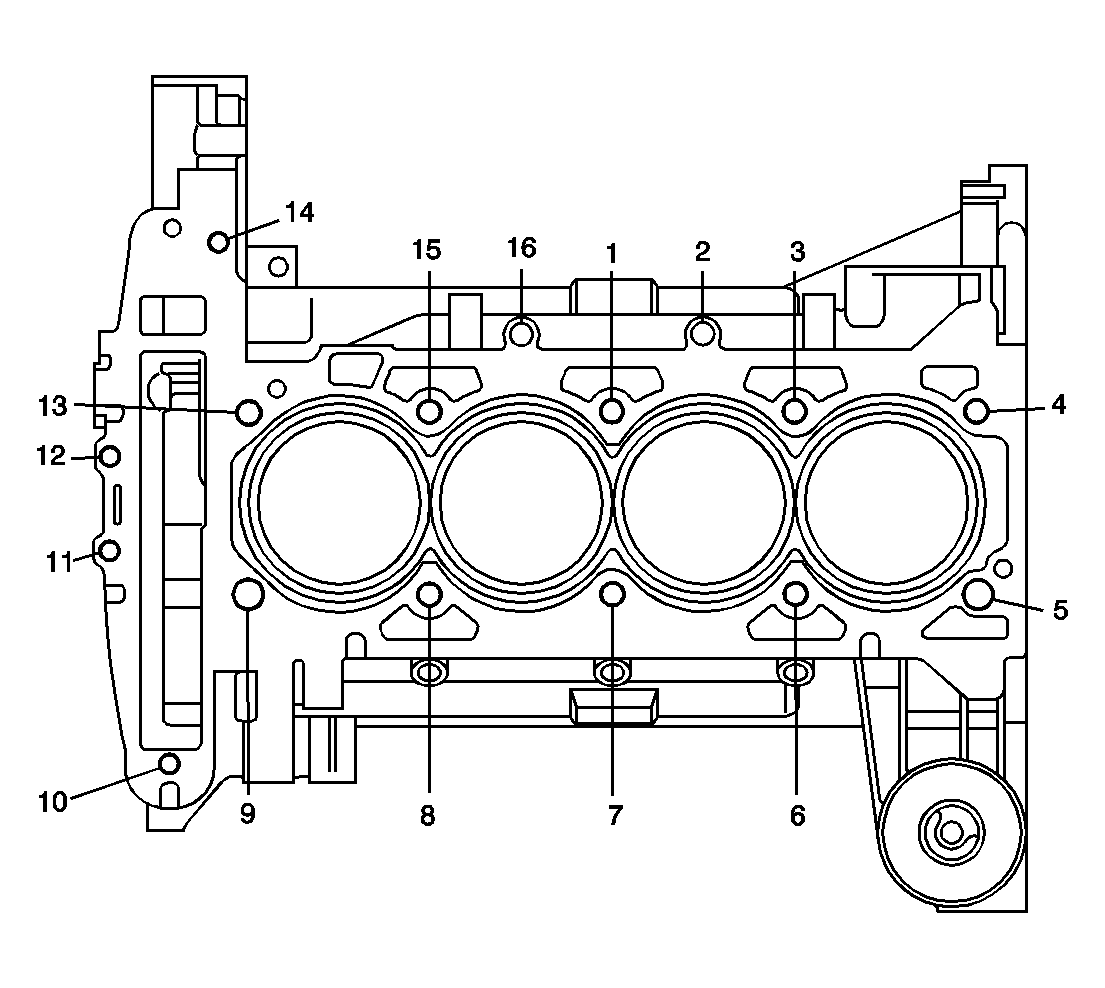

Fig 1: Engine Block - Top View
GM524544Courtesy of GENERAL MOTORS CORP.
Engine Block - Top View

Service Call Out Thread Size Insert Drill Counterbore Tool Tap Driver Drill Depth (Maximum) Tap Depth (Maximum) Engineering Hole Number
J 42385- MM (IN) MM (IN) -
1 M11 x 1.5 507 504 N/A 505 506 113.30 4.461 107.3 4.22 308
2 M12 x 1.75 865 856 857 858 859 13.50 0.531 12.5 0.49 317
3 M11 x 1.5 507 504 N/A 505 506 113.30 4.461 107.3 4.22 309
4 M11 x 1.5 507 504 N/A 505 506 113.30 4.461 107.3 4.22 310
5 M11 x 1.5 507 504 N/A 505 506 113.30 4.461 107.3 4.22 302
6 M11 x 1.5 507 504 N/A 505 506 113.30 4.461 107.3 4.22 305
7 M11 x 1.5 507 504 N/A 505 506 113.30 4.461 107.3 4.22 304
8 M11 x 1.5 507 504 N/A 505 506 113.30 4.461 107.3 4.22 303
9 M11 x 1.5 507 504 N/A 505 506 113.30 4.461 107.3 4.22 301
10 M8 x 1.25 210 206 207 208 209 23.50 0.925 18.5 0.73 313
11 M8 x 1.25 210 206 207 208 209 23.50 0.925 18.5 0.73 311
12 M8 x 1.25 210 206 207 208 209 23.50 0.925 18.5 0.73 312
13 M11 x 1.5 507 504 N/A 505 506 113.30 4.461 107.3 4.22 306
14 M8 x 1.25 210 206 207 208 209 23.50 0.925 18.5 0.73 314
15 M11 x 1.5 507 504 N/A 505 506 113.30 4.461 107.3 4.22 307
16 M12 x 1.75 865 856 857 858 859 13.50 0.531 12.5 0.49 316
