2003 Saturn L300FACTORY OEM SERVICE PROCEDURE
Installation Procedure

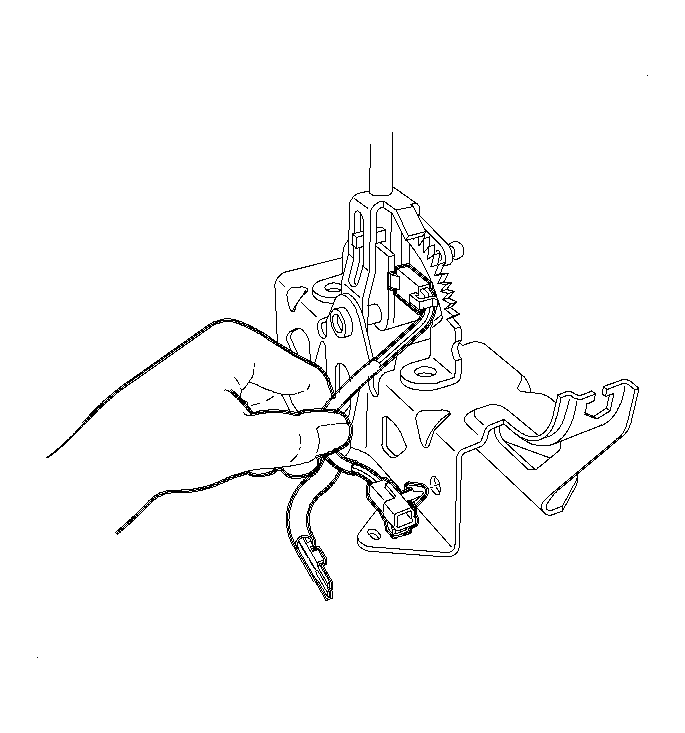

- Install the connector body to the control assembly.
- Install the park lock switch to the control assembly.

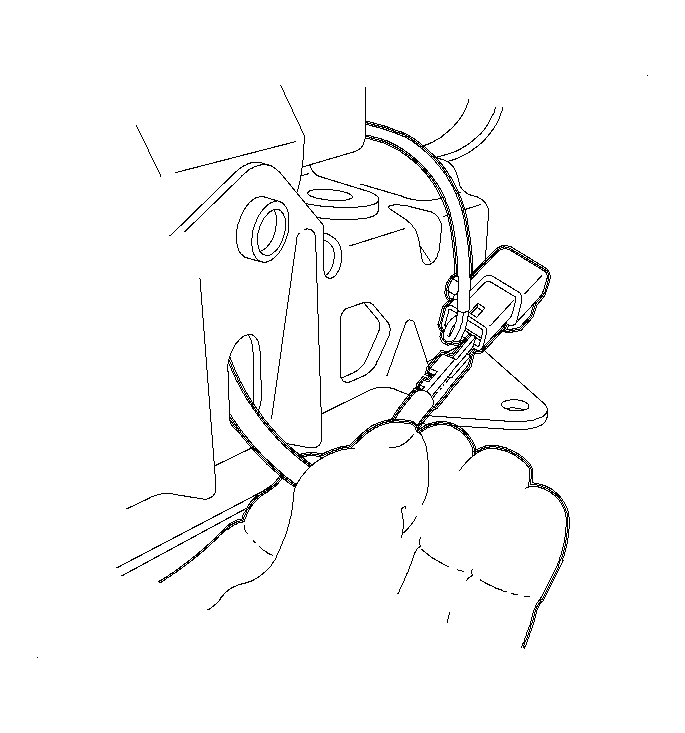

- Insert the shift lock control solenoid electrical terminals into the connector body.
- Install the automatic transaxle control assembly. Refer to Shift Control Replacement in Automatic Transaxle - 4T40-E/4T45-E
- Enable the SIR system. Refer DISABLING & ACTIVATING AIR BAG SYSTEM in Air Bag Restraint Systems.
