2003 Saturn L200 AutomaticFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Disable the SIR System. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in Air Bag Restraint Systems.
- Remove the console. Refer to Console Replacement in Instrument Panel, Gages, and Console.

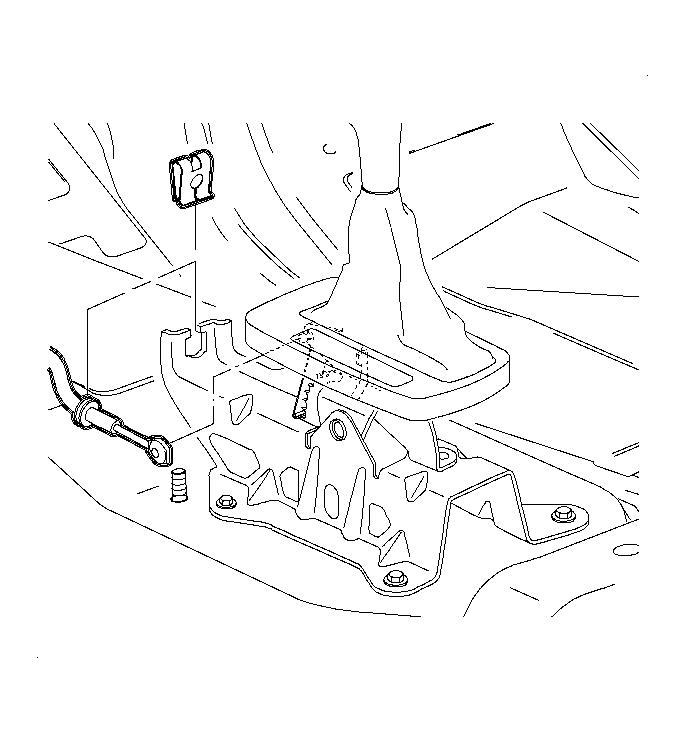

- Using a screwdriver, disconnect the control cable end from the pin on the control assembly.
- Remove the control cable retaining clip.
- Press the tabs on the control cable and remove the cable from the control assembly.

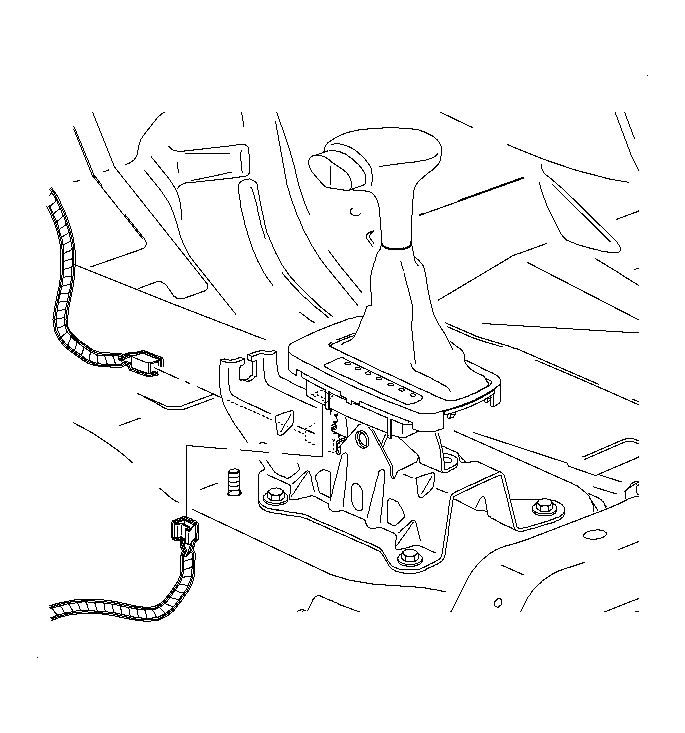

- Disconnect the control assembly electrical connectors.

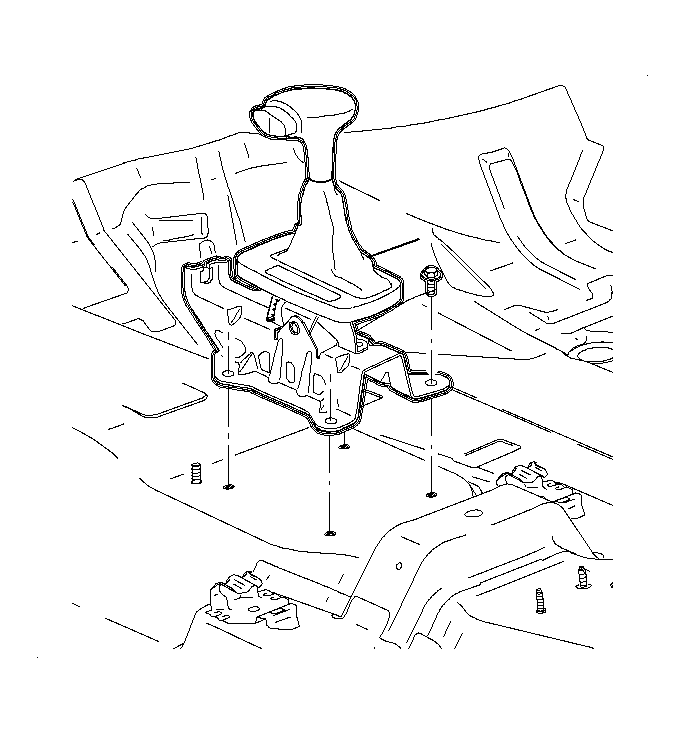

- Remove the control assembly-to-floor pan bolts and remove the control assembly.
- If the shifter control assembly is being replaced, transfer the parts as needed. Refer to the appropriate procedures in this service manual.
