2003 Saturn L200 AutomaticFACTORY OEM SERVICE PROCEDURE

Removal Procedure

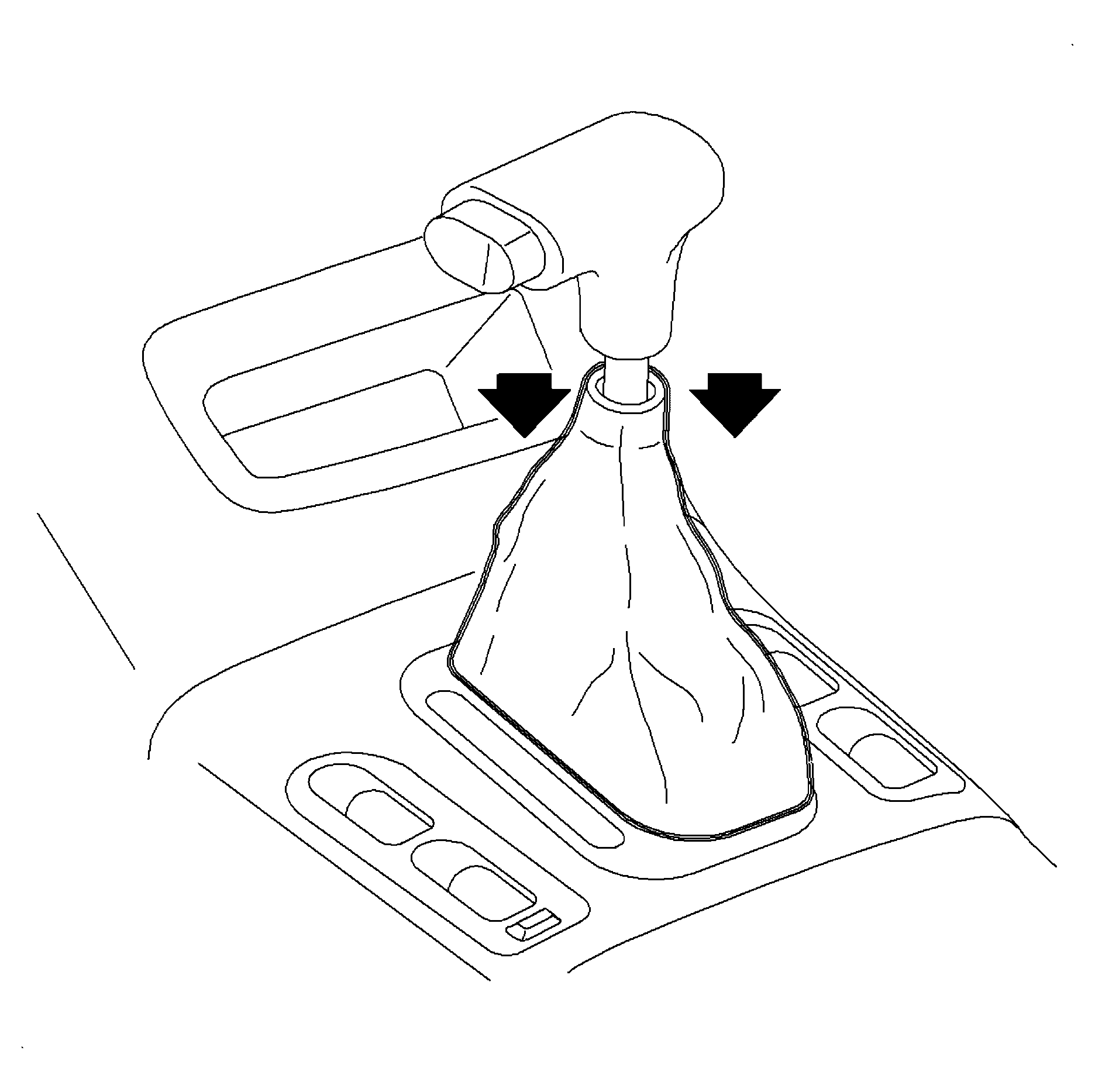

  1. Pull the control assembly boot down to disengage the boot from the knob.
    2. Fig 1: Disengaging Shift Control Boot From Control Lever Knob
    GM893838Courtesy of GENERAL MOTORS CORP.

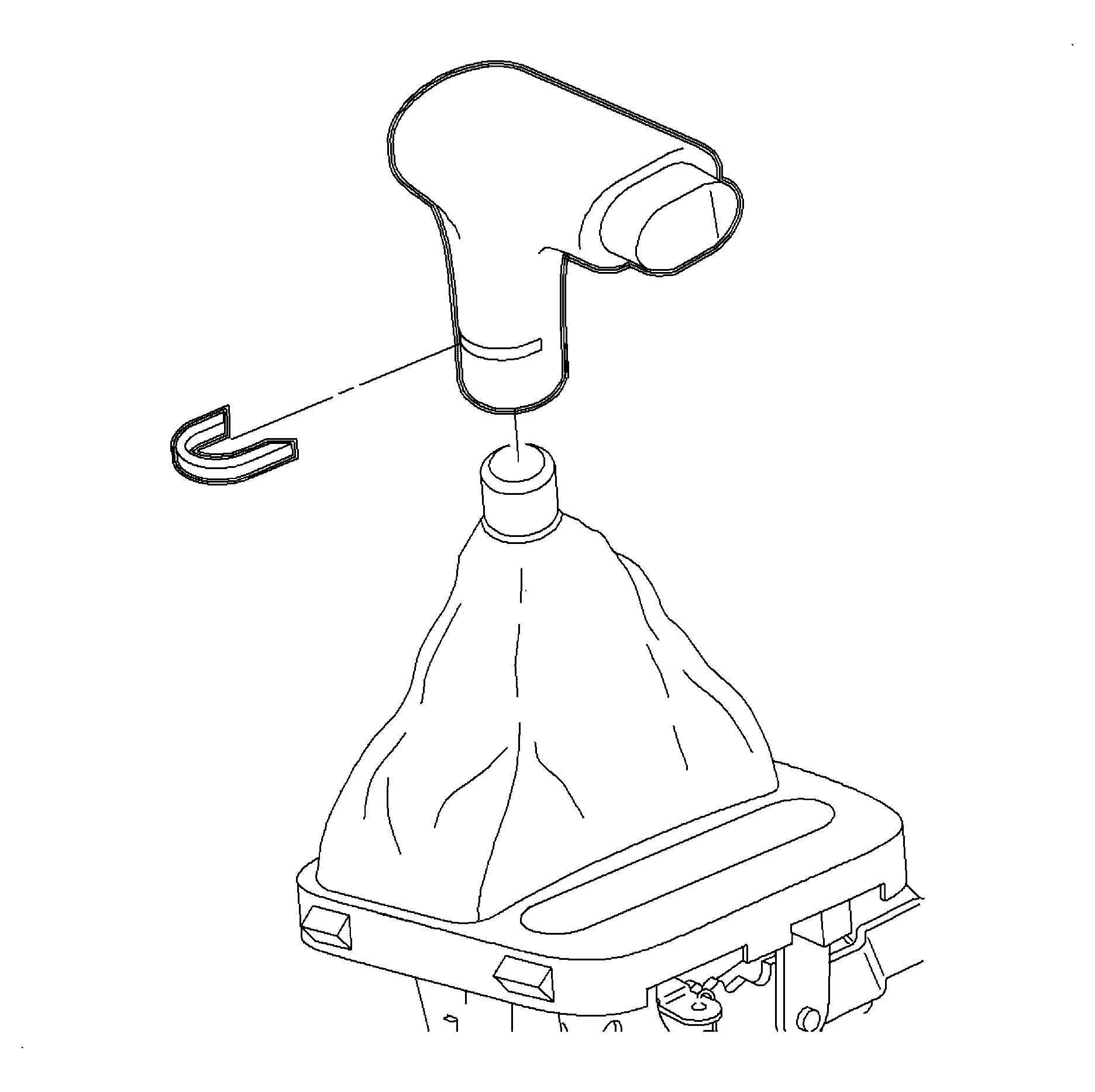

  2. Using a screwdriver, remove the control lever knob retainer. Remove the control lever knob.
    Fig 2: Removing & Installing Control Lever Knob Retainer
    GM893839Courtesy of GENERAL MOTORS CORP.
  3. Pull up on the control boot until the indicator bezel disengages from the console.

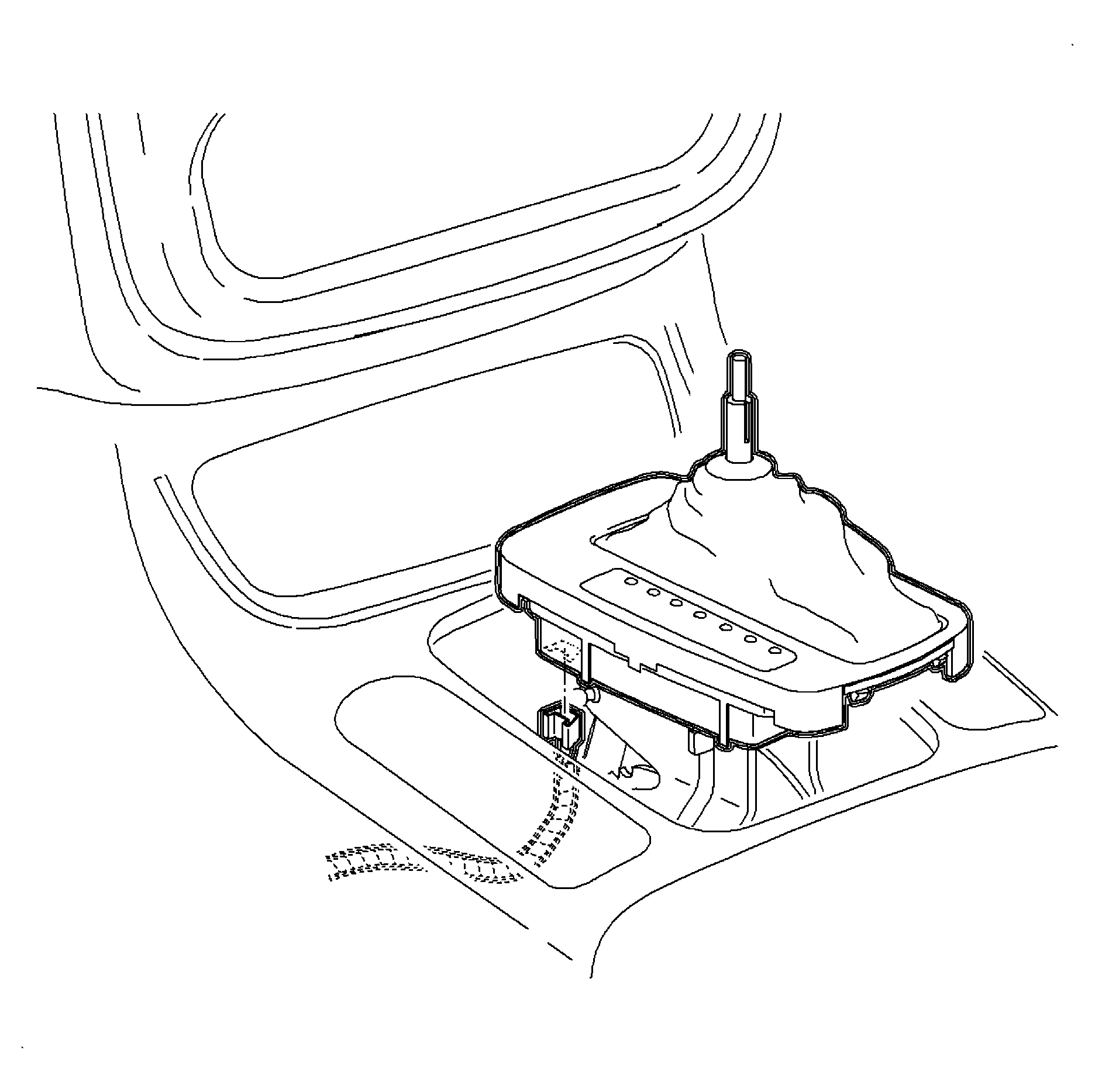

  4. Disconnect the indicator bezel electrical connector. Remove the bezel and boot.
    Fig 3: Removing & Installing Indicator Bezel Electrical Connector
    GM893907Courtesy of GENERAL MOTORS CORP.

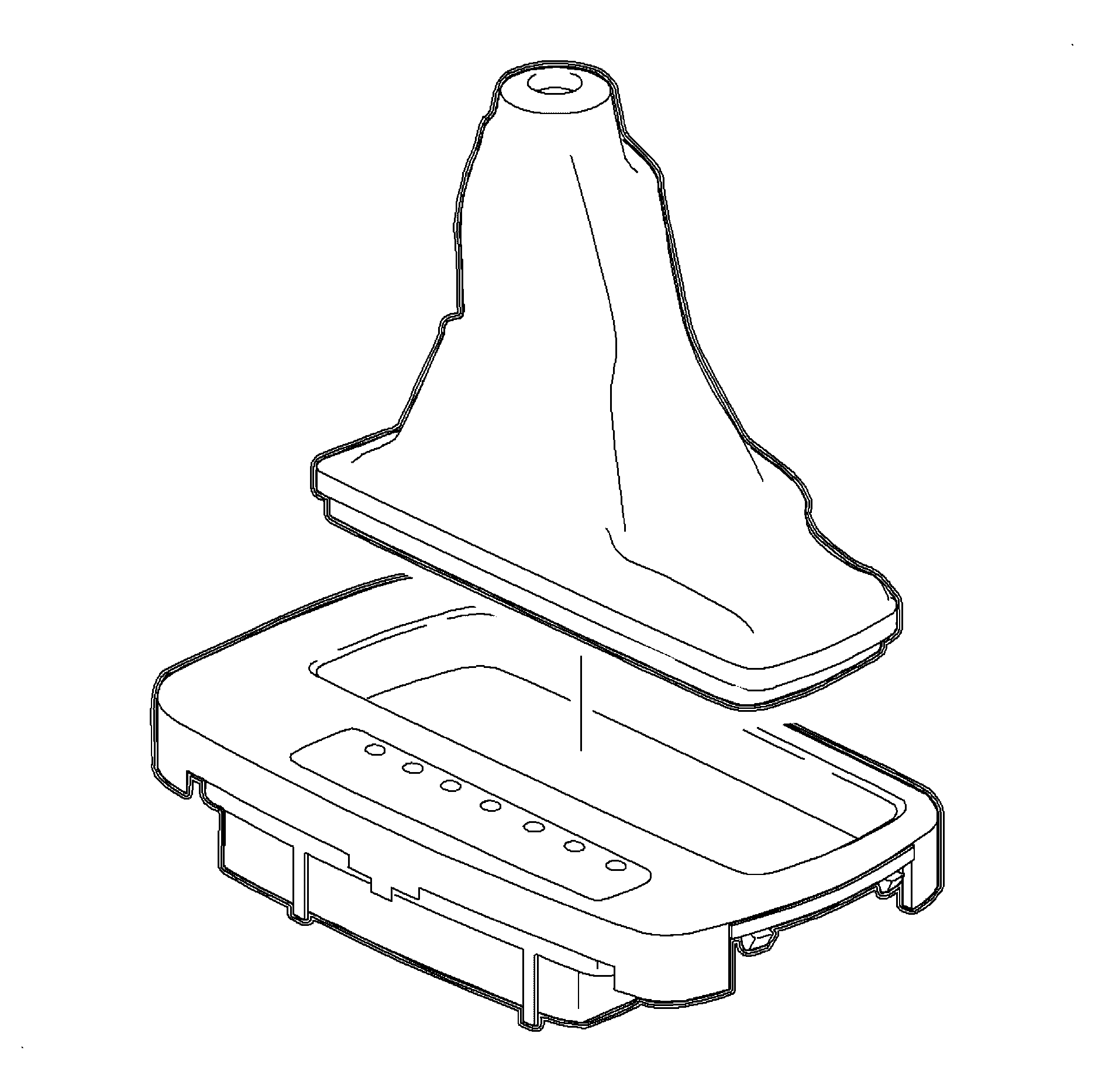

  5. Disengage the control boot from the indicator bezel from the underside of the bezel. Remove the boot.
    Fig 4: Removing & Installing Shift Control Boot
    GM893886Courtesy of GENERAL MOTORS CORP.
