2003 Saturn L200 AutomaticFACTORY OEM SERVICE PROCEDURE

Installation Procedure

  1. Install the control boot into the indicator bezel.
    Fig 1: Removing & Installing Shift Control Boot
    GM893886Courtesy of GENERAL MOTORS CORP.
  2. Install the bezel and boot over the shift lever and connect the indicator bezel electrical connector. Snap the bezel into the console opening.
    Fig 2: Removing & Installing Indicator Bezel Electrical Connector
    GM893907Courtesy of GENERAL MOTORS CORP.
  3. Install the control lever knob and the knob retainer.
    Fig 3: Removing & Installing Control Lever Knob Retainer
    GM893839Courtesy of GENERAL MOTORS CORP.
  4. Install the control assembly boot onto the knob so the O-ring in the top of the boot is seated in the groove on the bottom of the knob.

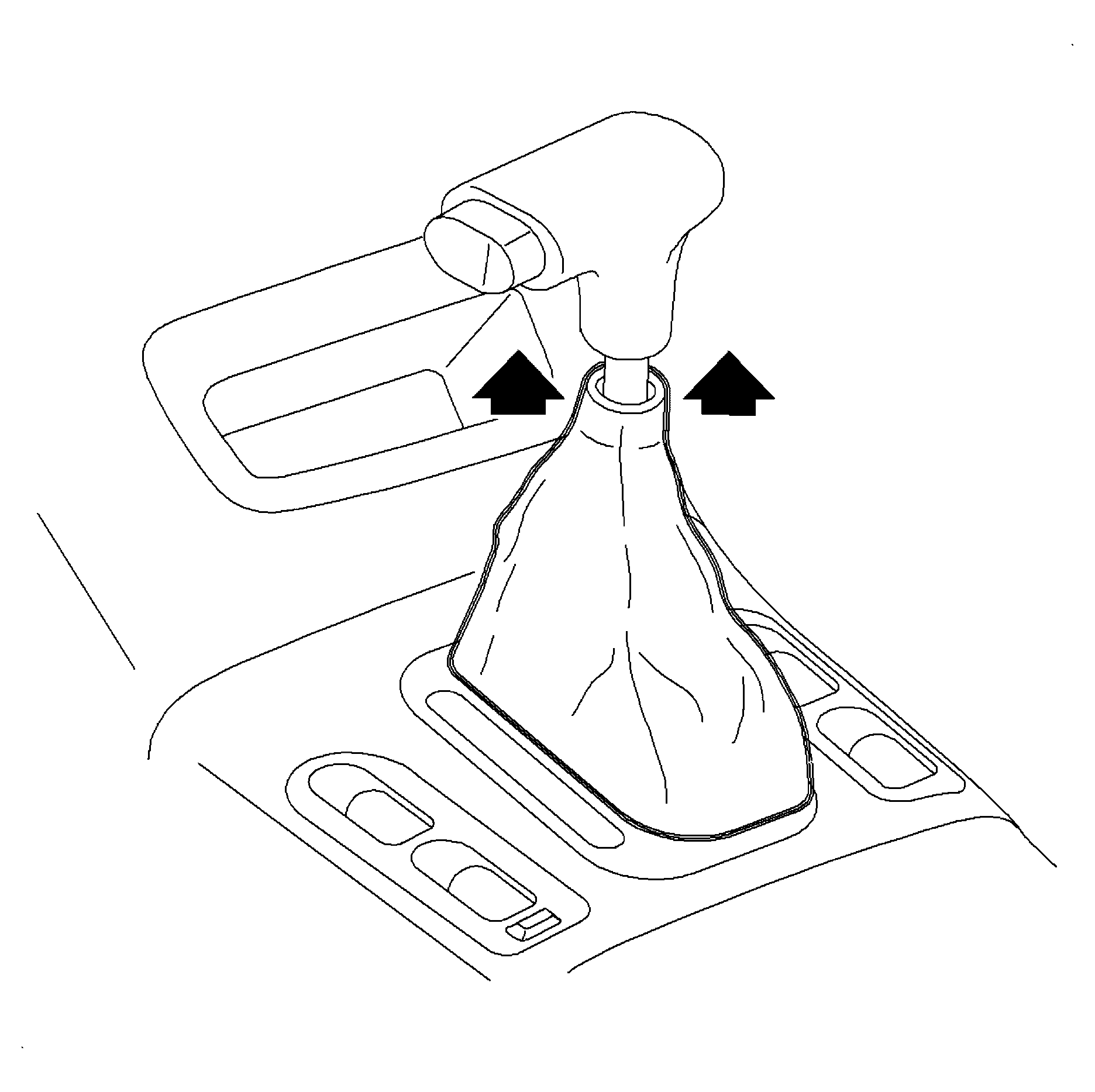

    Fig 4: Installing Shift Control Boot On Control Lever Knob
    GM893840Courtesy of GENERAL MOTORS CORP.
