2003 Saturn L200 AutomaticFACTORY OEM SERVICE PROCEDURE

Installation Procedure

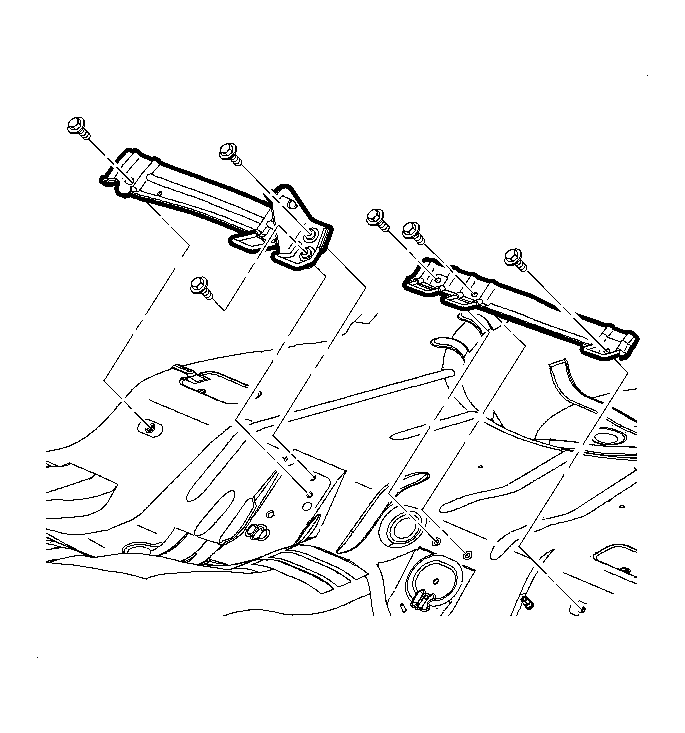

Fig 1: Removing & Installing Child Seat Belt Restraint System Bracket

Courtesy of GENERAL MOTORS CORP.

Position the new brackets to the vehicle.

NOTE: Refer to FASTENER NOTIC in Cautions and Notices.

Install new bracket attaching bolts.
Tighten: Tighten the bolts to 25 N.m (18 lb ft).
Install the rear seat cushion assembly. Refer to Seat Cushion Replacement - Rear in Seats.
