2002 MODEL COVERAGE

MODEL

BODY CODE

ENGINE (RPO CODE) ⁽¹⁾

ENGINE ID

FUEL SYSTEM

IGNITION SYSTEM

Alero

2.2L (L61)

SFI

DIS

.....

3.4L (LA1)

SFI

DIS

Aurora

3.5L (LX5)

SFI

DIS

.....

4.0L (L47)

SFI

DIS

Bonneville

3.8L (L36)

SFI

DIS

.....

3.8L (L67)

SFI ⁽²⁾

DIS

Camaro

3.8L (L36)

SFI

DIS

.....

5.7L (LS1)

SFI

DIS

Cavalier

2.2L (LN2)

SFI

DIS

.....

2.2L (L61)

SFI

DIS

.....

2.2L (LN2/KL6) ⁽³⁾

SFI

DIS

.....

2.4L (LD9)

SFI

DIS

Century

3.1L (LG8)

SFI

DIS

Corvette

5.7L (LS1)

SFI

DIS

.....

5.7L (LS6)

SFI

DIS

DeVille

4.6L (LD8)

TPI-SFI

DIS

.....

4.6L (L37)

TPI-SFI

DIS

Eldorado

4.6L (LD8)

TPI-SFI

DIS

.....

4.6L (L37)

TPI-SFI

DIS

Firebird

3.8L (L36)

SFI

DIS

.....

5.7L (LS1)

SFI

DIS

Grand Am

2.2L (L61)

SFI

DIS

.....

3.4L (LA1)

SFI

DIS

Grand Prix

3.1L (LG8)

SFI

DIS

.....

3.8L (L36)

SFI

DIS

.....

3.8L (L67)

SFI ⁽²⁾

DIS

Impala

3.4L (LA1)

SFI

DIS

.....

3.8L (L36)

SFI

DIS

Intrigue

3.5L (LX5)

SFI

DIS

LeSabre

3.8L (L36)

SFI

DIS

Malibu

3.1L (LG8)

SFI

DIS

Monte Carlo

3.4L (LA1)

SFI

DIS

.....

3.8L (L36)

SFI

DIS

Park Avenue

3.8L (L36)

SFI

DIS

.....

3.8L (L67)

SFI ⁽²⁾

DIS

Prizm

1.8L (LV6)

SFI

DIS

Regal

3.8L (L36)

SFI

DIS

.....

3.8L (L67)

SFI ⁽²⁾

DIS

Saturn ("L" Series)

2.2L (L61)

SFI

DIS

.....

3.0L (L81)

SFI

DIS

Saturn ("S" Series)

1.9L (L24)

SFI

DIS

.....

1.9L (LL0)

SFI

DIS

Seville

4.6L (LD8)

TPI-SFI

DIS

.....

4.6L (L37)

TPI-SFI

DIS

Sunfire

2.2L (LN2)

SFI

DIS

.....

2.2L (L61)

SFI

DIS

.....

2.4L (LD9)

SFI

DIS

⁽¹⁾	Engine code is stamped on engine block. See ENGINE CODE LOCATION .

⁽²⁾	Supercharged engine.

⁽³⁾	Flex-fuel engine.

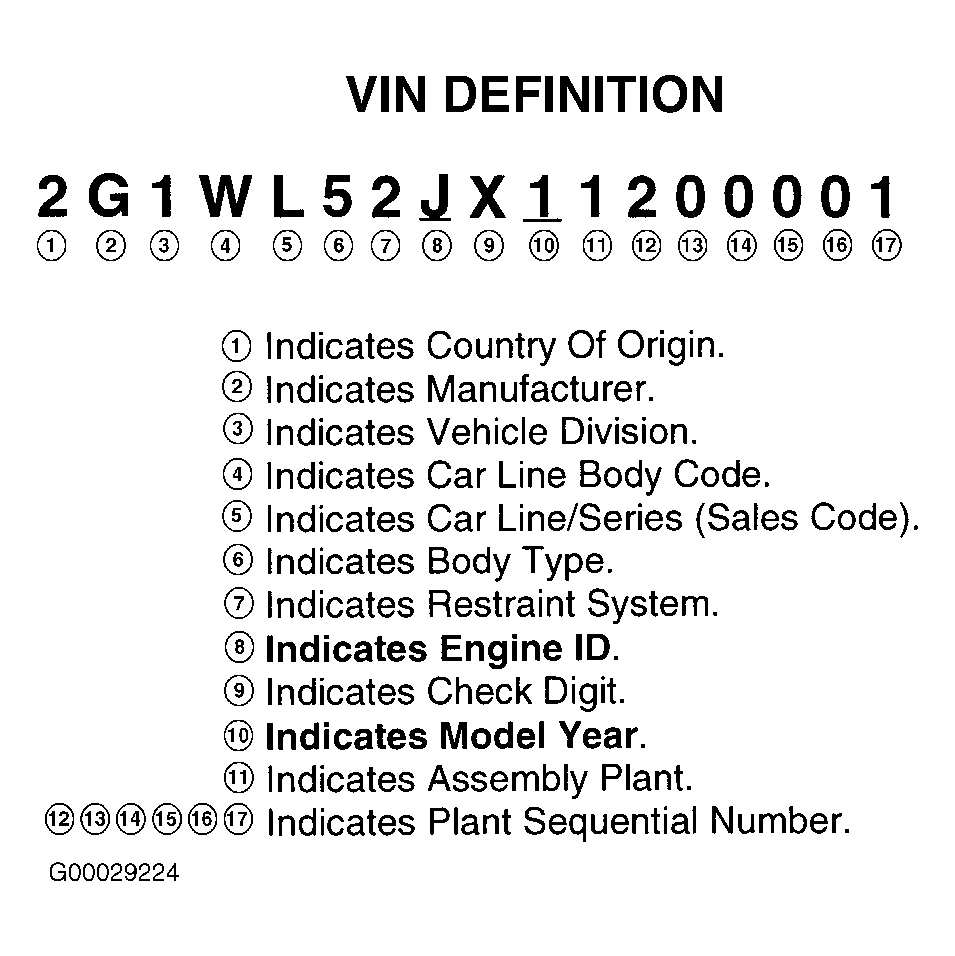

Fig 1: VIN Character Position & Definition

Courtesy of GENERAL MOTORS CORP.
