2002 Saturn LW300FACTORY OEM SERVICE PROCEDURE
Fuel Pump Module: Installation
- Install fuel level sender onto fuel pump. (Refer to SENDER UNIT AND FLOAT .)

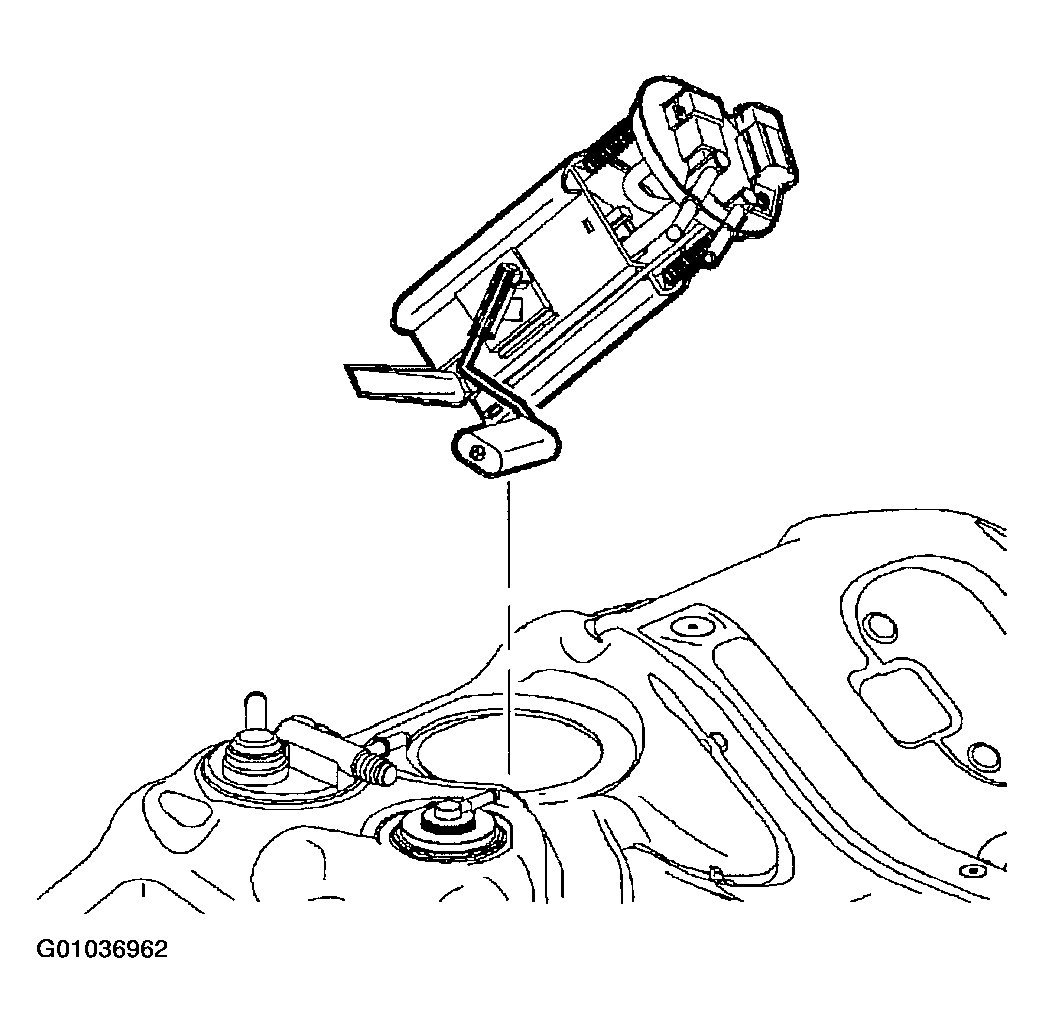

- Install new fuel pump with level sender and new fuel pump-to-tank seal. Ensure that orientation tabs are aligned.

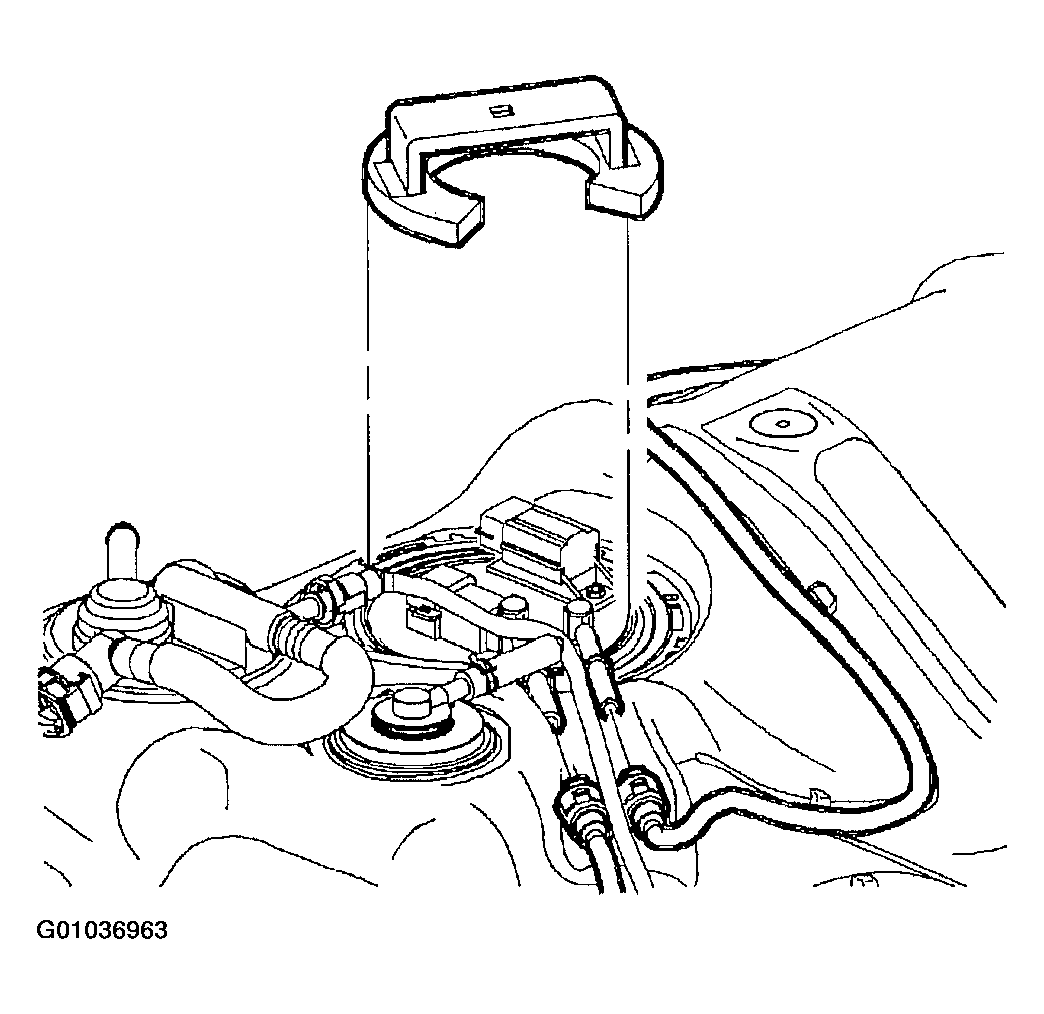

- Use Fuel Tank Lock Ring Remover (SA9156E) to install fuel pump lock ring.
