2002 Saturn L200 AutomaticFACTORY OEM SERVICE PROCEDURE
Control Assembly: Installation
- Install control assembly into vehicle and install control assembly-to-floor pan bolts. See Fig 3 . Tighten control assembly to floor pan bolts to 71 INCH lbs. (8 N.m).
- Connect control assembly electrical connectors. See Fig 2 . Connect control cable to pin on control assembly. Secure control cable into control assembly by pushing into place.

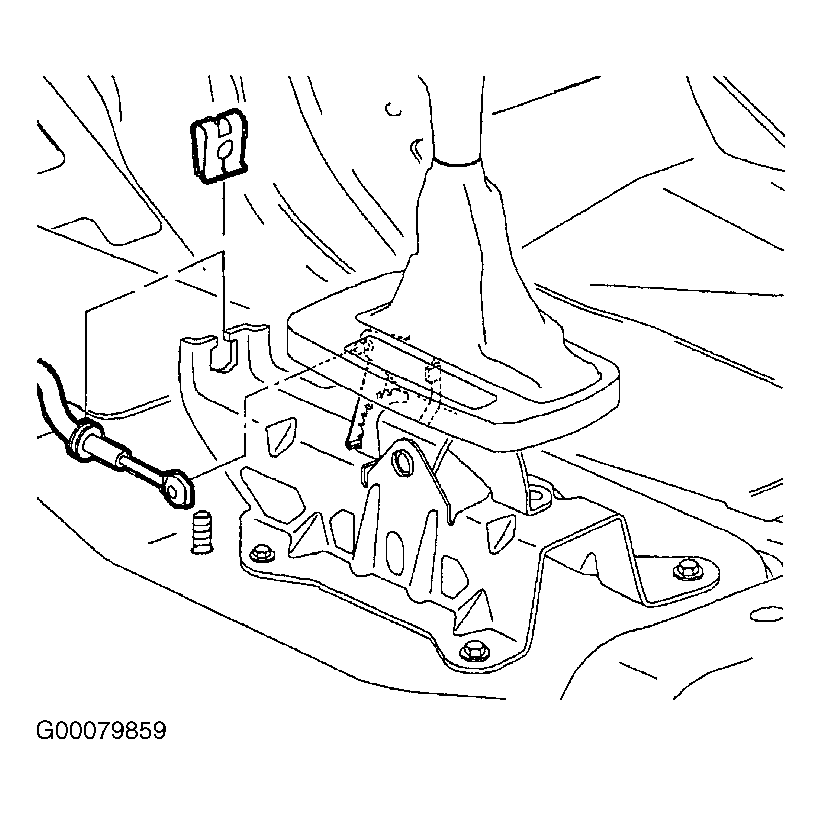

- Install control cable retaining clip. See Fig 1 . Install console. See FLOOR CONSOLE . Enable the SIR system. See AIR BAG DEACTIVATION PROCEDURES article in GENERAL INFORMATION.
