2002 Saturn L100FACTORY OEM SERVICE PROCEDURE
Body Control Module: Installation
- Install glove compartment bin partially into opening.

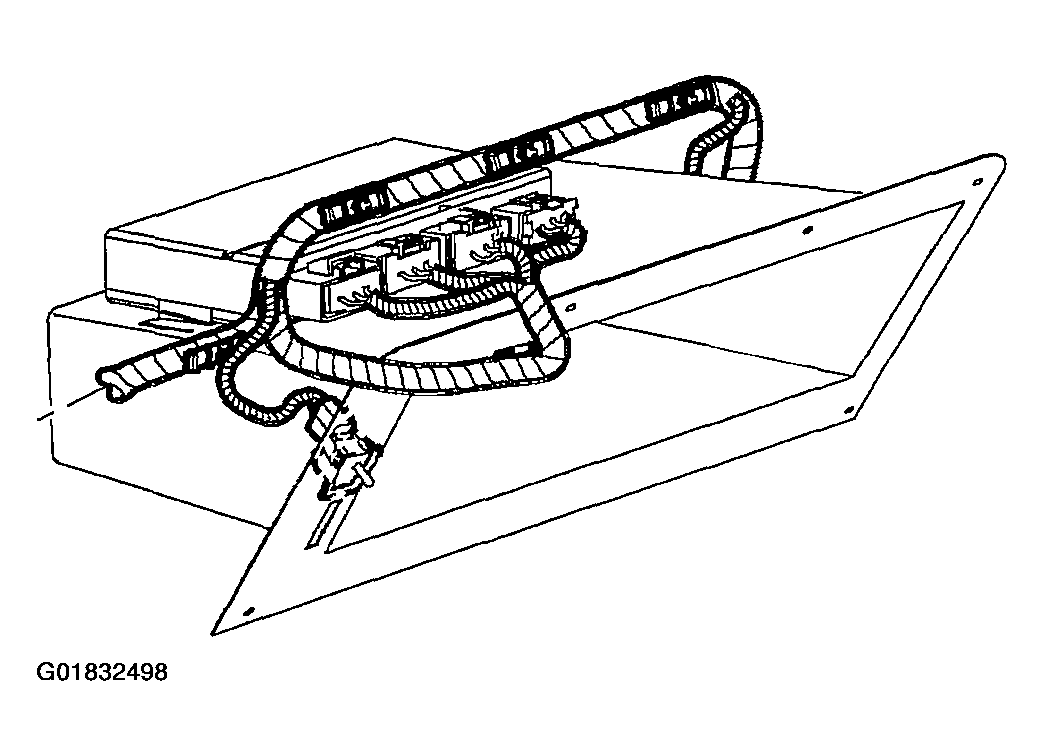

- Secure BCM to glove compartment bin slots.
- Install BCM harness connectors.

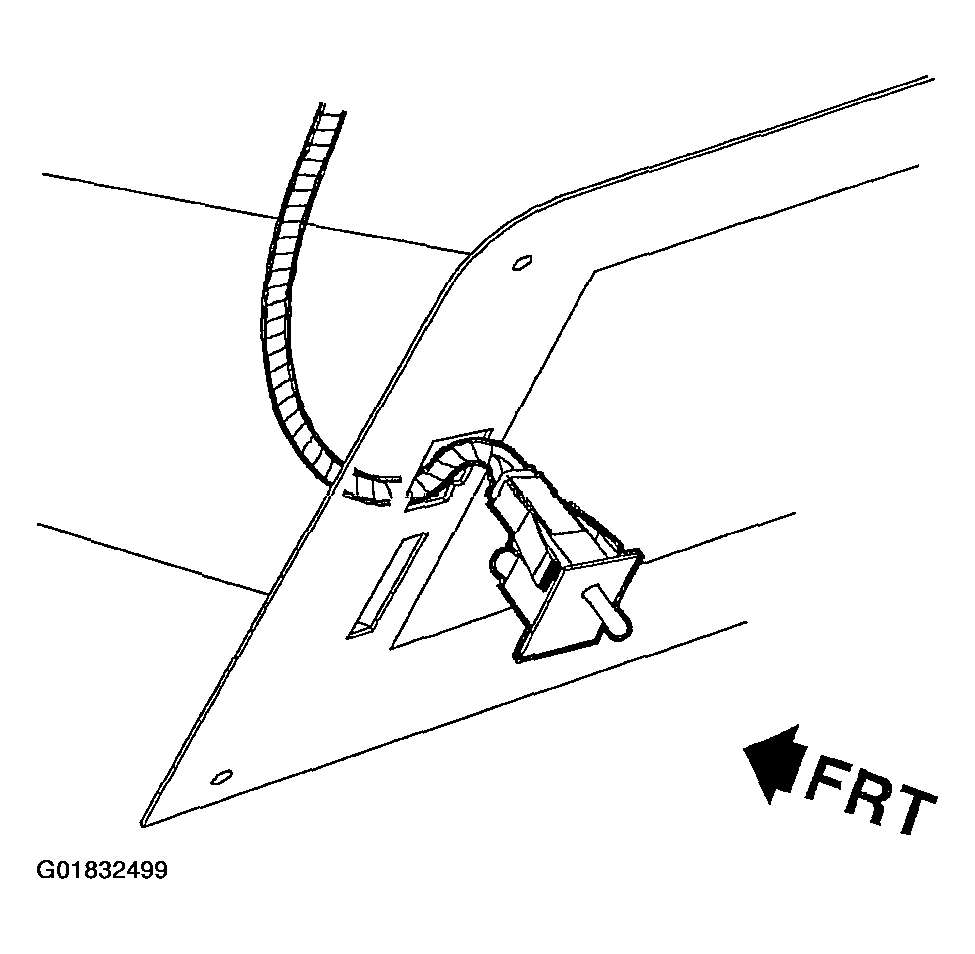

- Route glove box lamp wiring harness through lamp opening and connect glove compartment lamp wiring harness to glove compartment lamp.
- Snap lamp into glove compartment bin.

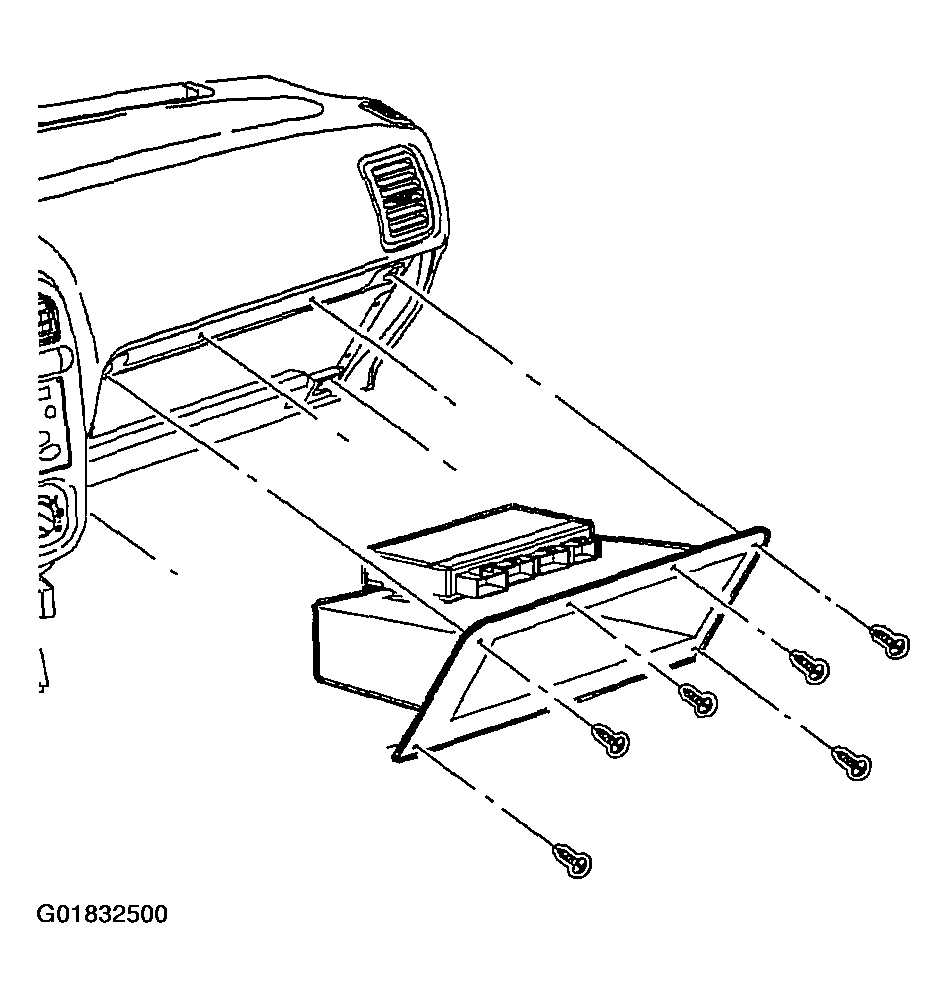

- Install glove compartment bin to I/P with fasteners. Tighten glove compartment bin-to-I/P fasteners to 2.5 N.m (22 in-lbs).

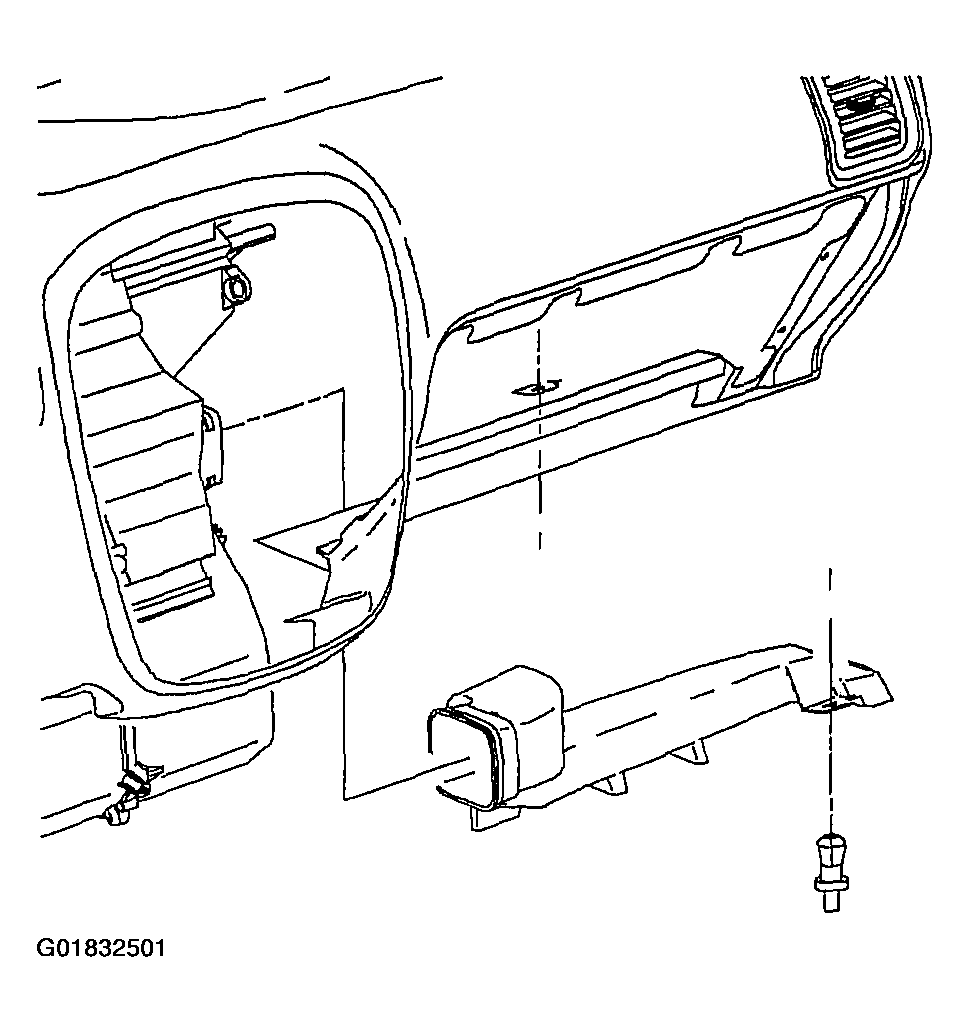

- Install right side heater outlet with retainer to glove compartment bin.

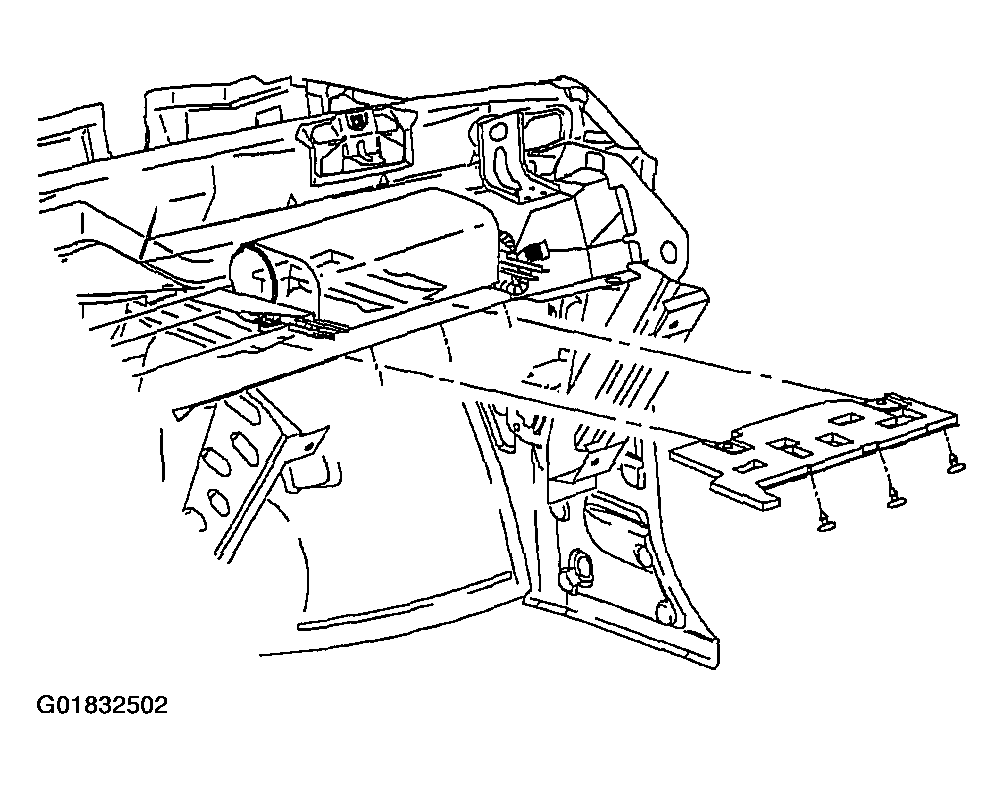

- Install right side lower I/P closeout panel (hush panel) with retainers.
- Operate glove compartment lamp and glove compartment door to ensure proper operation.

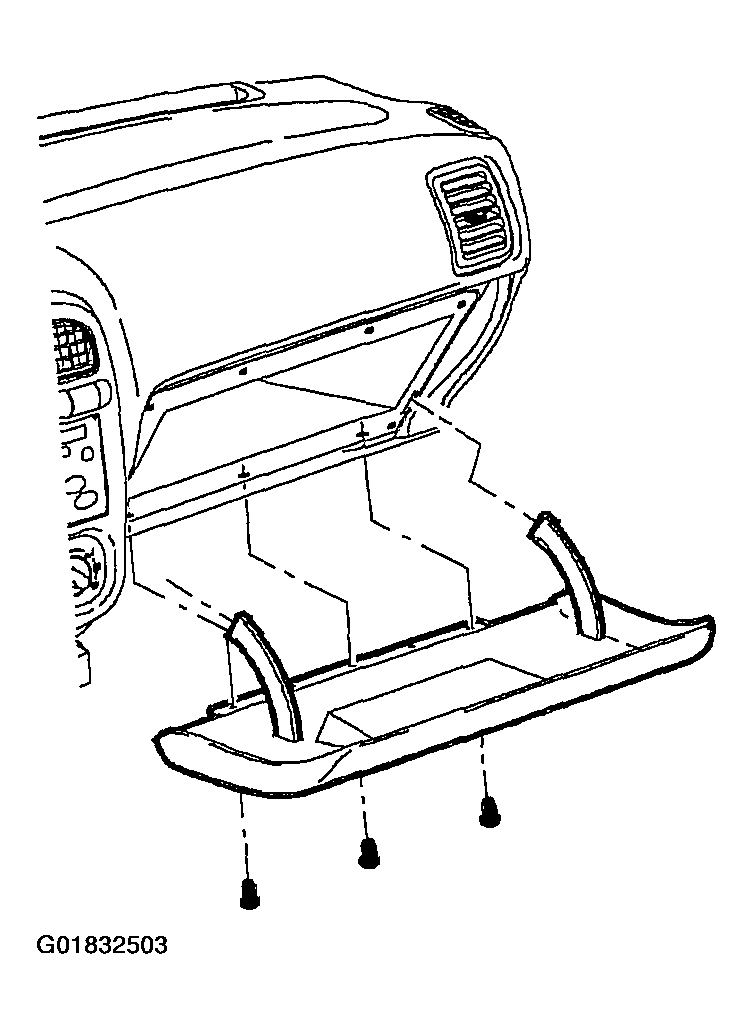

- Install glove compartment door with fasteners. Tighten glove compartment door outer cover fasteners to 2 N.m (18 in-lbs).
