2001 Saturn SC1 L4-1.9L SOHC VIN 8FACTORY OEM SERVICE PROCEDURE

Ignition Module/Passlock Sensor

IGNITION MODULE/PASSLOCK SENSOR

REMOVAL

NOTE: Cover driver seat to protect seat trim.

IMPORTANT: If ignition module/passlock sensor is replaced, Passlock relearn procedure must be performed.

1. Disable the SIR system.
2. Remove SIR coil assembly.

NOTE: Protect front of console from being damaged by steering column filler panel.

Factory service manual diagram

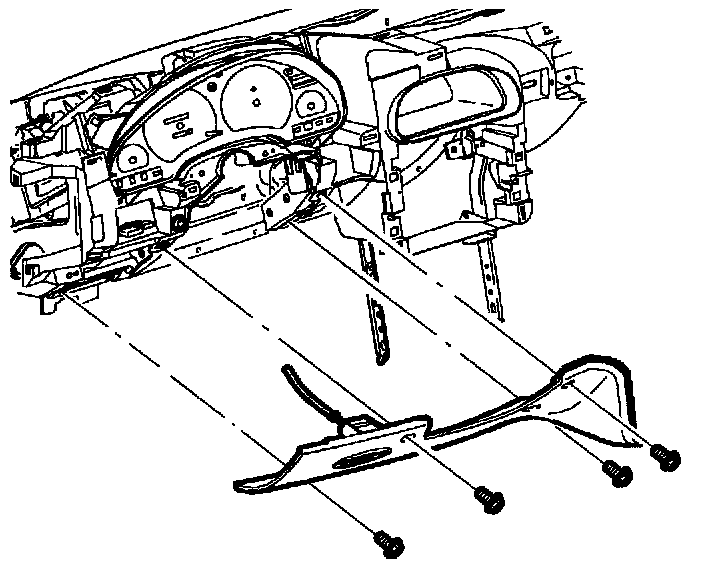

3. Pull steering column filler panel assembly forward and set down.

Factory service manual diagram



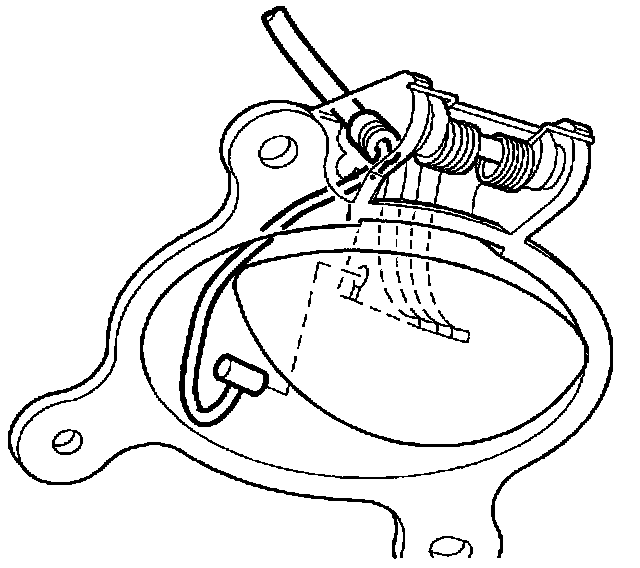

4. Disconnect cable from filler panel. Pull hood release handle forward. Feed cable under hood release handle and slide pin out. Remove steering column filler panel.

Factory service manual diagram

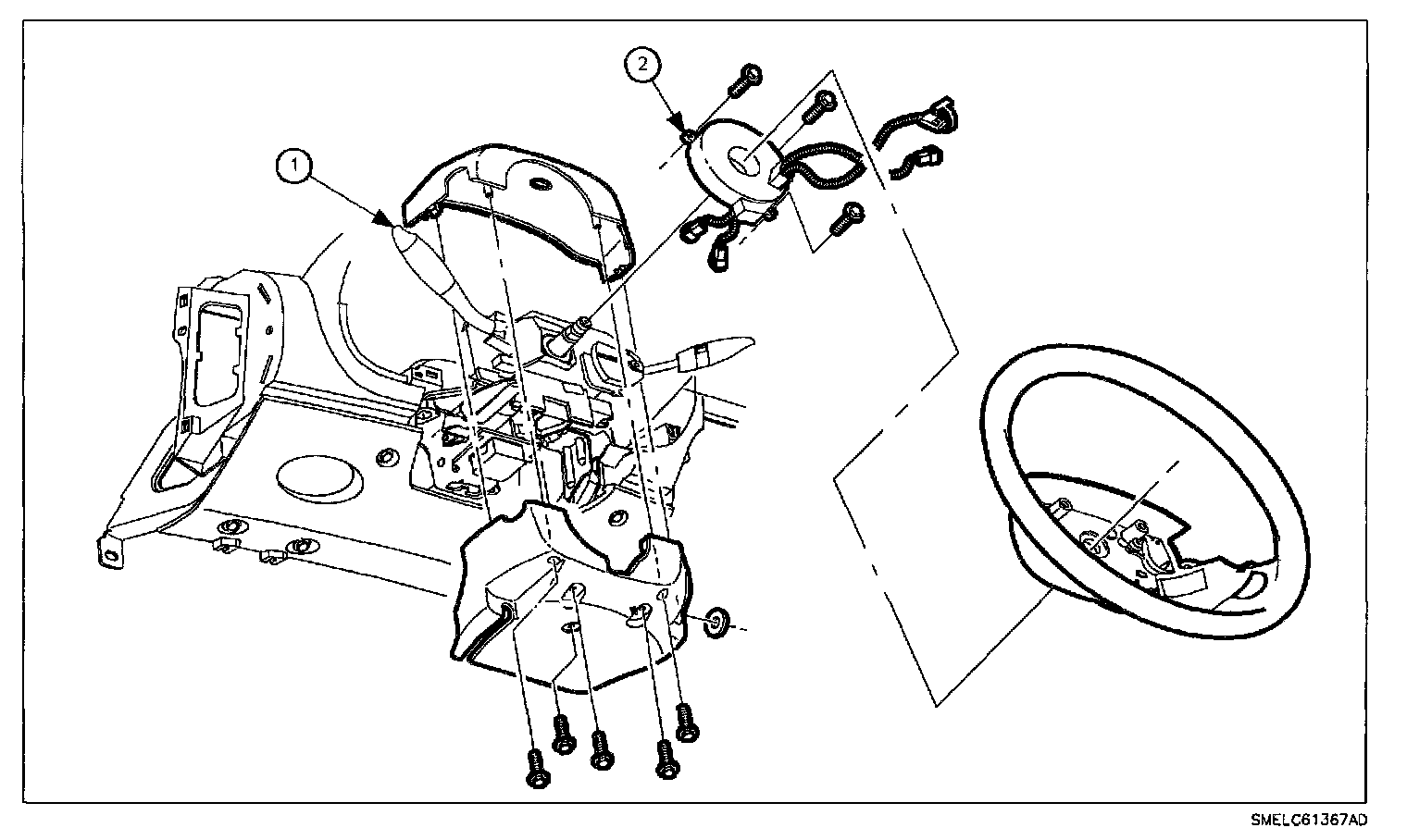

5. Remove connector position assurance (CPA) retainer and disconnect connectors from lever control switch.
6. With SIR system disabled, remove lever control switch.
7. Disconnect ignition switch electrical connector at right steering column upper support bracket.
8. On vehicles with automatic transaxles, disconnect park lock cable from ignition module.
9. Disconnect passlock sensor connector from ignition module.

Factory service manual diagram

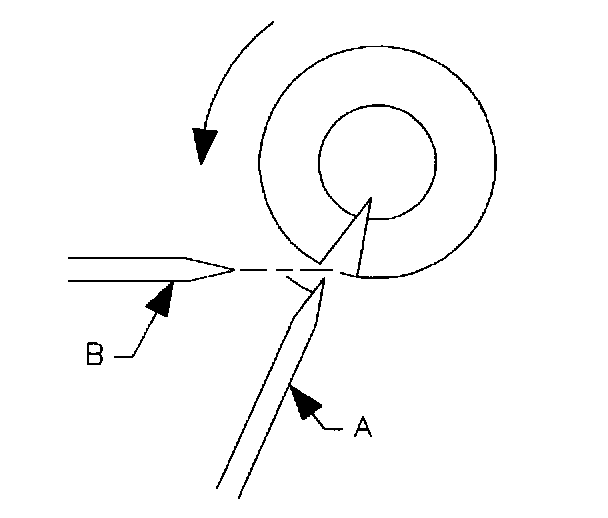

10. Remove ignition module shear bolts.
10.1 Use a hammer and chisel to bite into shear bolt head at a position offset from it's center.
10.2 Tap the chisel to rotate the bolt and loosen it.
10.3 Repeat until bolt is loose enough to remove.
11. Remove ignition module assembly from steering column.

INSTALLATION

Factory service manual diagram

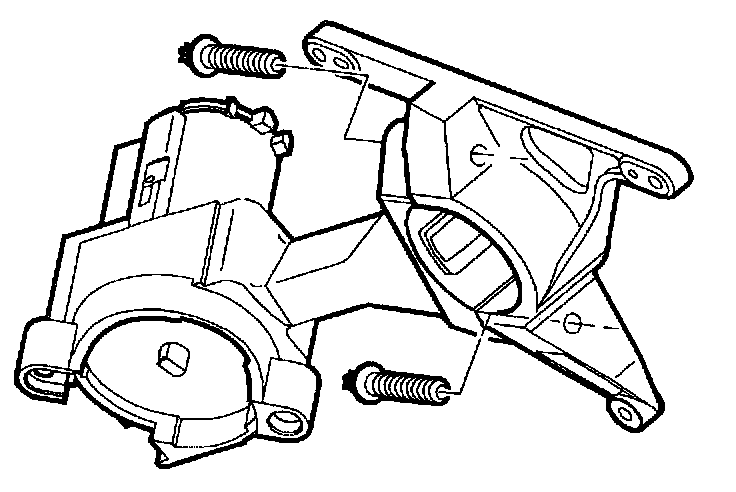

1. Use new shear bolts to install ignition module assembly on steering column. Torque shear bolts until heads break off.
2. Install harness clamps on steering column.
3. Connect passlock sensor connector to ignition module.
4. On vehicles with automatic transaxles, connect park lock cable to ignition module.
5. Reconnect passlock sensor connector to ignition module.

Factory service manual diagram



6. Install lever control switch by fitting into bottom locating holes on ignition module.
7. Connect connectors to lever control switch. Install connector position assurance (CPA) retainers.
8. Connect ignition switch electrical connector at right steering column support bracket bolt.

Factory service manual diagram



9. Pull hood release handle forward. Feed cable under hood release handle and slide pin in. Connect cable to filler panel.

Factory service manual diagram



10. Install steering column filler panel and DLC.
11. Install and torque screws.

Torque:
Steering Column Filler Panel Fasteners: 2.2 N.m (19 in-lbs)


Factory service manual diagram



12. Install SIR coil assembly.
13. Enable SIR system.
