2000 Saturn SW2 AutomaticFACTORY OEM SERVICE PROCEDURE
Park Lock Cable: Installation
- Install the new park lock cable. See Fig 5 . Route cable around HVAC module fin.
- Route cable through accelerator pedal bracket retainer clip. See Fig 6 .
- Install park lock cable fitting end to control base assembly. See Fig 4 . Ensure to seat fitting completely. Attach park lock cable end terminal to plastic lock-out lever on the control assembly.

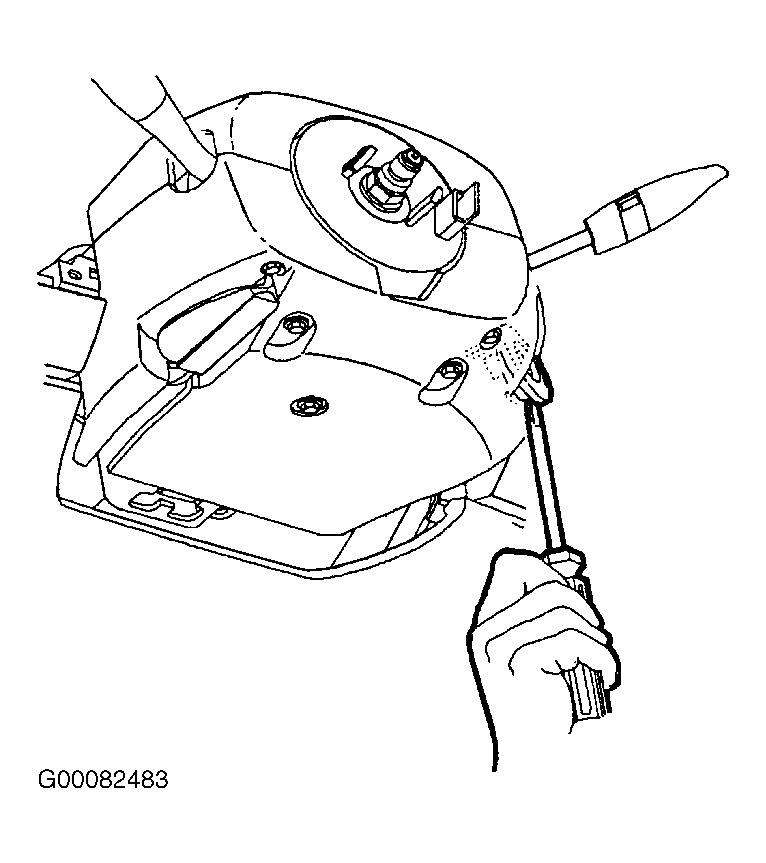

- Snap park lock cable assembly onto ignition module. See Fig 7 . Install lower column cover, top column cover, and fasteners. Install ignition switch bezel. See Fig 1 .
- Align peg of ignition bezel with cut-out in lower shroud. Snap into place.
- Adjust the park lock cable assembly. See PARK LOCK CABLE under ADJUSTMENTS. Install console. See FLOOR CONSOLE . Enable the SIR system. See AIR BAG DEACTIVATION PROCEDURES article in GENERAL INFORMATION.
NOTE:
The ignition key must be in the ACC position when installing the ignition cylinder into the ignition module.
